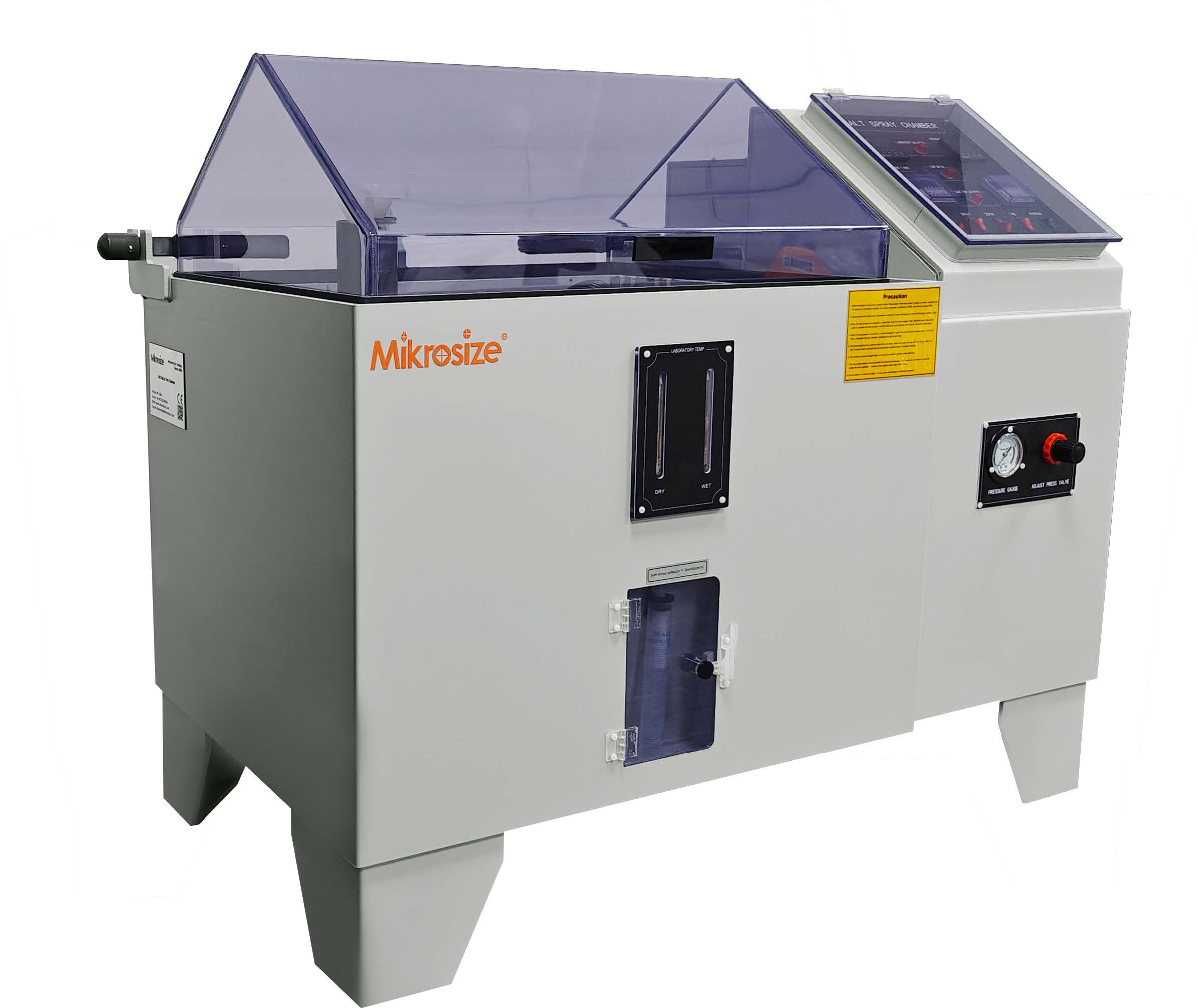

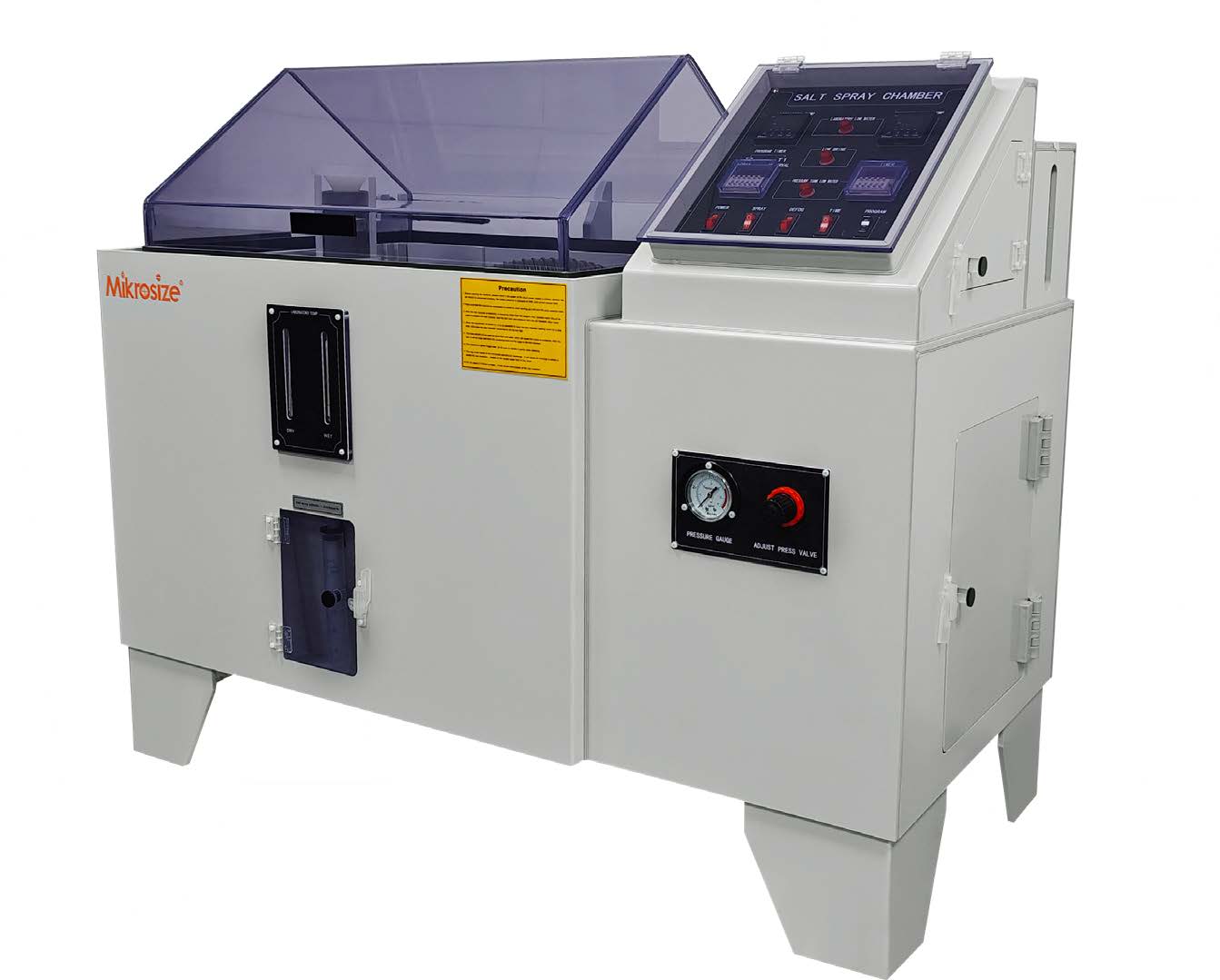

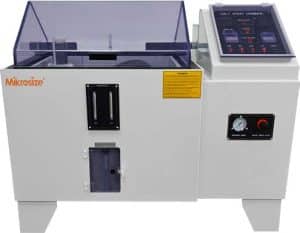

MS-60M/90M/120A Salt Spray Test Chamber

Scan QR

×

Scan QR Code

https://mikrosize.com/product/ms-60m-90m-120a-salt-spray-test-chamber/

Product Features

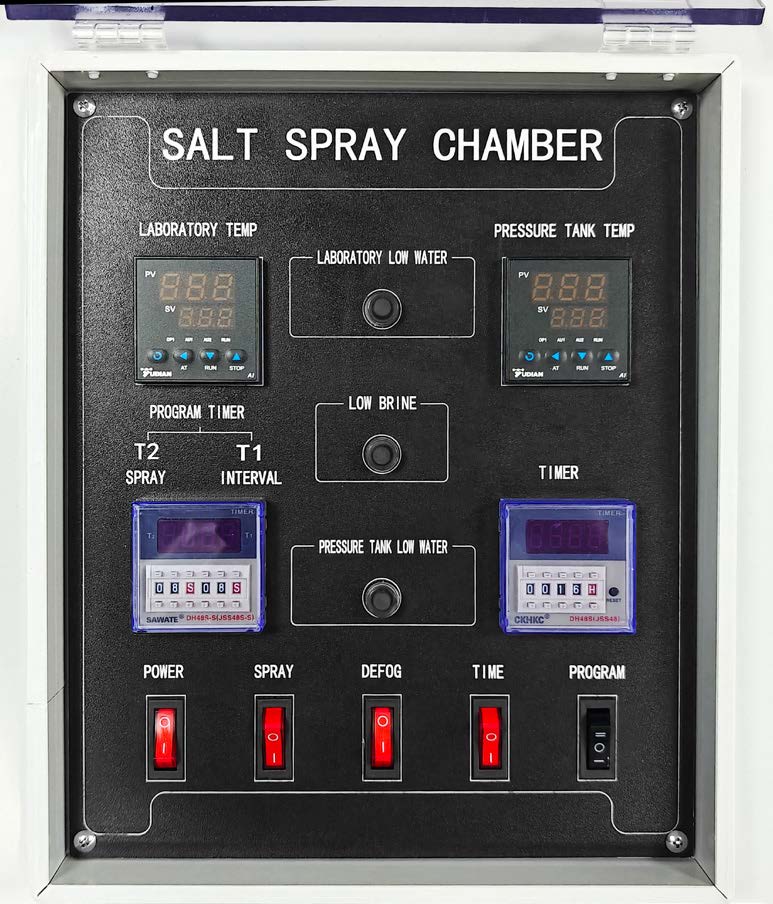

• Keypad operation
• Automatic lid opening (optional) and manual lid opening
• Customizable working chamber dimensions
• Laboratory chamber constructed from 5 mm thick PVC sheet, heat resistant up to 80℃
• Transparent sealing cover adopts 6 mm thick impact-resistant acrylic sheet for clear specimen observation
• Equipped with a high-pressure resistant PP barrel offering superior thermal insulation

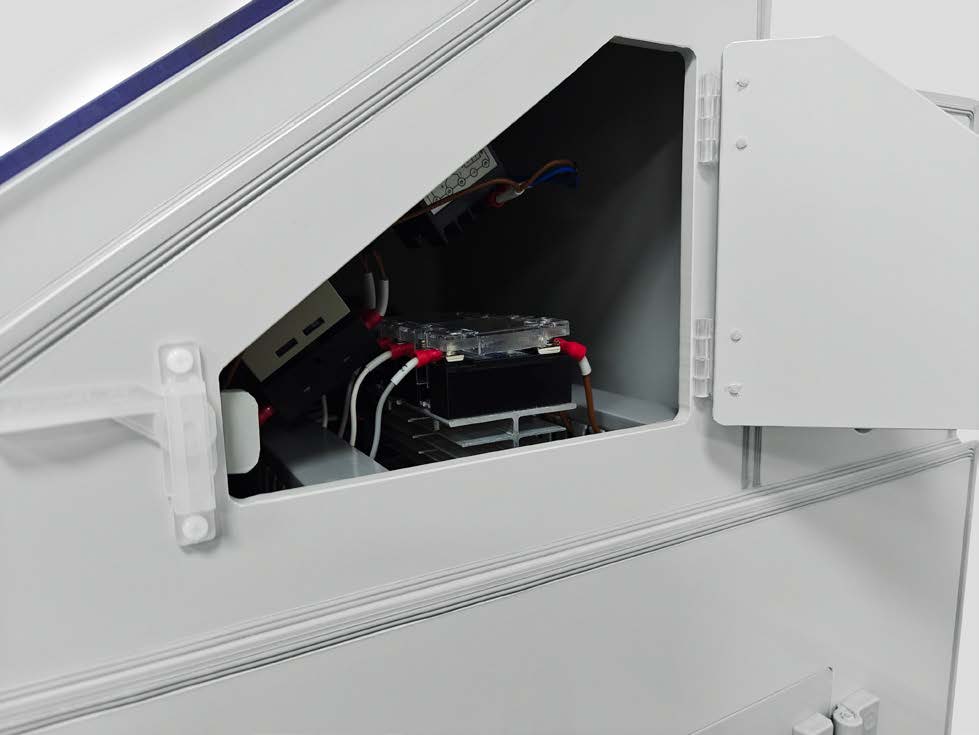

• Heating system utilizes imported stainless steel finned heat dissipation tubes and U-type electric heaters for air heating

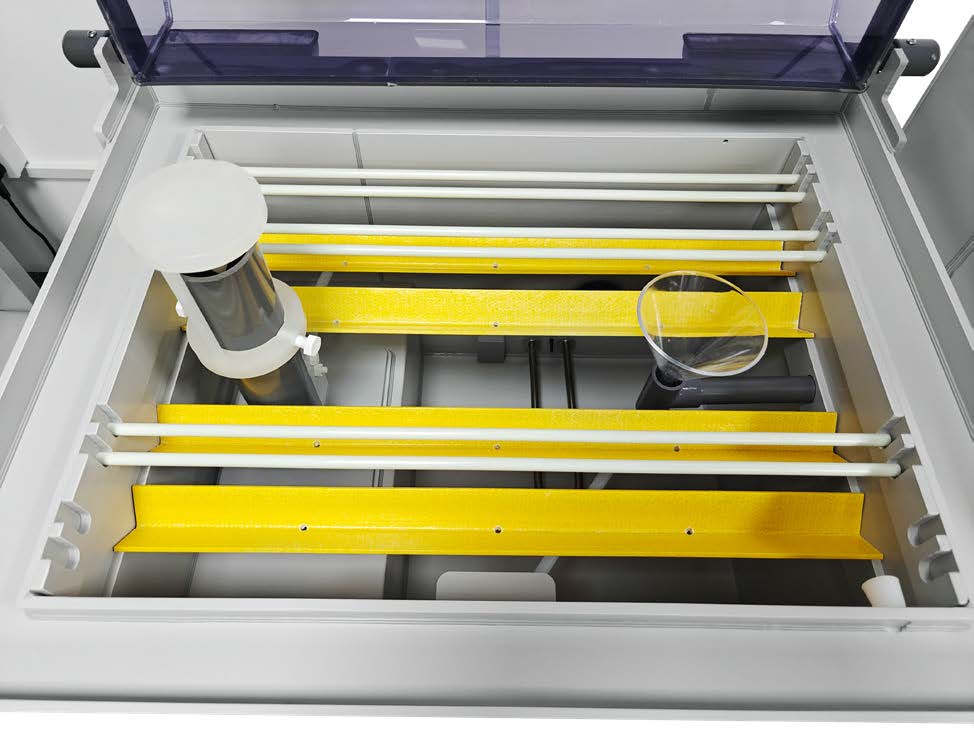

• Flat indexing sample rack with freely adjustable angles to ensure uniform fog deposition across all specimens

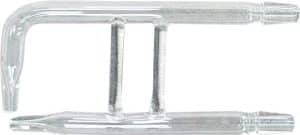

• Specialized glass nozzle with adjustable spray volume and angle
• Uniform salt-spray atomization designed to prevent crystal precipitation clogging

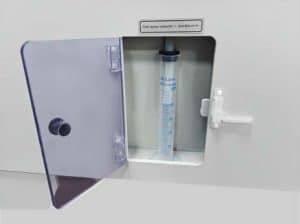

• Automatic water replenishment system with low-water-level refilling functionality
• Digital display PID temperature controller with high precision (error within ±0.3℃)
• Liquid-expansion safety temperature controller for heating tank and saturation air barrel (0–120℃)
• Digital display timer: 0.1s–9990h
• Illuminated rocker lock switch rated for up to 20,000 switching cycles
• Supports three standardized test methods: Neutral Salt Spray (NSS), Acetic Acid Salt Spray (AASS/ACSS), and Copper-Accelerated Salt Spray (CASS)
• Multiple safety protections: auto power-off on low water level, over-temperature protection, and warning light alarms
• Compliant with international standards: GB/T 2423, GB/T 10587, GB/T 12967, GB/T 10125, ISO 9227, ASTM B117, etc.

Product Applications

• Automotive parts:
  Test performance variations in critical components (such as engine brackets and chassis bolts) exposed to corrosive rainwater and de-icing road salts to ensure service life and structural integrity.
• Electrical and electronic products:
  Verify that electronic components and assemblies maintain proper conductivity and function without short circuits or contact failures in coastal, marine, and high-humidity industrial environments.
• Hardware and electroplated products:
  Assess the corrosion resistance of hardware fasteners and coatings to rapidly evaluate the protective efficacy and quality of surface plating treatments.
