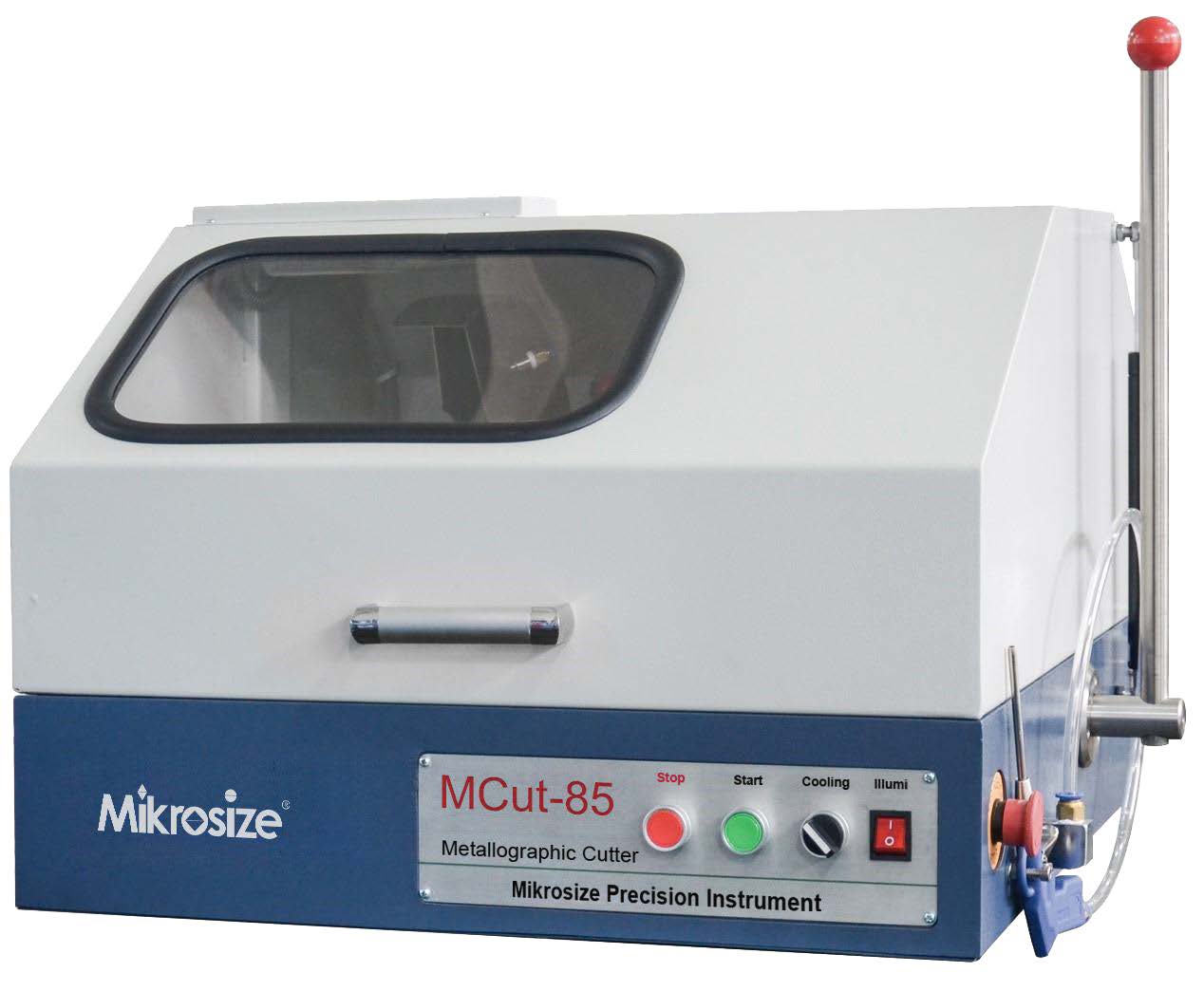

MCut-85 Manual Metallographic Cutter (Cutting Capacity: 85mm)
Scan QR
Scan QR
MCut 85 Manual Metallographic Cutter图（1）
MCut 85 Manual Metallographic Cutter图（2）
MCut 85 Manual Metallographic Cutter图（3）
MCut 85 Manual Metallographic Cutter图（4）
MCut 85 Manual Metallographic Cutter图（5）
MCut 85 Manual Metallographic Cutter图（6）
Product Features & Applications
Product Feature：
- High motor rotating speed and powerful cutting ability.

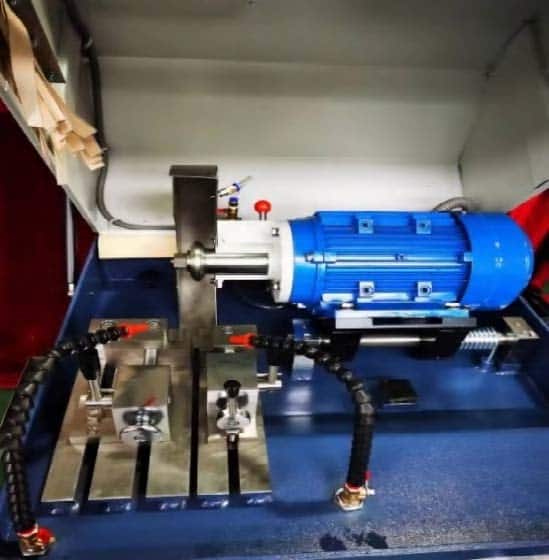

- Double-sided clamp device, fix sample firmly.
- Main parts of the clamp and cutting table are all made of stainless steel.

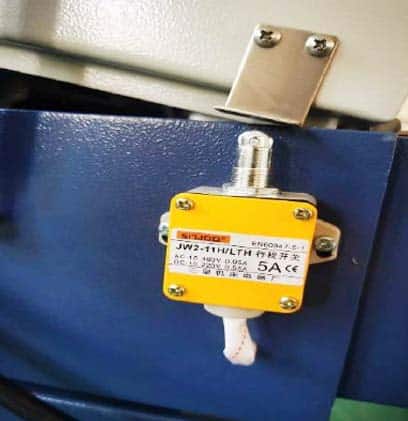

- Cutting chamber adopts closed structure with safety limit switch.
- An opening window in the left cover used for cutting long strip samples.
- Transparent organic glass window and built-in LED lamp for observation.
- Equiped with circulating cooling water system, the sample surface after cutting is bright and flat without burns.
Product Application：
- This machine is suitable for general metallographic and petrographic materials. By pull- ing spindle and using the spindle gravity to cut sample,ideal equipment for sample cut- ting. This model is divided into benchtop and floor type for customers to choose.
Technical Specifications
| Model | MCut-85 |
| Cutting Method | Manual |
| Cut-off Wheel | Φ300×2×Φ32mm |
| Max. Cutting Capacity | 85×85mm |
| Spindle Speed | 2800r/min |
| Electromotor Power | 3kW |
| Cutting Stage | 204×240mm, T-slot 12mm |
| Clamping Device | Quick clamp, Jaw height 60mm |
| Power Supply | 380V, 50Hz, 10A, Three-phase four-wire |
| Dimensions | 730×700×540mm (750×730×1200mm floor type) |
| Net Weight | 125kg(180kg floor type) |
| Water Tank Capacity | 60L |
| Pump Flow | 25L/min |
| Water Tank Dimensions | 565×360×600mm |
| Water Tank Weight | 27kg |
Standard Configuration
| Name | Specification | Qty | |
| Machine Body | / | 1 set | |
| Water Tank | / | 1 set |  |

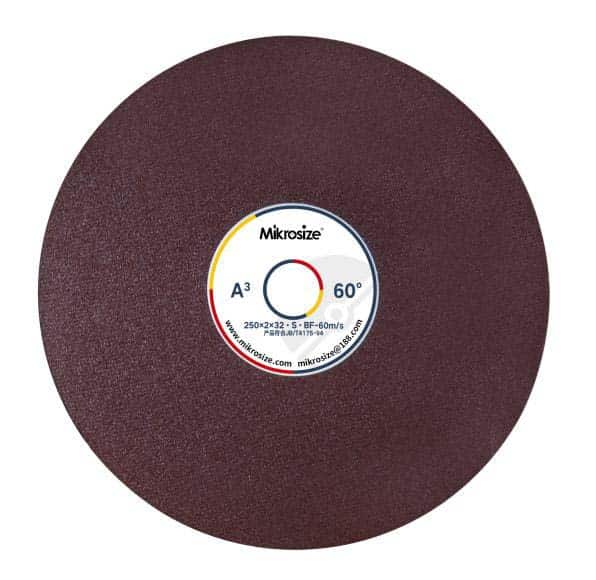

| Cut-off Wheel | Φ300×2×Φ32mm Resin cut-off wheel | 2 pcs |  |
| Cutting Fluid | 3kg | 1 bottle |  |
| Spanner | 14×17mm, 24×27mm | each 1 pc | |
| Inner Hexagon Spanner | 3mm, 6mm | each 1 pc | |
| Water Inlet Pipe | 1/2 Metal pipe | 2 pcs | |
| Water Outlet Pipe | Φ48mm | 1 pc | |
| Usage Instruction Manual | / | 1 copy |
