MGrin-2-300 Spectrum Abrasive Grinding Machine
Scan QR
Scan QR
MGrin 2 300 Spectrum Abrasive Grinding Machine图（1）
MGrin 2 300 Spectrum Abrasive Grinding Machine图（2）
MGrin 2 300 Spectrum Abrasive Grinding Machine图（3）
MGrin 2 300 Spectrum Abrasive Grinding Machine图（4）
MGrin 2 300 Spectrum Abrasive Grinding Machine图（5）
MGrin 2 300 Spectrum Abrasive Grinding Machine图（6）
Product Features & Applications
Product Feature：
- Spray coating technology for the whole machine body.
- Special cover design with a lock lock catch can effectively guarantee the safety of grinding process.
- Two grinding wheels are independently operated
- Powered by driver and DC brushless motor combined
- Stepless grinding speed control.

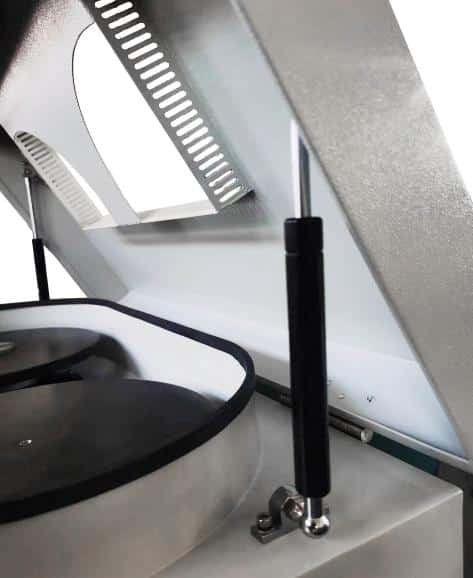

- With gas spring support, 1/4 grinding surface to protect user operating.
- Equipped with a dust suction device installed in the cabinet, which can suck away grinding objects and avoid environmental pollution.
- With emergency stop button, electricity separation design.
- Membrane Panel controls operation
- Stable start-up, high transmission power and low noise can meet the preparation requirements of different materials and improve the grinding quality and efficiency.
Product Application：
- In the metallographic sample preparation and spectral analysis application, the grinding is an essential and important procedure.GMP-2-300 is the ideal equipment for the metallographic sample preparation.
Technical Specifications
| Product Name | Spectrum Abrasive Grinding Machine |
| Model | MGrin-2-300 |
| Grinding Wheel Diameter | 300mm |
| Abrasive Paper Diameter | 300mm |
| Grinding Speed | Stepless Speeds 100-1400r/min, or Four Speeds 300, 600, 900, 1400r/min |
| Rotational Direction | Clockwise or Counterclockwise |
| Motor Power | 550W |
| Control and Display | Membrane Panel Operation, LED display, With Dust Suction Device |
| Power Supply | 220V, 50Hz, 10A |
| Machine Dimensions | 820*440×940mm |
| Net Weight | 122kg |
Standard Configuration
| Name | Specification | Qty |
| Machine Mainframe | / | 1 set |
| Grinding Wheel | 300mm | 2 pcs |
| Grinding Abrasive Paper | 300mm | 2 pcs |
| Inner Hexagon Spanner | 5mm | 1 pc |
| Usage Instruction Manual | / | 1 copy |
