iShore-75 Shore Durometer

Scan QR

×

Scan QR Code

https://mikrosize.com/product/ms7500-shore-durometer/

Product Feature：

• Complies with the positive and negative force requirements of GB/T 38119 and ISO 48-9.

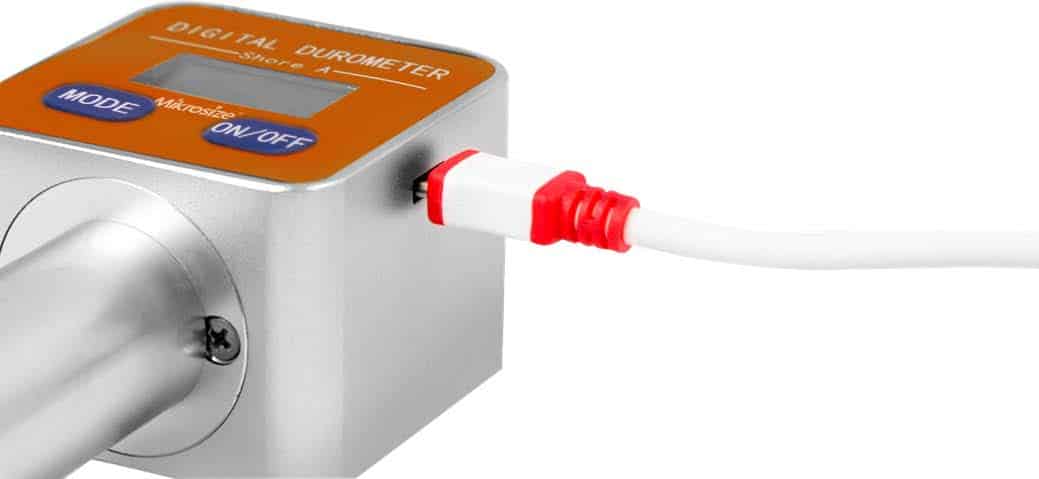

• Equipped with USB communication function for real-time data upload.
• Large-capacity lithium battery for long working hours.
• With average value function, the number of averaging times can be set from 0 to 9.
• With time hold function, the maximum hold time is 30 seconds, meeting the requirements of GB/T 531.1 and ISO 48-9.
• With zero reset function to improve the accuracy of measurement results.

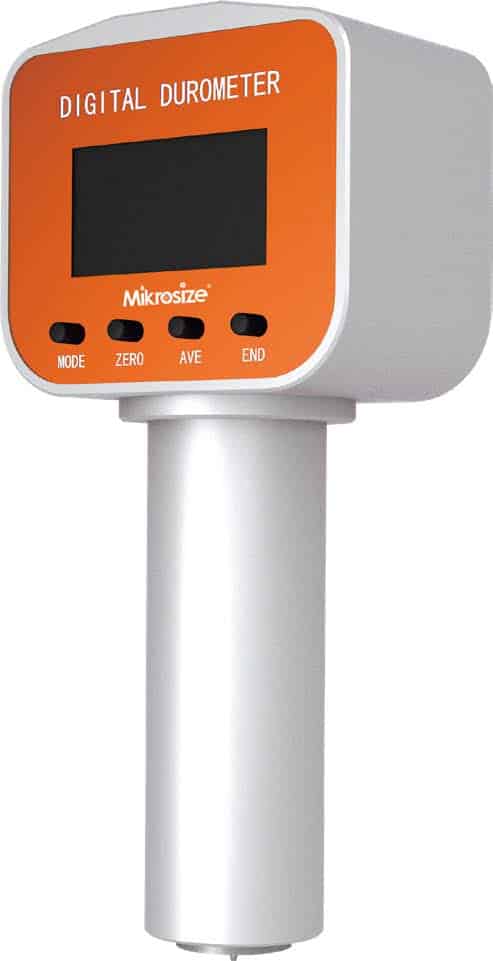

• 54-inch OLED display with clear presentation, low power consumption and no backlight required.
• Adopts digital displacement sensor instead of analog displacement sensor to ensure test accuracy.

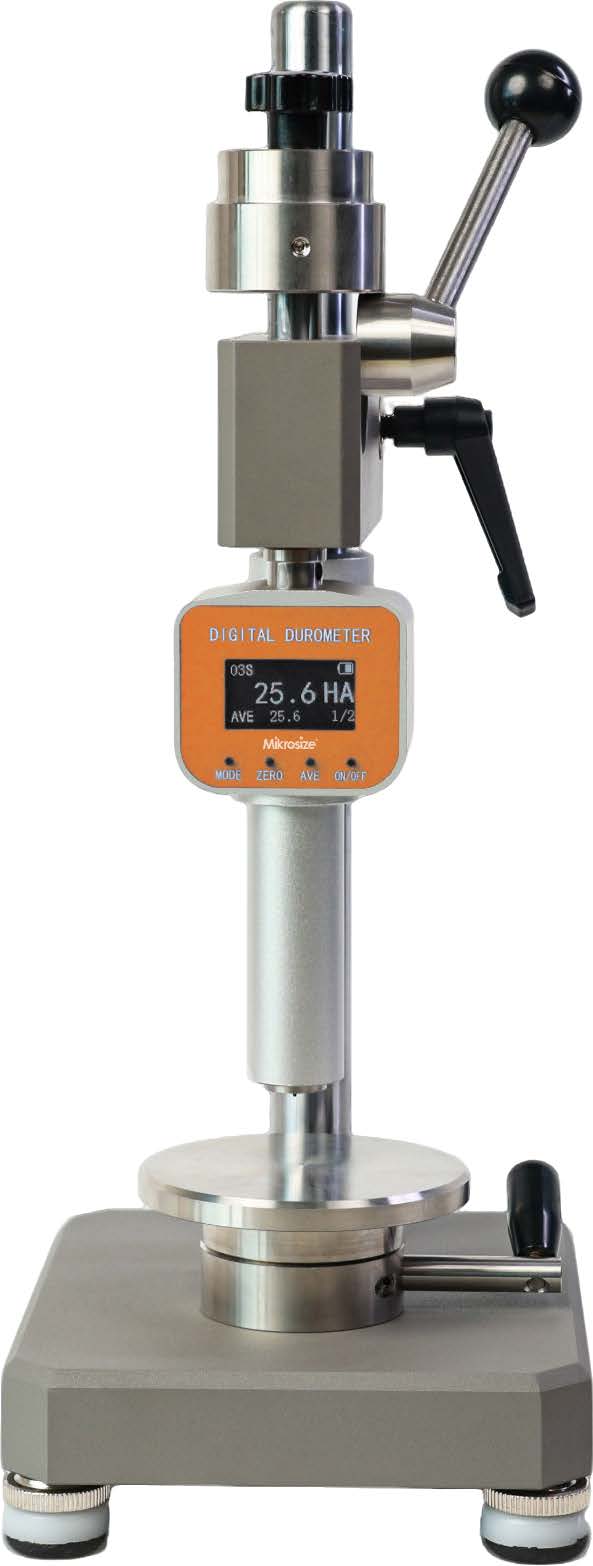

• Can be connected with a constant load stand for high-precision and stable testing.
• Complies with the latest implementation standards: GB/T 38119, GB/T 2411, JJG 304, GB/T 531.1, GB/T 38243, ISO 48-9, ISO 7619, ISO 21509.

Product Application：

• Rubber product testing

Sealing rings, foot pads, shock-absorbing rubber, tires, rubber hoses, rubber seals, etc. Shore A is used to judge whether the hardness and elasticity meet the standards.

• Soft plastics and elastomers

Thermoplastic elastomers (TPE/TPR), soft PVC, silicone products, handle overmolding, data cable outer sheaths, etc. Shore A is used to control the hand feel and hardness.

• Hard plastics and rigid materials

Acrylic, hard PVC, epoxy boards, bakelite, glass fiber reinforced plastics and other relatively hard non-metallic materials. Shore D is used to detect hardness and wear resistance.
