STM-50 Small tool microscope
Scan QR

STM 50 Small tool microscope1
STM 50 Small tool microscope1

STM 50 Small tool microscope1

Product Features & Applications

Product Feature：

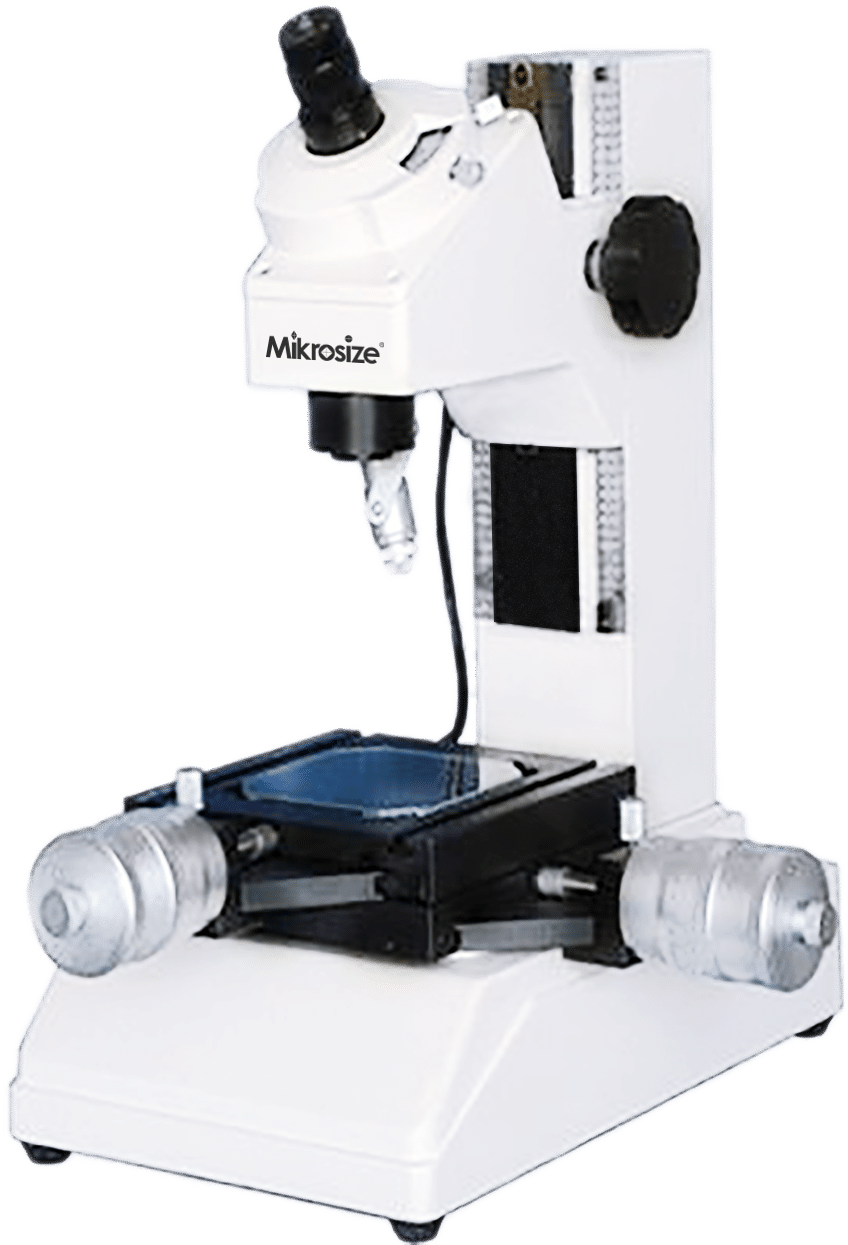

  • The small tool microscope is composed of an objective lens, an eyepiece, an XY coordinate stage, an angle dial, a reflective illuminator, a transmitted illuminator, a power supply, etc. It features a compact layout and convenient operation.
  • It can be used in factories or metrology laboratories for length and angle measurements of tools or mechanical parts.

Technical Specifications

Microscope Magnification 1.30x (eyepiece 15x, objective lens 2x)
Longitudinal Travel 0-50 mm
Transverse Travel 0-50 mm
Ngle Measurement Range 0-360°
Xy Movable Base 0.002 mm
Dial Scale Value 1°
Vernier Scale Value 6'
Stage Surface Dimensions 152 mm x 152 mm
Effective Glass Stage Dimensions 96 mm x 96 mm
Maximum Load Capacity (On Glass) 5 kg
Reading Device Thimble Trave 25 mm
Maximum Workpiece Height 110 mm
Focusing Method Manual (coarse adjustment)
Centre and V-Block Holders Maximum workpiece length for centre holder: ≥220 mm  Maximum workpiece diameter for V-block holder: ≥100 mm
Illumination Devices Transmitted illumination with green filter and stepless brightness adjustment  Reflected illumination with single-lamp inclined reflection
Power Supply Input 220 V / 110 V
