Surface roughness tester sensor
Scan QR
Scan QR
标准传感器 e1770628034801
12 1
小孔传感器 e1770628052573
深槽传感器 e1770628084311
曲面传感器 e1770628073705
传感器转接杆 e1770628096596
传感器延长杆 e1770628062362
Technical Specifications
 |
 |
 |
|
| Standard Sensor | Small Hole Sensor | Extension Rod | Extended Probe |
 |
 |
 |
|
| Curved Surface Sensor | Deep Groove Sensor | Adapter Rod |

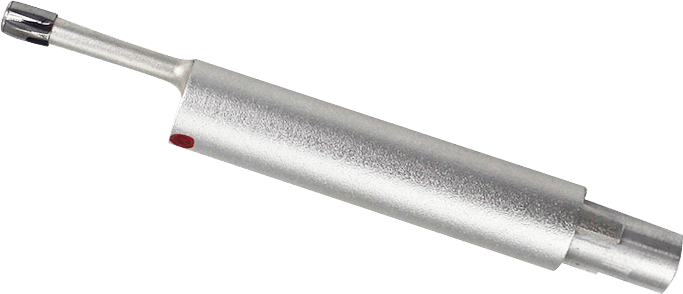

| Standard Sensor | SRT-SS | Suitable for measuring the surface roughness of planes and shafts. When measuring the inner surface roughness of holes, it can be used for holes with a diameter greater than 6mm, with a maximum depth of 22mm.(Included in the standard equipment package.) |

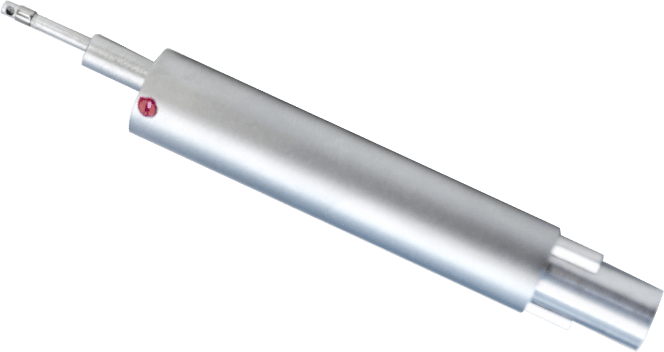

| Small Hole Sensor | SRT-SH | Capable of measuring the surface roughness of holes with a diameter greater than 2mm, with a maximum depth of 9mm. It can also be used for measuring planes and cylindrical surfaces. |

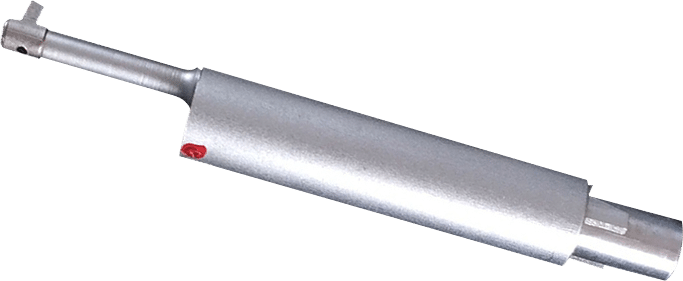

| Curved Surface Sensor | SRT-CS | Designed for measuring the surface roughness of concave and convex curved workpieces with a radius of curvature greater than 3mm. It can also be used for suitable planes and cylindrical surfaces in conjunction with a measuring platform. |
| Deep Groove Sensor | SRT-DGS | Applicable for measuring the surface roughness of grooves with a width greater than 3mm and a depth less than 10mm, or steps with a height less than 10mm. It can also be used for measuring planes and cylindrical surfaces when used with a measuring platform. |
| SRT-DGS | SRT-EP | For measuring the surface roughness within grooves that have a width greater than 1mm and a depth less than 13mm. |

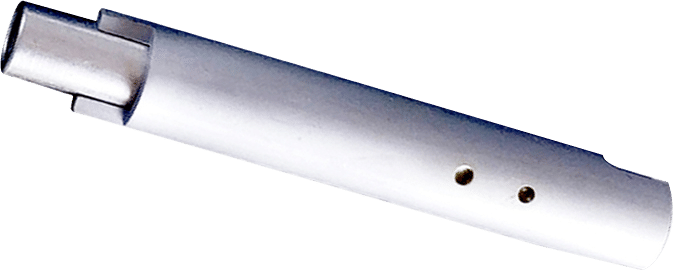

| Extension Rod | SRT-ER | Can extend the length of various sensors by 50mm. It is beneficial for measuring deep holes and can be equipped with two extension rods if necessary. |

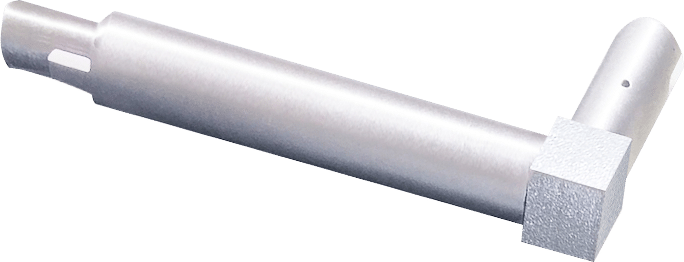

| Adapter Rod | SRT-AR | Enables lateral movement of the measuring mechanism for surface roughness measurement. |
