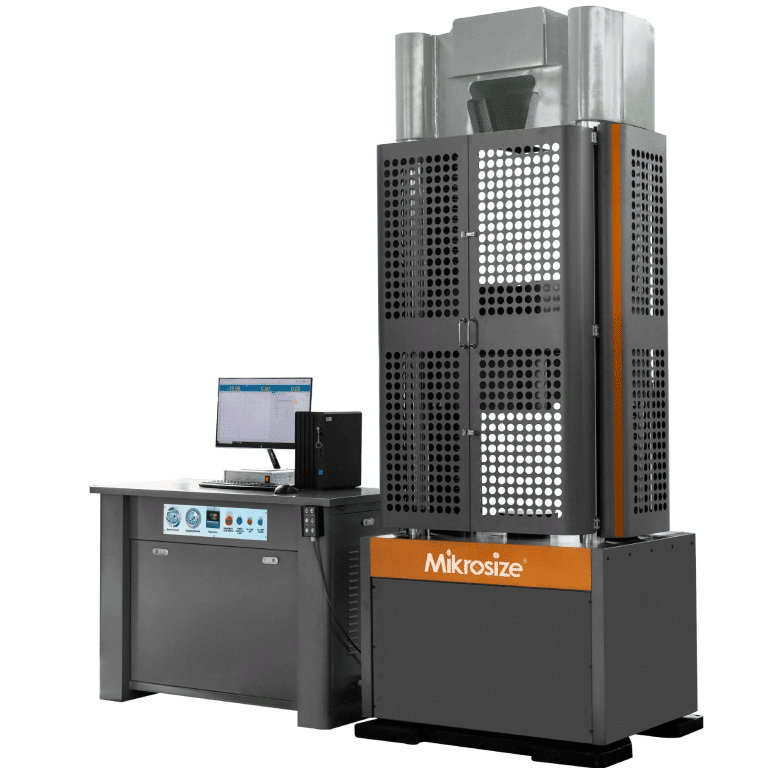

Looking for a reliable industrial-grade testing device to analyze mechanical performance of metals, non-metals and composite materials? Our electro-hydraulic servo universal testing machine (also known as hydraulic tensile tester) delivers precise, repeatable test results for labs, manufacturing QC and material R&D facilities worldwide.
1. Versatile Test Capabilities
This Mikrosize four-column UTM for tension compression bending shear test fully supports four core mechanical testing modes: tension, compression, bending and shear. It works seamlessly with all common test specimens, including metal alloys, plastics, rubber, textiles and multi-layer composite materials, covering nearly all routine material strength evaluation demands.
2. Precise Electro-Hydraulic Servo Closed-Loop Control System
Built with mature electro-hydraulic servo closed-loop control technology, the machine regulates hydraulic oil flow accurately via high-performance servo valves and applies stable test loads through the main hydraulic cylinder. As a professional hydraulic servo material testing machine ASTM ISO compliant, it maintains ultra-stable load output throughout long-cycle tests without pressure fluctuation.
The main frame adopts a lower-mounted cylinder layout: the upper chamber serves as the tension test area, while the lower zone is reserved for compression and bending experiments. A drive motor turns twin lead screws to lift or lower the movable crossbeam, allowing flexible adjustment of tension/compression test space to fit specimens of different sizes.
3. Integrated Control & Convenient Operation
- Independent dedicated electro-hydraulic servo power unit cabinet, fitted with real-time indicator gauges, physical control buttons and mandatory emergency stop switch for instant hazard shutdown.
- Built-in intelligent main controller enables multi-mode automatic testing: constant test force speed, constant displacement speed, constant strain speed and cyclic constant load testing.
- Wired remote control box is standard accessory, letting operators remotely open/close test fixtures for fast sample clamping without approaching the main frame.
- Our UTM machine with extensometer compatibility reserves dedicated interfaces for optional external extensometers to capture ultra-precise elongation data during tensile testing.
4. High-Stability Mechanical Frame & Complete Safety Protection
The whole tester features a robust four-column + double lead screw structure with ultra-high rigidity, perfectly matching high-strength material testing workloads. As heavy-duty heavy-duty hydraulic universal test equipment with safety shield, it comes with a full metal wire splash guard: when brittle samples rupture during testing, the shield blocks flying debris to protect lab staff from injury.
Multi-layer safety protection mechanisms are fully equipped: overload emergency stop, overpressure auto-cutoff and mechanical hard limit stoppers to avoid equipment damage caused by misoperation or specimen failure.
5. Full-Function PC Measurement & Control Software
Matched exclusive professional measurement & control software empowers full digital test management: real-time specimen data monitoring, live test parameter adjustment, automatic data calculation and one-click test report export.
- Compatible with mainstream Windows operating systems: Win7, Win10, Win11.
- Intelligent sample break auto-detection: the machine automatically halts the test once specimen fracture is identified.
- Fully editable test report templates with support for multiple common export formats to meet different lab document standards.
- After each test cycle, the crossbeam can return to its original starting position either manually or via high-speed auto-reset for continuous batch testing.
6. Flexible Fixture Configuration & Customization
Standard tension and compression fixtures are pre-installed on delivery. We also provide customized fixture solutions tailored to unique specimen shapes and customer testing requirements. A wide range of optional auxiliary fixtures can be selected for special shear, bending or peeling test scenarios.
7. Global Standard Compliance
This computerized hydraulic tensile tester for metal composite material strictly complies with international authoritative testing standards, including ASTM E4, ISO 7500-1, EN 10002-2, BS 1610 and DIN 51221, so test data is globally recognized for certification, factory inspection and academic research.
