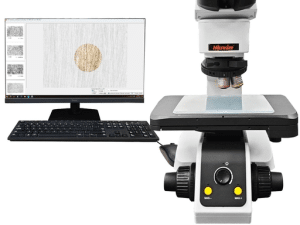

In the fields of scientific research, semiconductor manufacturing and industrial material testing, microscopes are indispensable inspection equipment. However, many industry practitioners confuse metallurgical microscopes with ordinary biological optical microscopes. Though both fall under optical instruments, they feature distinct optical designs, compatible samples and supporting functions. This article takes the Mikrosize iMetal-40UP metallurgical microscope as an example to elaborate the core differences between the two devices.
1.Core Imaging Principle
- Biological optical microscope: Adopts transmitted light structure. Light passes through thin transparent slides. It cannot observe opaque workpieces such as metal and wafers.

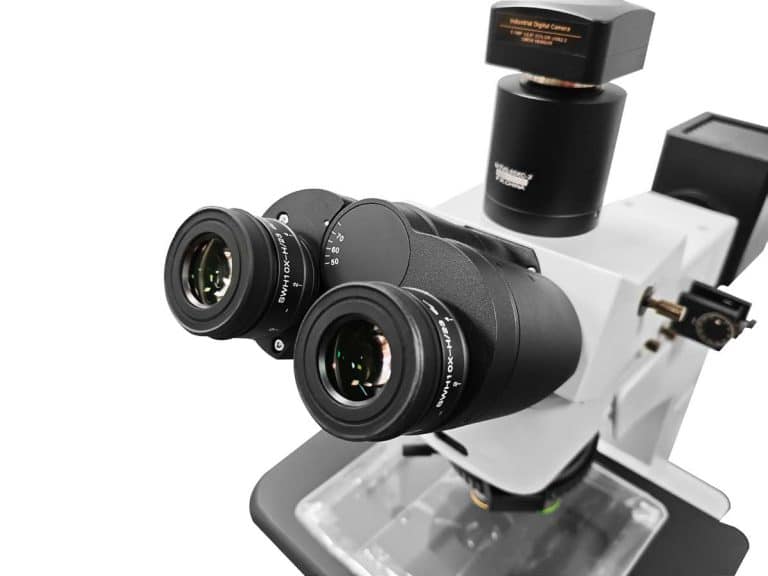

- Mikrosize iMetal-40UP metallurgical microscope: Equipped with vertical epi-reflection lighting and 5W adjustable dual-purpose LED light source. Built-in infinity corrected optical system. Light irradiates solid surfaces and forms images via reflected light, perfectly suitable for industrial material failure analysis.
2.Main Application Scenarios
- Ordinary Biological Optical Microscope
Only applicable to transparent biological samples: medical pathological slices, cell observation, microbial detection, plant specimen analysis.
1.Metal metallurgy inspection: Observe grain structures, inclusions and metallographic changes after quenching/tempering/annealing of steel and aluminum alloy.
2.Wafer defect inspection: Utilize DIC differential interference contrast to detect epitaxial pits and nanoscale scratches to improve chip yield.
3.Electronic component quality control: Complete MLCC microstructure observation and PCB cross-section analysis, find cutting burrs, packaging voids and potential short-circuit risks.
4.New material research: Analyze grain boundaries of ceramics and composite materials to optimize material formulas.
3.Optical System
- Biological microscope: Equipped with finite objective lenses, only supports brightfield observation.
- Mikrosize iMetal-40UP metallurgical microscope: Equipped with infinity chromatic aberration correction system, integrated with 4 observation modes:
- Brightfield: Basic observation of grain and coating textures
- Darkfield: Highlight tiny scratches, pores and edge burrs
- Polarized light: Identify anisotropic phases and non-metallic inclusions inside alloys

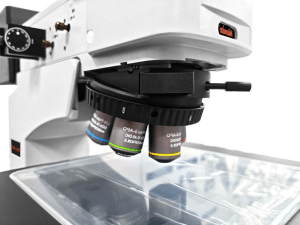

- DIC: Convert nanometer height differences into 3D relief images to capture invisible defects on LCD and wafers Optional dual-control electric 5-hole nosepiece; optical magnification ranges from 50X to 1000X, maximum 3000X digital magnification with industrial cameras.
4.Mechanical Frame & Stage
- Biological microscope: Small thin stage, only compatible with glass slides.
- Mikrosize iMetal-40UP metallurgical microscope: Industrial ergonomic frame
- 4-inch large stage with 310*240mm area, 100mm coaxial XY moving range for large wafers and thick metal samples
- Coaxial coarse & fine focusing structure, fine adjustment precision up to 0.001mm
- 100–240 wide voltage design, stable operation under unstable factory power, anti-vibration body
5.Supporting Analysis Software
- Biological microscope: Only simple imaging function, no professional measurement modules.
- Mikrosize iMetal-40UP metallography matching software: Supports automatic dimension measurement, image stitching, bidirectional calibration and automatic grain grading. All test data is traceable and meets CNAS laboratory compliance requirements.
6.Matching Sample Preparation Equipment
- Biological samples: Only slicing and staining processing are needed.
- Metallographic samples: Complete cutting, mounting, grinding and polishing procedures are required. This metallurgical microscope can be used with complete metallographic sample preparation equipment, which is unnecessary for biological optical microscopes.
7.Conclusion
The iMetal-40UP metallurgical microscope is a special reflective optical instrument for opaque industrial solid materials, while biological optical microscopes adopt transmitted light for transparent biological slices.With multi-mode infinity optical system, electric objective turret, large industrial stage and intelligent analysis software, Mikrosize metallurgical microscope provides one-stop inspection solutions for semiconductor, electronic component and new material industries.
