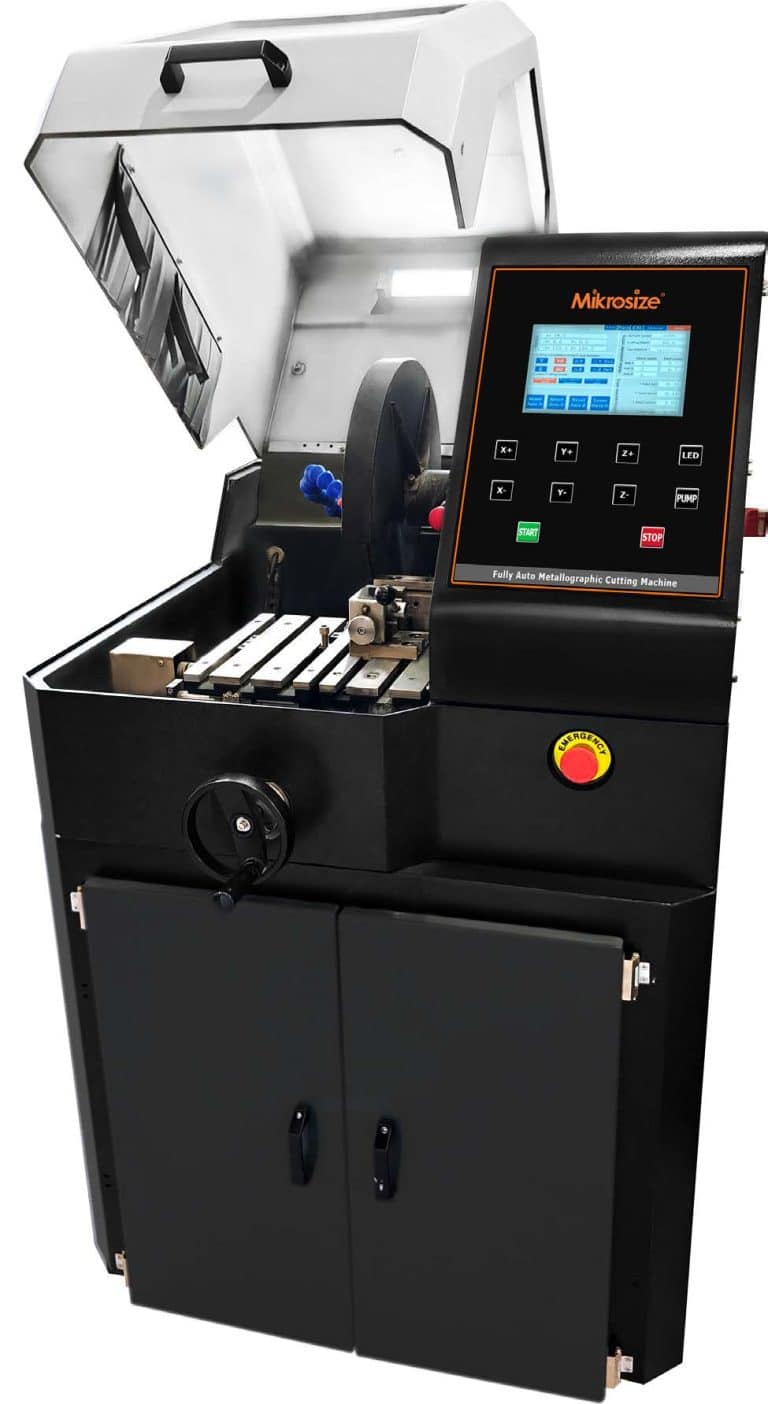

In metallographic analysis, material testing, and quality assurance, the preparation of high-quality specimens begins with precise, damage-free cutting. The Mikrosize AutoCut-250 is a 3-axis automatic intelligent metallographic cutting machine designed to meet the most demanding sampling requirements across a wide spectrum of industries. Combining robust construction, intelligent feeding control, and versatile cutting modes, this equipment delivers consistent, reproducible results for laboratories, production floors, and research institutions.
Intelligent Feeding and Multiple Cutting Modes
The AutoCut-250 features a high-torque servo motor with a continuously variable speed system (500–3000 rpm), providing strong power and high efficiency for cutting a variety of materials. Its intelligent feeding system automatically monitors cutting force—reducing feed speed upon encountering resistance and resuming the preset speed once the obstacle is cleared. This adaptive control minimizes the risk of wheel breakage and thermal damage to the specimen.
Offering a high-quality multiple combination cutting mode design, the machine supports five cutting methods: vertical, layered, horizontal, linear (pulse), and manual cutting. This flexibility makes it ideal for precision positioning cutting and sampling of irregular and non-standard parts, including automotive components, castings, and specialty alloys. The X-axis can be configured as automatic or manual (depending on the model), while Y-and Z-axes feature automatic feeding as standard, enabling full-programmed operation.
Technical Excellence and Robust Construction
Equipped with a 250 × 32 × 1.5 mm aluminum oxide resin cut-off wheel, the AutoCut-250 achieves a maximum cutting diameter of 90.5 mm. The spindle speed range of 500–3000 rpm accommodates both soft and hard materials. The machine is built with an electrostatic-sprayed, high-strength cast aluminum alloy base, ensuring stability, rust resistance, and durability. The cutting chamber is made of high-strength integrally molded composite material, resistant to rust and easy to clean. The worktable, constructed from 304 stainless steel with T-slots, is corrosion-resistant and allows for quick clamp changes. A standard quick-release clamp (304 stainless steel) simplifies operation, while optional vertical clamps or other fixtures expand application versatility.
User-Centric Design and Safety Features

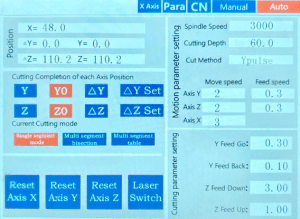

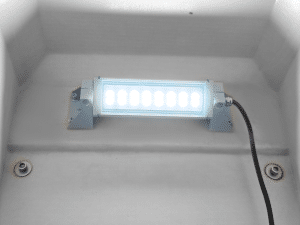

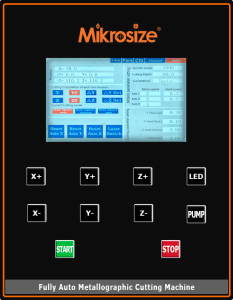

The AutoCut-250 incorporates an 8-inch high-definition color touchscreen combined with physical control buttons, offering intuitive operation and real-time parameter monitoring. A large transparent window provides clear visibility of the cutting chamber, while built-in high-brightness LED illumination facilitates observation of the sample condition during the process. The machine includes an electronic brake for rapid wheel stopping, and low-voltage control components (Schneider Electric) ensure safe and reliable operation.

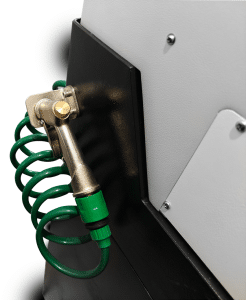

A standard high-pressure flushing system—including an independent spray gun—simplifies cleaning of the cutting chamber after use, extending equipment service life. The removable plastic recirculating water tank (70L capacity) provides efficient cooling, with an optional high-intensity magnetic filtration water tank available for enhanced particle removal. An optional laser positioning function further improves cutting accuracy by projecting a visible alignment line onto the workpiece.
Broad Applications Across Critical Industries
The automatic intelligent metallographic cutting machine serves as an essential tool in numerous sectors:
- Metal Processing and Quality Control: High-precision cutting of steel, non-ferrous metals, and alloys for microstructure analysis, defect detection, and grain size evaluation in compliance with ASTM E3-11, ISO 643, and GB/T 13298 standards.
- Aerospace: Cutting of high-precision components such as aircraft engine and rocket engine parts, ensuring metallographic structures meet stringent performance and safety requirements.
- Automobile Manufacturing: Processing of body and engine components; engineers rely on the machine to analyze metallographic structures, optimize material selection, and enhance vehicle performance and durability.
- Research and Teaching: An indispensable tool in scientific research institutions and university laboratories for materials science research, metal structure analysis, and teaching experiments.
- Petrochemical and Energy: Cutting and repair of pipelines, storage tanks, and equipment; metallographic inspection of materials used in harsh environments.
- Mold Manufacturing: Accurate metal cutting to improve mold manufacturing efficiency and quality.
- Electronics and Precision Manufacturing: Sample preparation for electronic components, ceramics, and semiconductors, meeting high-precision processing needs.
- Additional Fields: Construction, bridges, ships, mineralogy (mineral composition and particle analysis), and biomedical (pathological tissue sampling).\
Model Options and Ordering Information
The AutoCut-250 series is available in three configurations:
- AutoCut-250A: X-axis automatic, Y-axis manual/auto, Z-axis auto.
- AutoCut-250MA: X-axis manual, Y-axis manual/auto, Z-axis auto.
- AutoCut-250YZ: No X-axis, Y-axis manual/auto, Z-axis auto.
All models support vertical, linear, and pulse cutting methods (with horizontal cutting available on models with X-axis). The machine operates on single-phase 220V or three-phase 380V power, with a 2.2 kW motor. Dimensions and weight vary by configuration, but the desktop and floor-standing options accommodate different workspace requirements.
The Mikrosize AutoCut-250 combines intelligent feeding, robust construction, and versatile cutting modes to deliver reliable, high quality specimen preparation across a wide range of materials and industries. Its user-friendly interface, safety features, and optional accessories make it a valuable asset for any laboratory or production environment seeking consistent, reproducible metallographic sampling.
