In automotive manufacturing, coating quality directly determines vehicle durability and cosmetic appearance. Every coating layer from car-body steel sheets to precision components demands precise thickness control. A coating thickness gauge acts as the critical inspection instrument for these quality workflows. Mikrosize iCoat-200 Coating Thickness Gauge serves as a benchmark unit in this industry. Leveraging magnetic-induction and eddy-current testing technologies, it delivers efficient and accurate solutions for automotive coating inspection.
Magnetic-Induction and Eddy-Current: Tech Eyes for Coating Measurement
The core working principle of automotive coating inspection relies on magnetic-induction and eddy-current measurement techniques.
For ferromagnetic substrates such as steel and iron, Mikrosize iCoat-200 Coating Thickness Gauge adopts the magnetic-induction principle. The probe generates a magnetic field that penetrates non-magnetic coatings including paint and electroplated layers. The instrument calculates coating thickness by measuring variations in magnetic field output. For example, during electrophoretic coating inspection for vehicle bodies, this technology verifies the 15-25 μm target thickness range to guarantee anti-corrosion performance. Insufficient coating thickness raises rust risks for car bodies, while over-applied coatings increase material costs and weaken coating adhesion strength.
For non-ferromagnetic substrates like aluminum and copper, the eddy-current thickness measurement becomes the primary detection method. The eddy-current probe of Mikrosize iCoat-200 Coating Thickness Gauge generates alternating magnetic fields via high-frequency current, which induces eddy currents on conductive substrate surfaces. Changes in coating thickness modify eddy-current intensity, enabling the unit to compute accurate thickness readings. When inspecting anodized layers on aluminum alloy wheel hubs, this technology monitors uniform layer thickness and prevents corrosion triggered by locally thin coating sections.
Benchmark Instrument: Practical Field Performance of Mikrosize iCoat-200 Coating Thickness Gauge

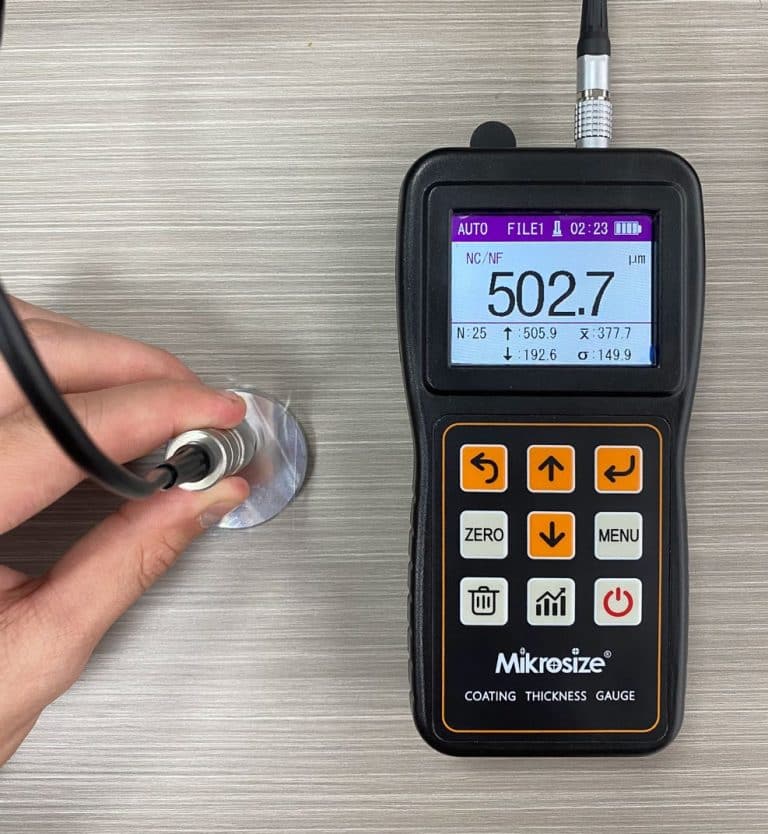

Mikrosize iCoat-200 Coating Thickness Gauge stands out for rich functions and high measuring precision. It supports both magnetic-induction and eddy-current thickness measurement methods, measuring non-magnetic coatings over magnetic metal bases as well as non-conductive coatings on non-magnetic metallic substrates. It offers continuous and single measurement modes, alongside three selectable measuring modes. Its high-precision mode averages multiple readings and automatically filters out suspicious data points for stable, reliable outputs; the fast measurement mode enables real-time scanning operations. Equipped with leading real-time temperature compensation functionality, it automatically offsets measurement deviations generated by ambient-temperature and probe-temperature shifts.

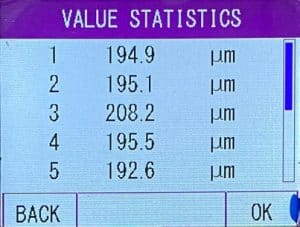

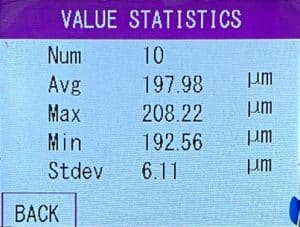

The instrument supports zero-point calibration, single-point calibration and two-point calibration. Basic calibration and temperature-coefficient calibration correct systematic errors originating from probe hardware. It records five core statistical values: Mean (MEAN), Maximum (MAX), Minimum (MIN), Number of Tests (NO.), and Standard Deviation (S.DEV).
In commercial-vehicle manufacturing scenarios, Mikrosize iCoat-200 Coating Thickness Gauge validates epoxy zinc-rich primer thickness on truck frames. Multi-point measurement confirms coating uniformity and avoids anti-corrosion failures caused by localized thin coating zones. Operators benefit from streamlined workflows without frequent manual mode switching, lifting overall quality-inspection productivity.
Value Expansion of Coating Thickness Meters: From Lab Environments To Production Lines
The application scope of coating thickness testing extends far beyond simple dimensional measurement. At automotive R&D stages, Mikrosize iCoat-200 Coating Thickness Gauge can pair with salt-spray test chambers to evaluate coating anti-corrosion performance. For used-car appraisal scenarios, Mikrosize iCoat-200 Coating Thickness Gauge assesses automotive paint thickness to identify prior sheet-metal repair work and furnish objective data for vehicle-condition evaluation.
With the growing adoption of lightweight materials within new-energy vehicles, coating thickness inspection for carbon-fiber car bodies and magnesium-alloy components has grown increasingly important. The Mikrosize iCoat-200 is also suitable for precise coating and plating thickness measurement across general metal parts and chemical-equipment surface coatings, covering cross-industry inspection demands outside automotive manufacturing.
Every single micron within automotive coatings carries critical technical significance, covering anti-corrosion protection, cosmetic finish, operational safety and environmental compliance. Instruments such as Mikrosize iCoat-200 Coating Thickness Gauge deliver precise metrology performance, establishing accurate thickness benchmarks for the modern automotive industry.
Mikrosize is committed to delivering one-stop measurement solutions, providing reliable hardware, calibration guidance and application support for coating-thickness inspection across automotive, chemical equipment and metal-processing sectors.
