Why is a multi-angle spectrophotometer recommended for automotive paint color measurement?
A spectrophotometer, also referred to as spectroscopic color difference meter or spectroscopic color tester, is a precision color measurement device. It measures colors based on light absorption, reflection and transmission properties of materials across different wavelengths. These color testing instruments are widely deployed for color quality control and color deviation verification across diverse industries: printing, coatings, plastics, cultural relic conservation, art appraisal, environmental monitoring and medical specimen testing. Within automotive manufacturing, consistent paint color performance is critical for finished-vehicle quality. Conventional single-angle color difference meter devices work well for solid-color coatings applied on flat surfaces. However, they frequently deliver invalid readings when measuring modern effect-rich automotive paints loaded with metallic or pearlescent pigments.
Why Multi-Angle Measurement Is Required For Automotive Paint? Start With Flake-Based Effect Pigments
Modern automotive finishes including metallic paint and pearlescent paint show shifting color appearances under varying lighting conditions. This visual phenomenon originates from micro metallic particles or mica flakes blended into paint formulations. These micro-flakes alter light-reflection behaviours as viewing angles change, generating unique sparkling visual effects and color shifts known as gonio-apparent effect .
Traditional single-angle spectrophotometer captures color data merely from one fixed viewing geometry and cannot record this angle-variant color information. Measuring metallic effect coatings using single-angle color measurement device is analogous to trying to reconstruct a person’s full appearance using only frontal-profile photographs. Large volumes of critical color information will inevitably get lost.
Multi-Angle Spectrophotometer: Capture Dynamic Color Characteristics
Multi-angle spectrophotometer is purpose-built to solve this exact challenge. It replicates human visual observation from multiple viewing geometries and acquires multi-point color datasets simultaneously, delivering full characterization for materials featuring angle-dependent color shift.

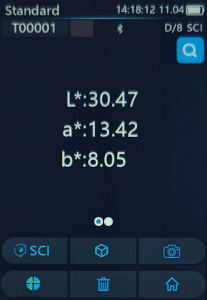

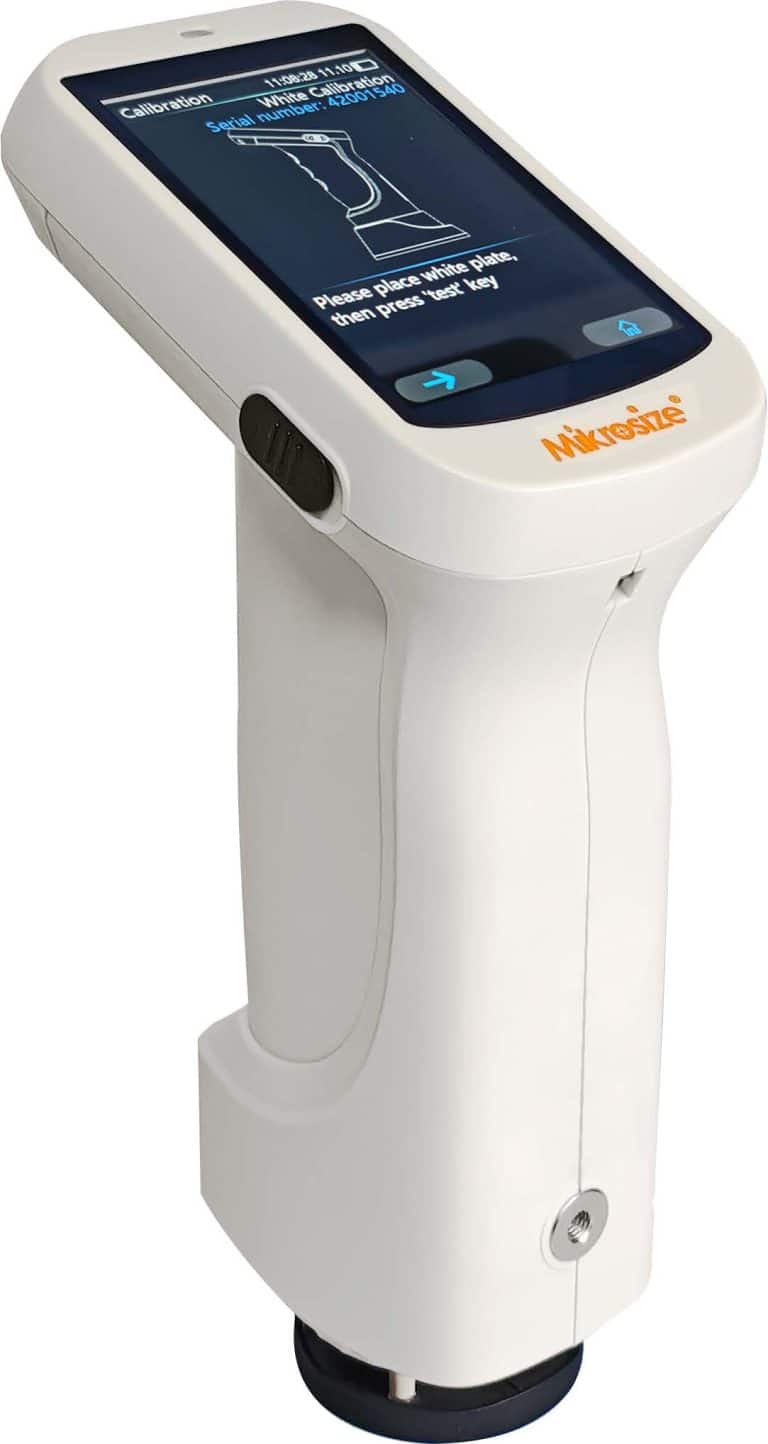

Mikrosize iColor-T407 Spectrophotometer adopts planar grating spectrometry paired with silicon photodiode array sensors, delivering optical resolution below 10 nm for stable, precise color acquisition. With 41 selectable light source options and dual-mode SCI/SCE measurement, it collects reflective signals across multiple observation geometries to fully record color transitions from highlight to off-angle conditions for automotive paint surfaces.
iColor-T407 Spectrophotometer: Specialized “Precision Inspector” Built For Automotive Industry Color Testing
As a professional spectroscopic color difference meter, the Mikrosize iColor-T407 Spectrophotometer addresses core pain-points in automotive paint inspection. Its major advantages are listed below:
1. Full-dimensional capture of gonio-apparent effect
Dual SCI/SCE measurement modes together with 2° /10° standard observer angles enable comprehensive recording of color and texture performances under varied viewing circumstances. It is highly suitable for precise measurement on metallic paint, pearlescent paint and other special-effect coatings. This color measurement device quantifies sparkle index, graininess and flop index, providing objective numerical references for evaluating sparkling visual performance of automotive topcoats.
2. High-level repeatability & inter-instrument consistency to satisfy strict automotive specifications
The iColor-T407 Spectrophotometer achieves chromatic repeatability ΔEab ≤0.02, and inter-instrument error ΔEab ≤0.18. Stable data consistency among multiple units meets stringent color tolerance requirements within the automotive OEM and tier-1 supply chains.
3. Reliable measurement performance on curved surfaces
Automotive car bodies contain numerous complex curved geometries. Benefiting from camera-assisted cross-hair positioning, the iColor-T407 Spectrophotometer maintains stable measurement accuracy even on non-flat curved panels. It performs exceptionally when measuring curved components such as vehicle doors and bumpers. Multiple switchable measuring apertures (8 mm,4 mm,1×3 mm) further support measurement on narrow curved or contoured workpiece areas.
4. Professional color-related parameters for in-depth paint surface quality analysis
Beyond standard color difference values ΔE*ab, this spectrophotometer outputs extended metrics: sparkle level, flop index and graininess. These datasets deliver comprehensive evaluation covering visual texture and manufacturing craftsmanship for metallic and pearlescent paint layers. Multiple color-difference formulas and color spaces are pre-integrated for thorough color-data analysis.
5. High operational efficiency for production-line deployment
The iColor-T407 Spectrophotometer completes multi-parameter measurement within roughly 1.5 seconds per test cycle. It stores up to 500 standard reference samples and 20 000 test records. Bluetooth and USB dual-channel communication support convenient real-time data export, report generation and traceability management for production-site quality control. Its large-capacity 5000 mAh lithium battery supports up to 8500 measurements within an 8-hour work shift, with universal Type-C charging for convenient on-site usage. The ergonomic hardware design with anti-drop wristband mounting reduces accidental damage during high-frequency shop-floor operations.
Key Technical Specifications of Mikrosize iColor-T407 Spectrophotometer
Item | Specification |
Optical Geometry | D/8, SCI & SCE, with UV control |
Spectroscopic Method | Plane Grating |
Sensor | Large–area silicon photodiode array |
Wavelength Range | 400–700 nm |
Measuring Apertures | 8 mm, 4 mm, 1×3 mm |
Observer Angle | 2° / 10° |
Selectable Illuminants | 41 kinds of light sources |
Repeatability | ΔE*ab ≤0.02 (MAV/SCI) |
Inter–instrument Error | ΔE*ab ≤0.18 (MAV/SCI) |
Display | 3.5–inch TFT true–color capacitive touch screen |
Data Storage | 500 standard samples, 20 000 test records |
Communication | USB, Bluetooth |
Battery | 5000 mAh Lithium battery, up to 8500 measurements in 8 hours |
Dimension & Weight | 114×70×208 mm, 435 g |
Compliant Standards | CIENO.15,GB/T3978.GB2893,GB/T18833,1S07724-1,ASTME1164,DIN5033 Teil7 |
Frequently Asked Questions
Q1: Why single-angle instruments cannot measure automotive metallic paint accurately?
A: Metallic and pearlescent paint creates gonio-apparent color shift caused by metal flakes and mica particles. Single-angle spectrophotometer only captures color under one fixed viewing angle and loses flop & sparkle data, leading to incomplete assessment for automotive finish quality.
Q2: What measurement modes are critical for automotive paint QC?
A: SCI (Specular Component Included) and SCE (Specular Component Excluded) dual modes are essential. SCI reflects inherent pigment color while SCE removes gloss interference, which is widely adopted for automotive paint batch comparison.
Q3: Can iColor-T407 handle curved auto-body parts such as bumpers and door panels?
A: Yes. Camera-assisted cross-hair positioning ensures correct aiming on curved surfaces. Multiple interchangeable apertures adapt for large curved panels and narrow local areas.
Q4: Is this instrument suitable for both on-site production-line inspection and laboratory analysis?
A: Yes. High-capacity battery, Bluetooth data transmission and compact form support shop-floor rapid testing. Full spectral data and multiple color-difference formulas satisfy strict laboratory-level color evaluation requirements.
Q5: What industries besides automotive coatings can this spectrophotometer serve?
A: It supports color inspection for plastic-electronics, paint & ink, textile printing, printing & packaging, ceramics, covering incoming raw-material check, in-process control and finished-goods QC.
Conclusion
For automotive paint materials blended with metallic or pearlescent effect pigments, single-angle color measurement cannot deliver sufficient evaluation results. Multi-angle spectrophotometer simulates human eyes observing from multiple viewing perspectives and faithfully captures dynamic angle-shifted color performance.
As a trusted supplier for color-measurement hardware, Mikrosize delivers complete one-stop color quality control solutions. The Mikrosize iColor-T407 Spectrophotometer combines high-precision measurement, reliable curved-surface adaptability and professional special-effect paint evaluation metrics. It provides efficient, trustworthy test results for automotive paint quality control, and also fits color-inspection workflows across plastics & electronics, paint & ink, textile printing, paper-printing and ceramics industries. It satisfies raw-material incoming inspection, in-process production monitoring and finished-goods quality verification for both rapid on-site shop-floor testing and precise laboratory-grade color-analysis demands.
