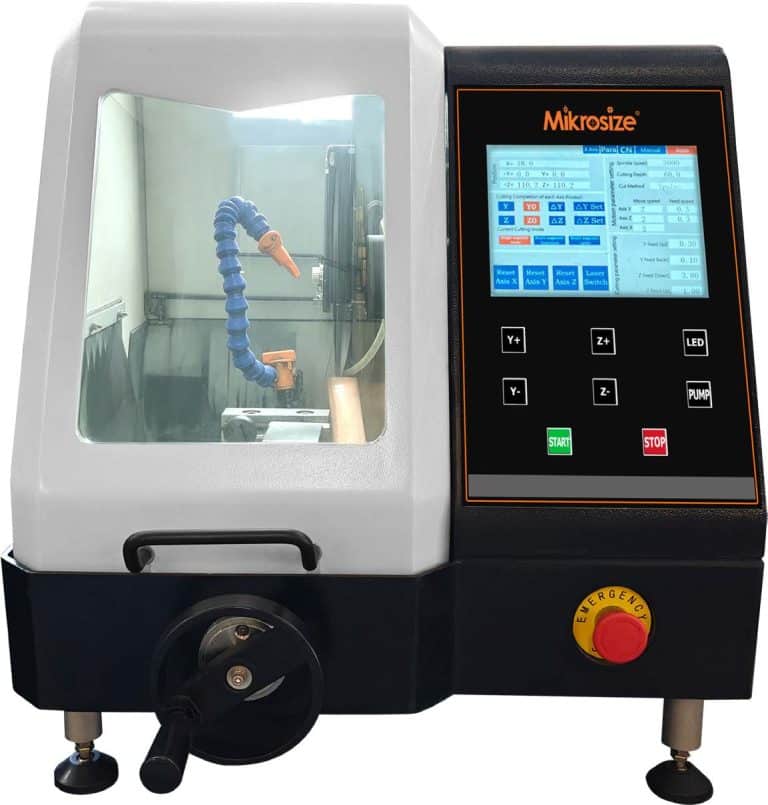

Fully Automatic Precision Sectioning Equipment by Mikrosize
Material labs and quality control departments require cutting equipment that delivers high precision and fast processing efficiency to meet strict global testing standards.
As Mikrosize, a leading manufacturer of precision metrology equipment, we launch this fully automatic metallographic cutting machine built with intelligent control to simplify complex specimen sectioning into a fully automated workflow.
Equipped with full touchscreen operation, it delivers stable, distortion-free cutting results for ferrous/non-ferrous metals, brittle ceramics, hardened glass and geological rock samples.
The Pinnacle of Automated Control: Multi-Axis Precision
The core advantage of this model lies in its integrated 4-axis (X/Y/Z/R) motion system, supporting fully automatic multi-segment cutting with customizable cutting thickness and angles. It eliminates frequent manual intervention and guarantees repeatable test results.
- Y-axis: Manual fine-tuning for quick position adjustment
- Optional R-axis: Rotary cutting for angled cross-sections of cylindrical workpieces
- X-axis continuous segmented cutting: One-cycle multi-slice processing to produce specimens of equal thickness. This function greatly facilitates mass sample preparation for statistical analysis and subsequent hardness testing & microscopic observation.
Wide Material Compatibility
This Fully Automatic Cutting Machine stands out due to its exceptional material versatility, making it a cornerstone for any metallographic lab. It is ideally suited for:
- Metals: Soft copper to high-hardness steel; low-deformation cutting to retain complete metallographic microstructure
- Advanced Ceramics: Adjustable feeding speed prevents edge chipping and cracking.
- Quartz Glass and Glass: High rigidity structure avoids breakage and produces clean edges for optical inspection
- Petrographic rock & mineral samples: Stable cutting performance for abrasive geological specimens.
One machine replaces multiple single-purpose cutting devices, saving laboratory floor space and procurement costs.
Ergonomics and Intelligence: The 10-Inch Large Touch Screen
Operators can set cutting parameters, store multi-step cutting recipes and monitor real-time cutting status. The system stores dozens of independent cutting programs, shortening setup time for repeated batches, lowering human error and ensuring consistent cutting quality.

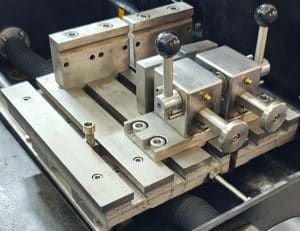

Oversized Through-Type Worktable for High Efficiency
The 280×300 mm large worktable provides ample space for large specimens and complex fixtures. Its unique through-type structure supports ultra-long bar stock cutting: elongated samples can be sectioned sequentially without re-clamping, significantly improving cutting accuracy and processing efficiency.
Built-in Laser Positioning System
The integrated laser positioning system enables visual alignment between cutting wheel and specimen, eliminating manual trial-and-error setup. It pinpoints cutting positions accurately to reduce waste of high-value samples and avoid setup-induced damage.
Mikrosize Total Solution Advantage
With decades of precision metrology R&D experience, Mikrosize supplies a complete product portfolio including Vickers hardness testers, image measuring instruments and full-series metallographic preparation equipment.
This cutting machine matches perfectly with Mikrosize mounting, grinding and polishing equipment, forming a seamless full-process workflow from specimen cutting to final microscopic analysis.
Conclusion: The Future of Sample Preparation
This fully automatic metallographic cut-off machine improves overall testing accuracy via 4-axis automation, multi-material compatibility, large worktable and intuitive touchscreen control.
Selecting Mikrosize equipment means you gain stable, traceable precision throughout your sample preparation workflow.
Contact our team to learn how this cutting machine optimizes your material analysis lab and delivers consistent reliable performance trusted by global customers.
