As a leading supplier of high-quality measuring and testing instruments, Mikrosize proudly presents its advanced Portable Metallographic Microscope — a cutting-edge solution built to satisfy stringent requirements for on-site material analysis. Boasting innovative design and practical functionality, this state-of-the-art instrument has become an indispensable tool for professionals across a wide range of industrial sectors.

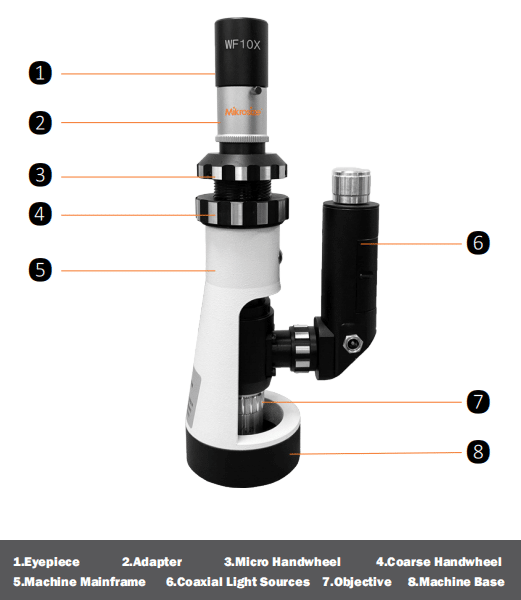

Manufactured by Mikrosize, a trusted name in testing-instrument production, our portable metallographic microscope features a built-in vertical illumination light source. This key capability enables easy field-side operation: users can accurately identify microstructures of various metals and alloys even when conventional sample preparation is unavailable. Unlike many comparable devices that demand complicated setup, our microscope is engineered for ease of use. It supports direct on-site metallographic inspection and failure analysis for large workpieces, removing the need for time-consuming, destructive cutting and sampling. Operators only need to grind and polish workpiece surfaces, preserving component integrity throughout testing.
Mikrosize’s flagship Portable Metallographic Microscope is designed for industries that rely on precise material analysis. It is widely adopted in aviation manufacturing to verify the structural integrity of aircraft components through metal microstructure characterization. In mechanical manufacturing, it supports quality control by examining metallographic properties of machine parts. For vehicle manufacturing, accurate microstructure assessment helps produce long-lasting automotive components.
This versatile instrument is also essential for boiler and pressure-vessel manufacturing & inspection, petrochemical plants, railways, shipyards, power stations and equipment installation projects, where it helps prevent equipment failures and guarantees operational safety. Further application scenarios include large-scale mold production, safety-testing agencies, quality-supervision authorities, physical-chemical laboratories, casting quality verification at production sites, incoming raw-material inspection, as well as R&D studies on metallographic structures after material processing.
One standout advantage of Mikrosize’s portable metallographic microscope lies in its magnetic base. Equipped with a high-strength magnetic mount, the unit can attach firmly onto metallic workpieces to deliver stable, reliable on-site metallographic observation. Complementing this design is a geared XY-axis moving stage, which locks the microscope securely in position and prevents undesired horizontal shifting during operation — a critical feature to maintain measurement accuracy under variable field conditions.
The lighting system represents another core highlight. It adopts a 6V 3W LED light source to produce bright, even illumination, revealing fine microstructural details with clarity. Paired with a high-capacity rechargeable lithium-ion battery, the lighting system delivers extended runtime for long-duration on-site testing and minimizes frequent recharging, greatly improving portability and practicality.
Compact, lightweight and space-saving, this optical instrument comes with a rugged portable aluminum-alloy carrying case. The case protects hardware during transit and facilitates easy transportation to different locations, be it remote construction sites, busy production floors or laboratories. Its mobility differentiates it from bulkier alternatives and makes it a preferred pick for specialists who demand both portability and measurement precision.
Optional accessories are available to expand system capabilities. The on-site metallographic sample-preparation kit includes an angle grinder, sandpaper, wool felt and diamond spray polishing compound. With this kit, users can prepare smooth, polished workpiece surfaces for microstructure analysis within minutes without off-site sample processing.
There is also an optional on-site metallographic imaging & analysis system. When coupled with the microscope, it forms a complete on-site analysis solution. This add-on includes licensed FMIA2023 metallographic analysis software and a WiFi wireless camera. It supports on-site image capture, detailed metallographic-structure evaluation and generation of professional metallographic inspection reports, streamlining workflows and enabling reliable digital documentation.
Every detail of Mikrosize’s Portable Metallographic Microscope reflects our dedication to premium-grade testing equipment. With sturdy build quality and user-centered features, the instrument addresses evolving market demands for precise material analysis. It delivers consistent, trustworthy results for routine quality control, failure analysis and research-and-development tasks, reinforcing Mikrosize’s standing as a dependable partner for metallographic testing.
To sum up, Mikrosize’s Portable Metallographic Microscope is far more than a standalone testing device. It is an all-in-one on-site analysis solution balancing innovation, portability and accuracy. For specialists searching for reliable hardware for metallographic examination and material characterization, Mikrosize — your trusted supplier of measuring-and-testing instruments — delivers outstanding performance and value across diverse working conditions.
