Hardness testing indenter & Other spare parts

Scan QR

×
Scan QR Code

https://mikrosize.com/product/hardness-testing-indenter-other-spare-parts/

Technical Specifications

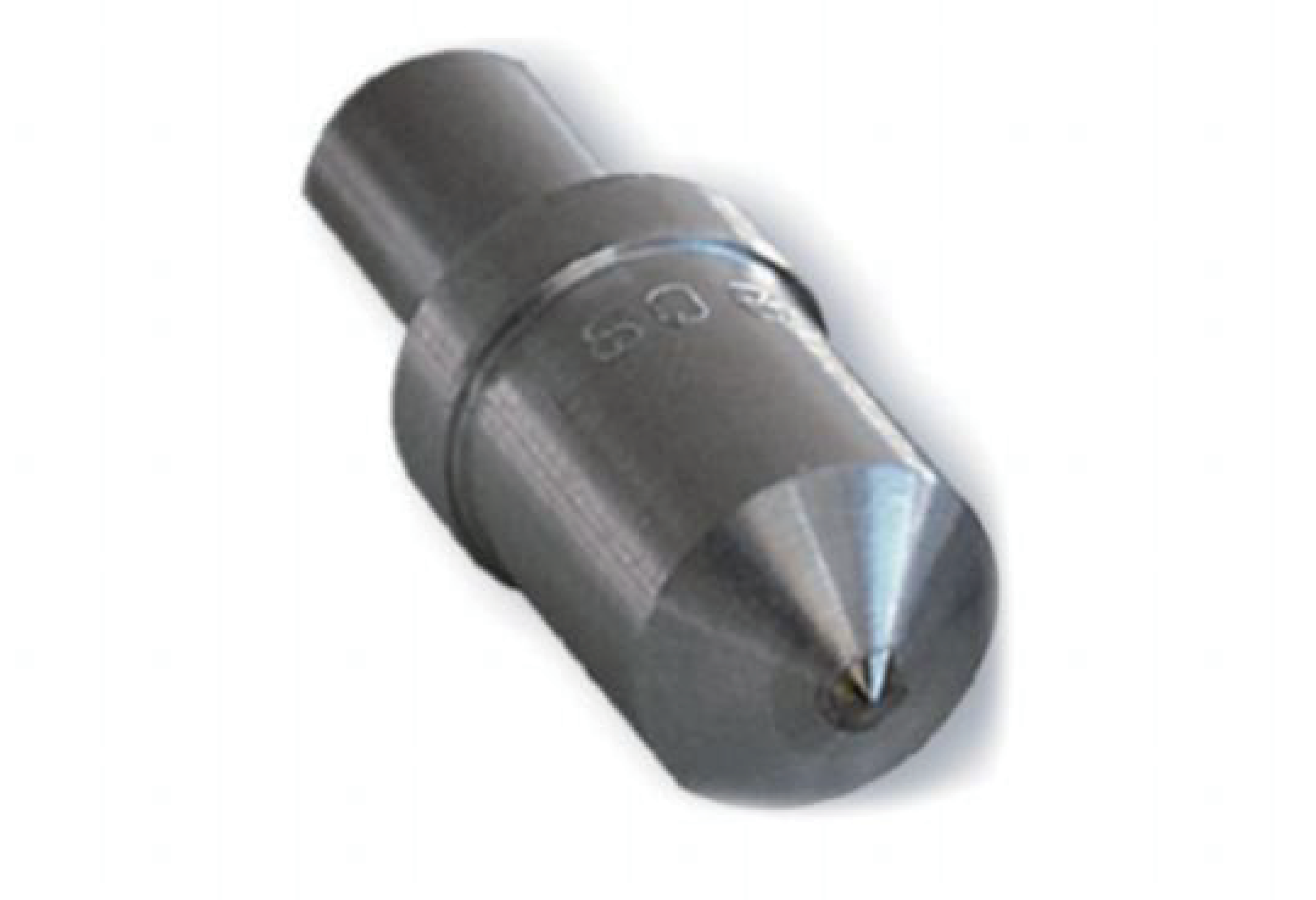

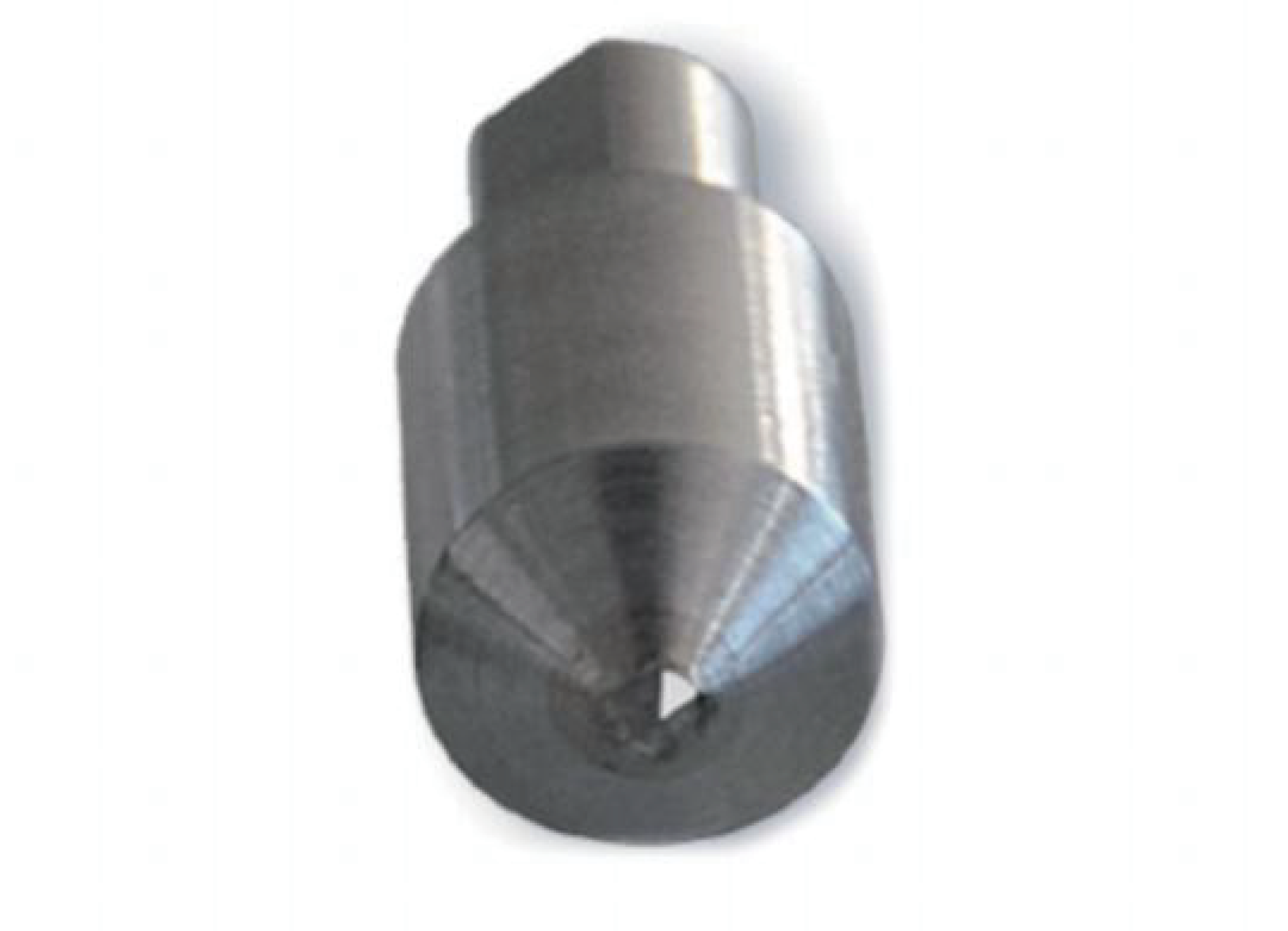

	1mm Brinell Steel Ball Code: BSB-1 Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester		Vickers Diamond Indentor Code: VDI 136° Diamond Indentor[Micro Vickers] 136° Diamond Indentor[Macro Vickers] Application: Micro/Macro Vickers Hardness Tester

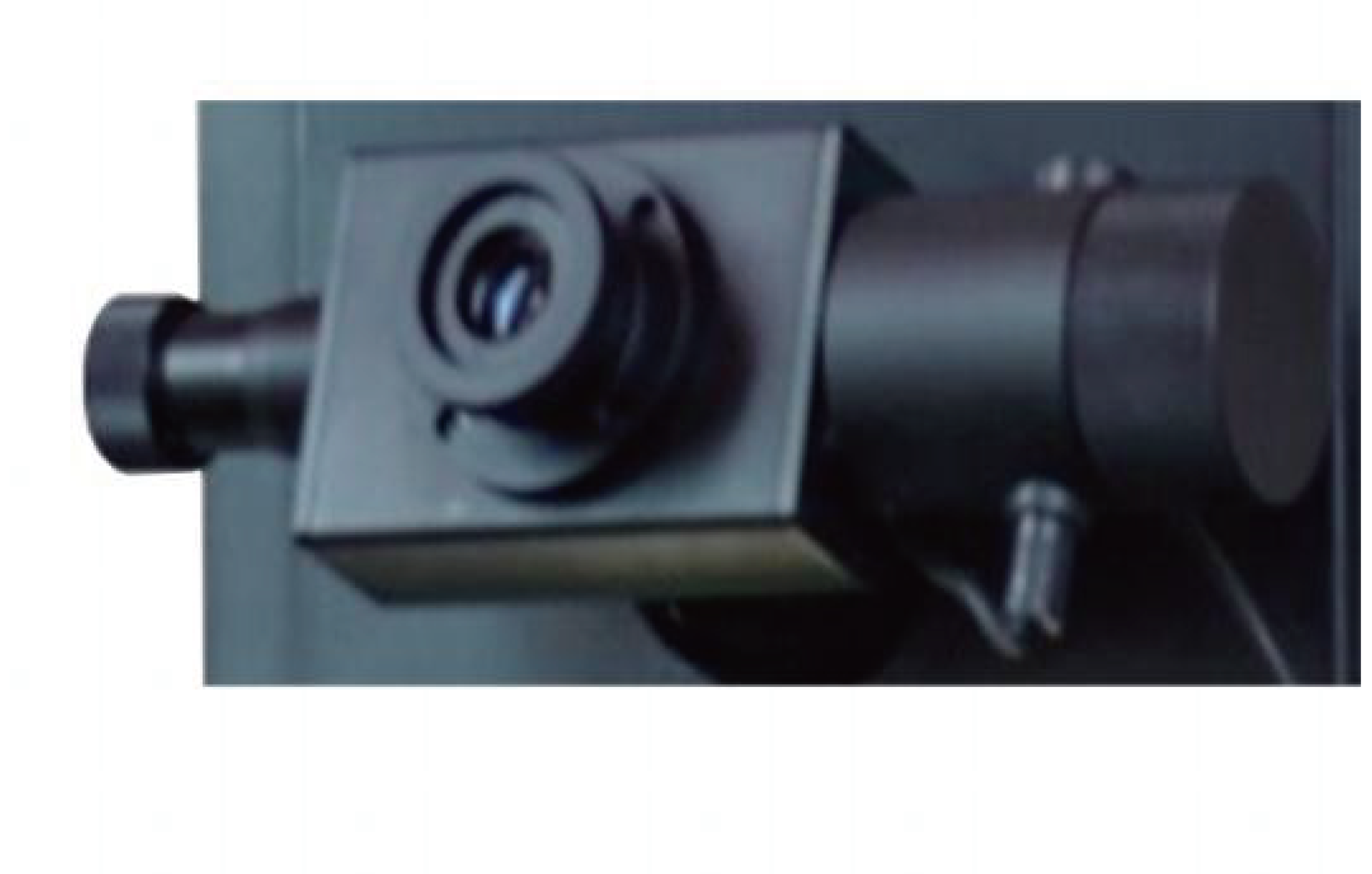

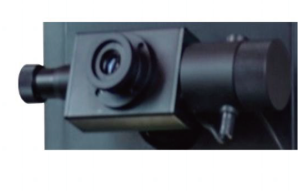

	Knoop Diamond Indentor Code: KDI 172°30'&136° Diamond Indentor Application: Knoop Hardness Tester		BRM-3 Reading microscope (with light source) Code: BRM-3 Specially used to measure the indentation size of Brinell hardness. Total magnification: 20X Eyepiece micrometer range: 0-6mm Maximum field of view of eyepiece: 9mm Effective measuring range: 0-6mm Minimum graduation value of eyepiece micrometer drum: 0.01mm Measurement accuracy: ±0.01mm Light source: LED green light Supply voltage: 4.5V Compatible machine: Brinell Hardness,Low Load Brinell Hardness Tester

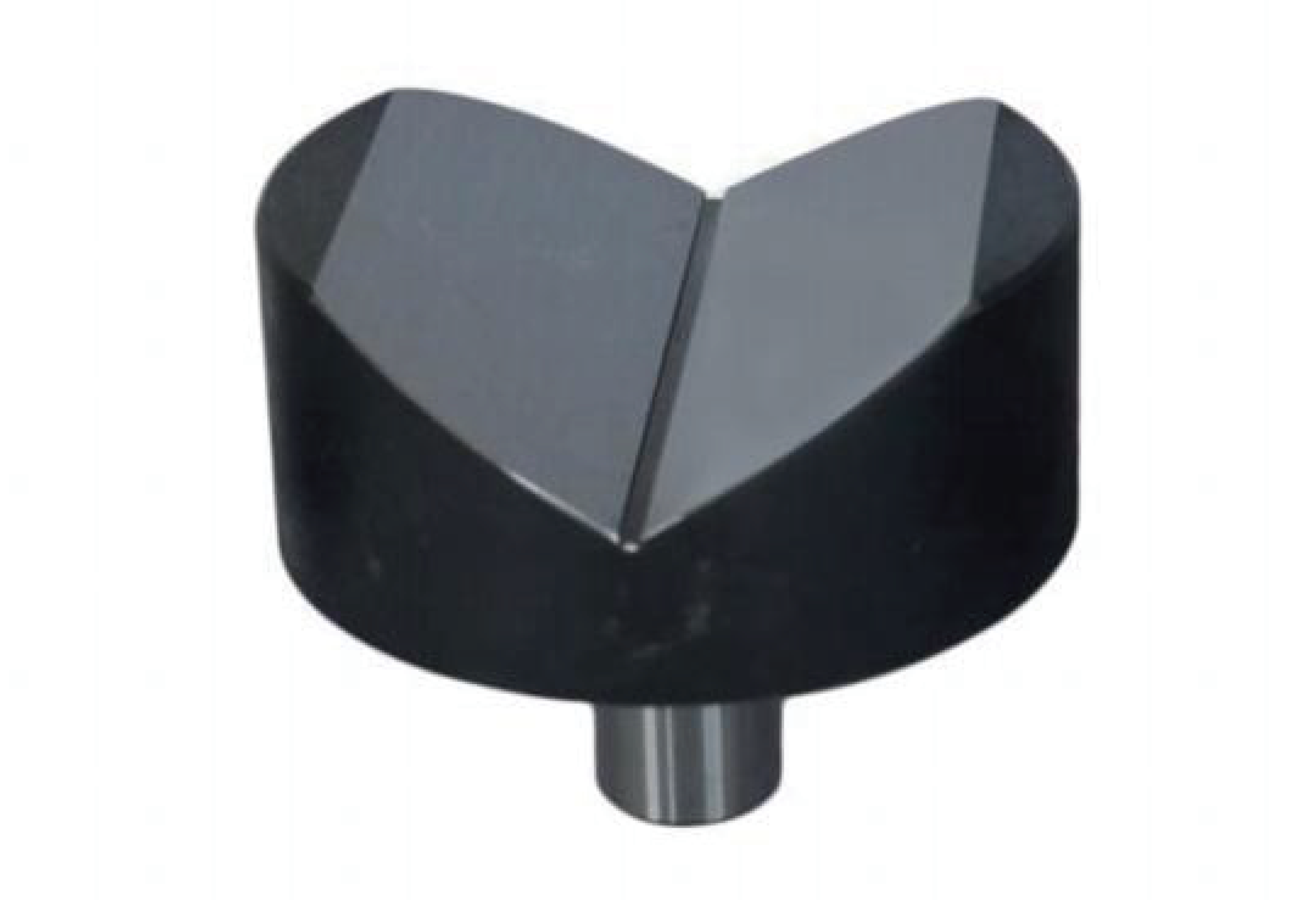

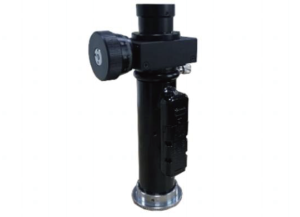

	20x Brinell Digital Eyepiece Code: BDE-20 Magnification: 20x Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester		Ø60mm Brinell V-Shape Anvil Code: BVA-60 Size: 060mm Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester

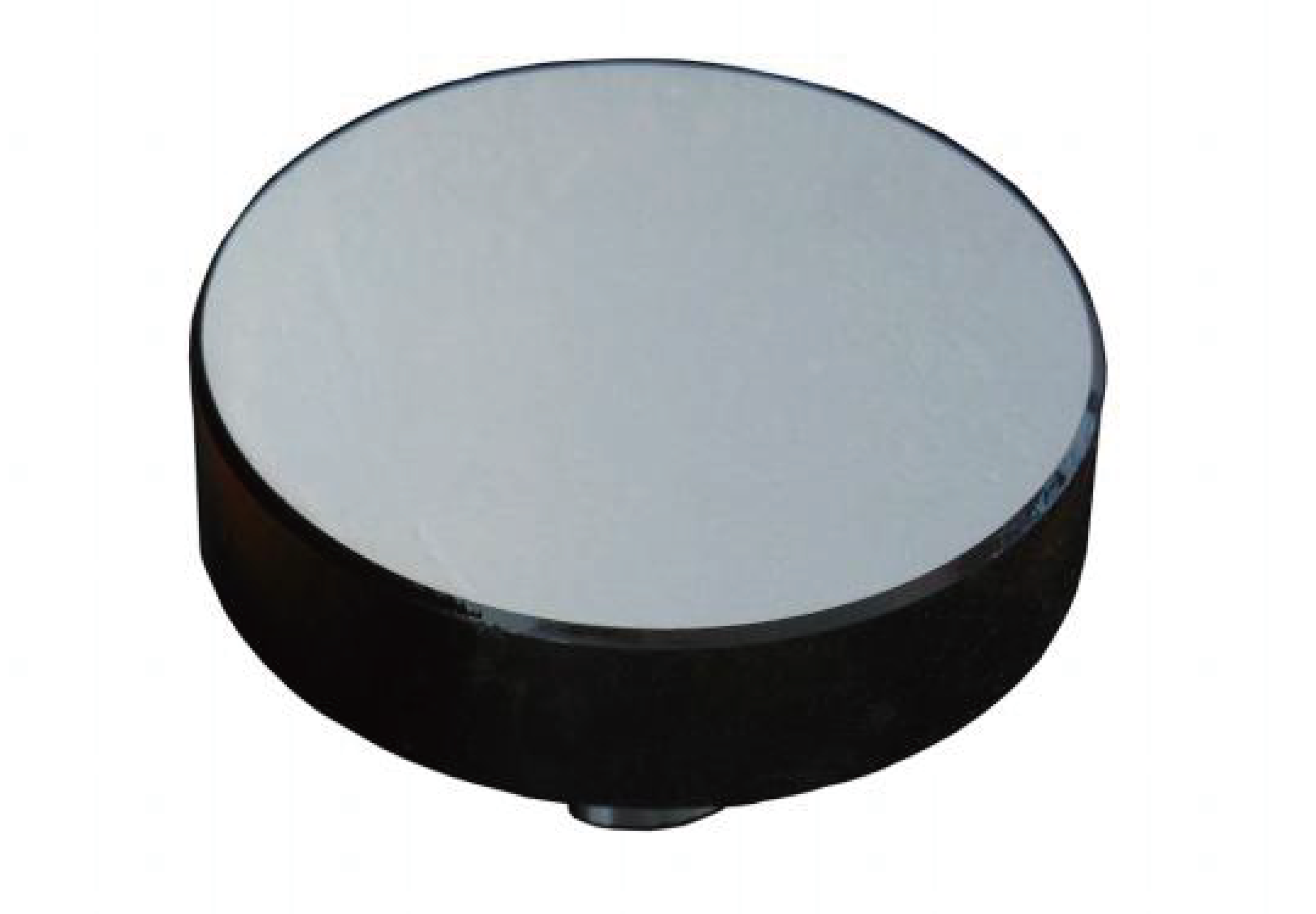

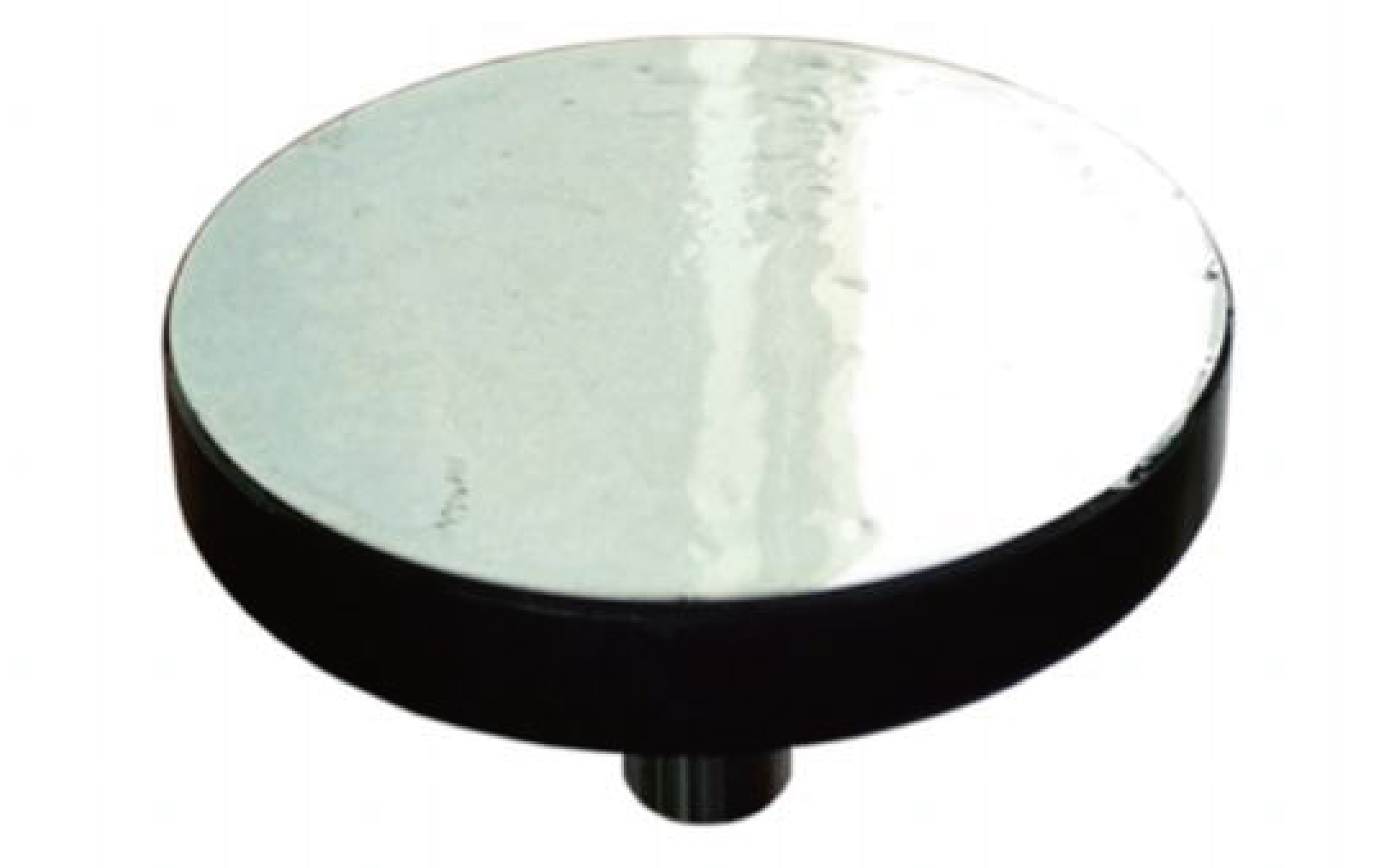

	80mm Brinell Flat Anvil Code: BFA-80 Size: Φ80mm Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester		Φ200mm Brinell Flat-Anvil Code: BFA-200 Size: 0200mm Compatible machine: Brinell Hardness,Low Load Brinell Hardness Tester
