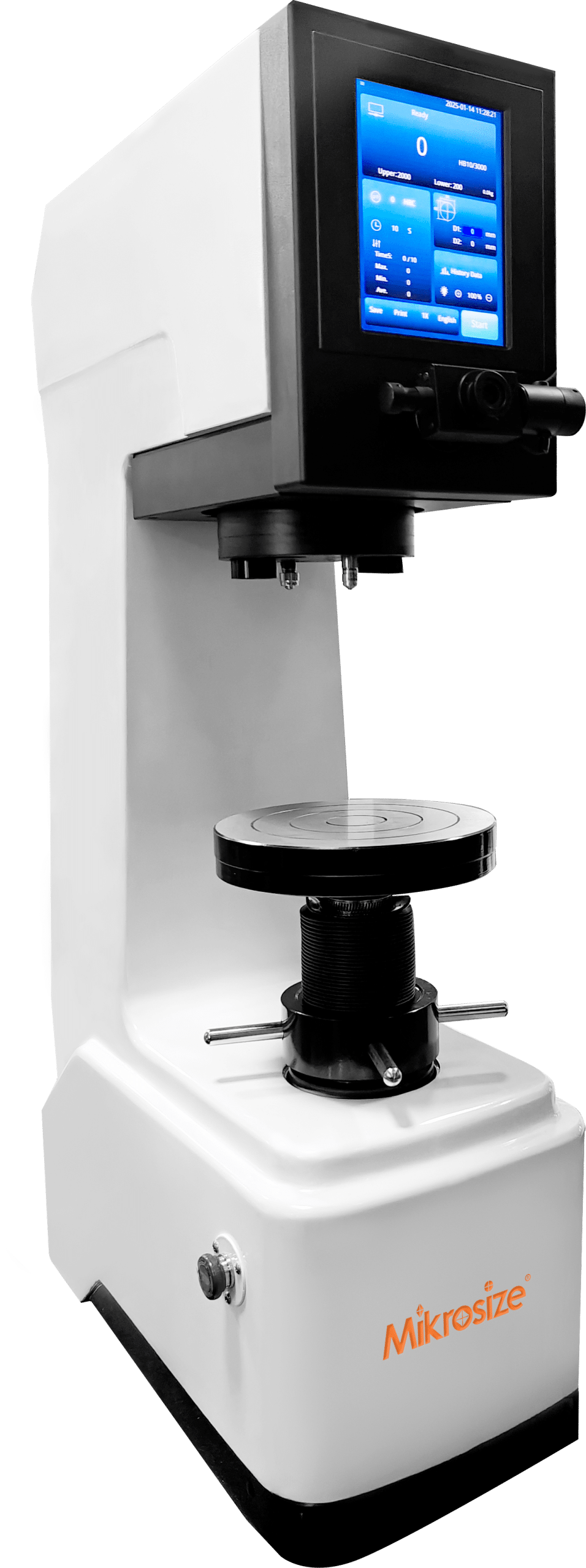

iBrin-3000CLD Digital Display Brinell Hardness Tester
Scan QR
Scan QR
IBrin 3000CLD图（1
IBrin 3000CLD图（2
IBrin 3000CLD DIGITAL HARDNESS TESTER3 INDENTORS2 LENS图（2）
IBrin 3000CLD DIGITAL HARDNESS TESTER3 INDENTORS2 LENS图（3）
IBrin 3000CLD DIGITAL HARDNESS TESTER3 INDENTORS2 LENS图（4）
IBrin 3000CLD DIGITAL HARDNESS TESTER3 INDENTORS2 LENS图（5）
Video Demonstration
Product Features & Applications
Product Features：
- Equipped with 11 test forces and 15 brinell hardness test scales for flexible selection.

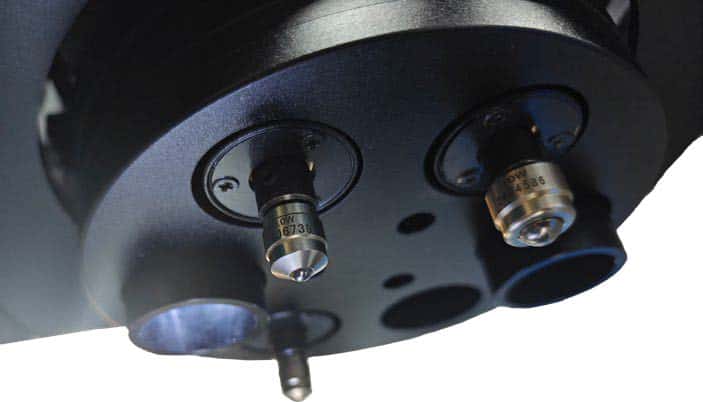

- 3 types of indenters pre-installed simultaneously.
- 2 sets of objectives, both capable of measuring indentation diameter.
- Automatic switching of objectives and indenters based on selected scale.
- Pre-set dwell time and adjustable indentation measurement light intensity.
- Real-time display of loading time.

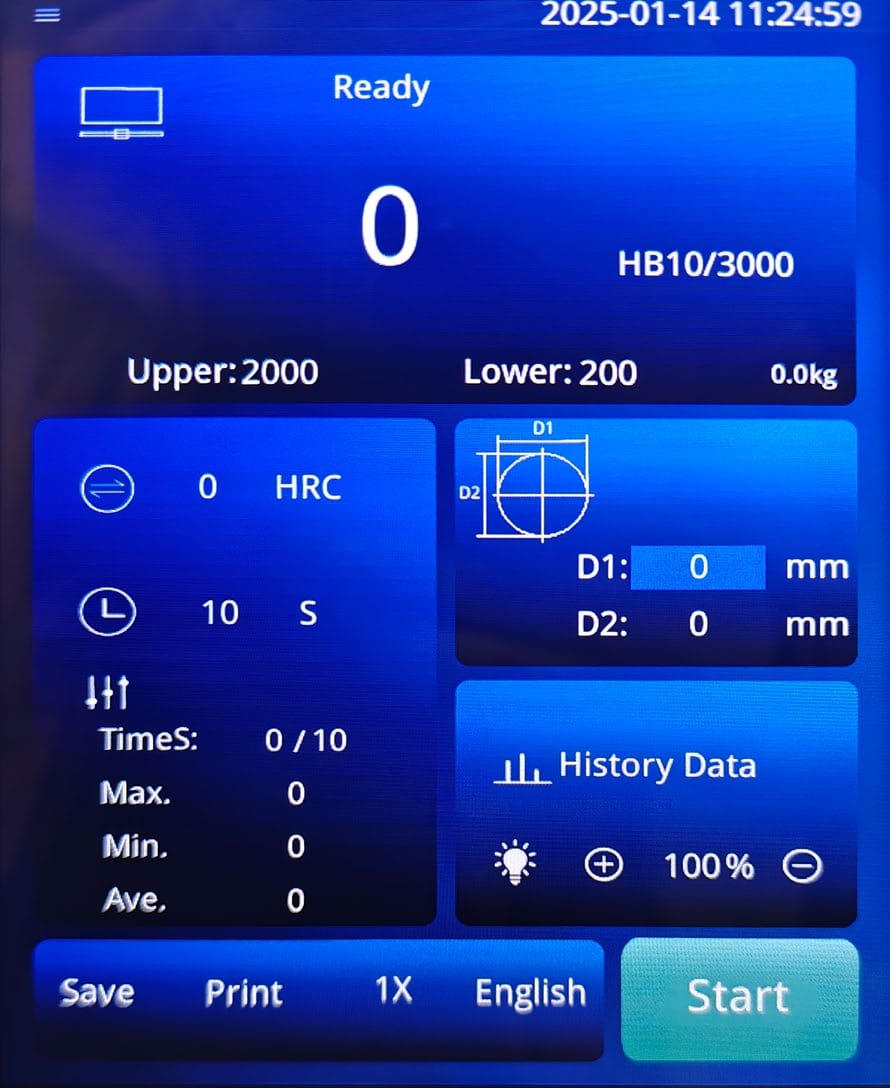

- Displays indentation size, hardness value, test count, etc.
- Converts between common hardness scales.
- Printable test results.
Product Applications：
- Inspects raw material hardness during machining for optimal tool/process selection.
- Verifies hardness of mechanical components (gears, bearings, bolts) for compliance.
- Ensures safety-critical hardness of power plant equipment(boilers, turbines, generators).
- Evaluates forging quality and process effectiveness.
Technical Specifications
| Name | Digital Automatic Turret Brinell Hardness Tester |
| Model | iBrin-3000CLD |
| Test Range | 8~650HBW |
| Test Force(N/kgf) | 31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf(306.45N , 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N) |

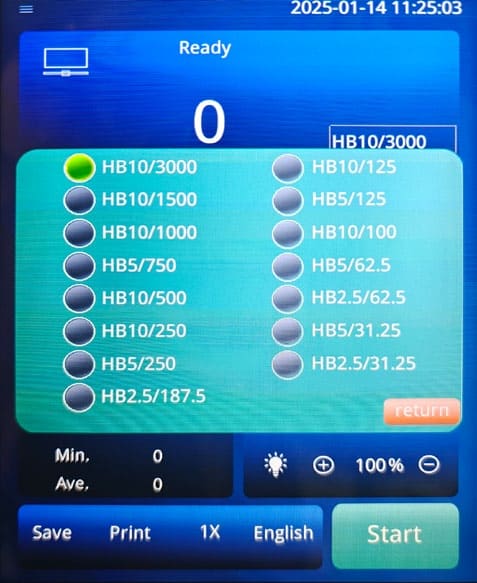

| Test Scales | HBW2.5/31.25、HBW2.5/62.5、HBW2.5/187.5、HBW5/31.25、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/125、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000 |
| Loading Method | Automatic Loading, Dwell, Unloading |
| Main Test Force Loading Time(s) | 2~8s |
| Dwelling Times | 0~99s Stepless Setting |
| Test Height(mm) | 270mm |
| Test Throat(mm) | 190mm |
| Indenter/Objective Transformation | Automatic Turret |
| Indentation Measurement | Digital Reading Microscope |
| Eyepiece | 20X |
| Objective | 1X, 2X |
| Display | 8-inch Industrial Touchscreen |
| Indenter Specifications | Φ2.5, Φ5, Φ10 Installed in the Same Turret |

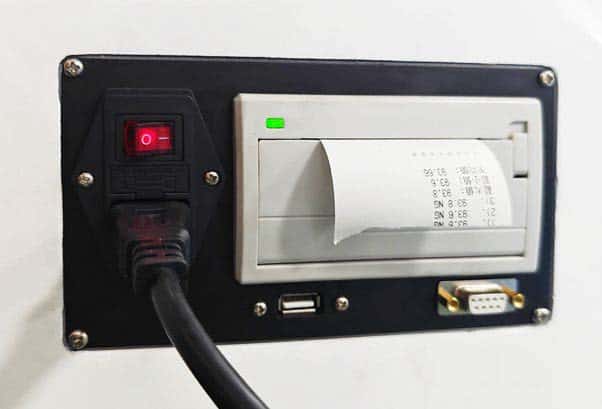

| Data Output | Built-in Printer, RS232 Interface |
| Light Source | LED |
| Light Adjustment | Stepless Brightness Control |
| Optical Path Switching | Automatic |
| Machine Dimension(mm) | 1000*595*350mm |
| Net Weight(kg) | 150kg |
| Power Supply | AC220V, 50Hz |
Standard Configuration
| Name | Quantity | |
| Machine Mainframe | 1 Set |  |
| 1X、2X Objectives | Each 1 | |
| Measuring Eyepiece | 1 PC ea. |  |
| Φ230mm Φ230mm Test Stage | 1 PC |  |
| 78mm Flat Test Stage | 1 PC |  |
| 60*90mm V-shape Test Anvil | 1 PC |  |
| Φ10mm Brinell Indenter | 1 PC |  |
| Φ5mm Brinell Indenter | 1 PC |  |
| Φ2.5mm Brinell Indenter | 1 PC |  |
| Test Block (150~250) HBW10/3000 | 1 PC |  |
| Hex Key | 1 PC | |
| Power Cable | 1 PC | |
| Fuse | 2 PCS | |
| Accessory Case | 1 PC | |
| Anti-dust Cover | 1 PC | |
| User Manual | 1 Set | |
| Certificate of Conformity | 1 Copy |
Optional Configuration
| Carbide balls |
| Various test anvils |
| Hardness test blocks |
| Internal spare parts |
| Additional indenters |
