iCut-110A/120A/130A Abrasive Metallographic Automatic Cutting Machine

Scan QR

×

Scan QR Code

https://mikrosize.com/product/icut-110a-120a-130a-abrasive-metallographic-automatic-cutting-machine/

Product Feature：

• Automatically controlled by Siemens PLC to drive the stepping motor, achieve precise automatic control in X, Y, and Z-axis.
• Cutting speed can be adjusted according to hardness of the material to achieve fastest cutting effect, providing very high reliability and control capabilities.

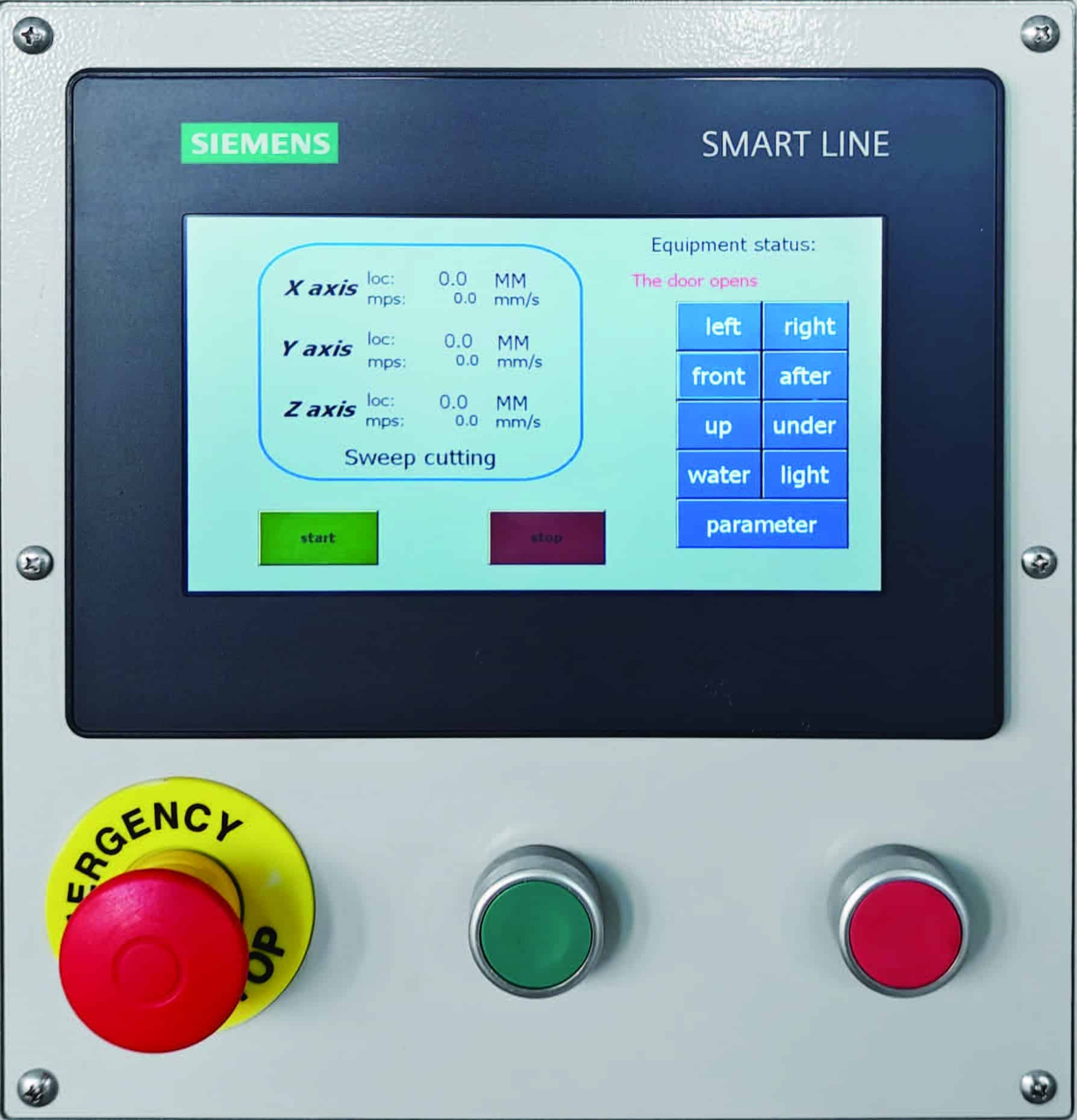

• The touch screen displays various cutting data, which is more accurate and easy to read. It allows for precise positioning, making it easier to position the workpiece.
• 3 cutting functions: chop cutting, flat push cutting, and sweep cutting.
• Electro-mechanical separation design for easy cleaning of the cutting chamber and the safety of the spindle motor, and the motor in the cutting chamber is protected by waterproof isolation.
• Observation window is installed on the safety protection door of the cutting chamber, allowing users to easily observe the entire cutting process of the sample.

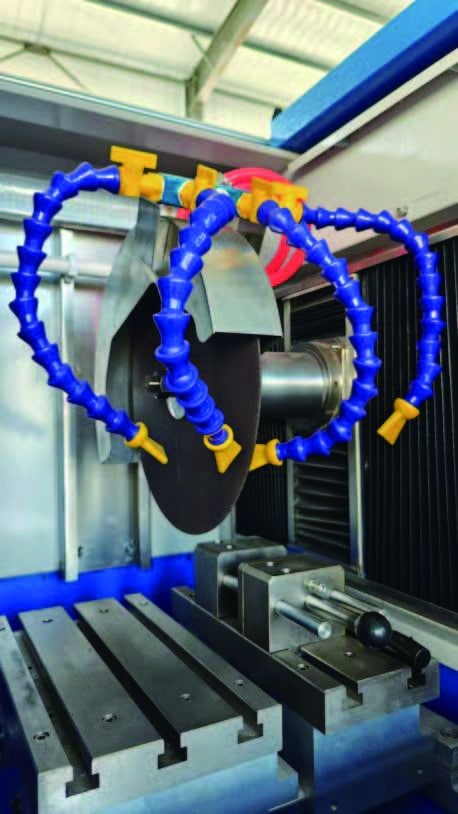

• The cutting chamber is equipped with LED lighting, providing effective illumination of the entire cutting area, increasing brightness and clarity within the workspace.
• Low noise, convenient operation, attractive appearance, and safety in use.

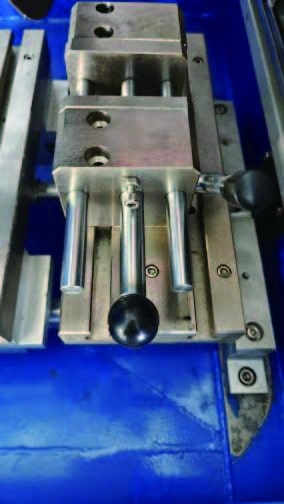

•  Vertical machine consists of an upper part (safety cover), a middle part (frame), a right sliding door, a side door, a lower frame (electrical box), fixtures, a flushing water gun, and an independent cooling water tank.
•  Easier to maintain machine parts and handle large workpieces. The sliding door and hinged door provide more space and unrestricted access, making it easier to load large workpieces into the correct position. Workpieces can also be loaded into the cutting chamber from the top, front, and left sides.
• Fully enclosed structure with a transparent protective cover for observation during cutting.

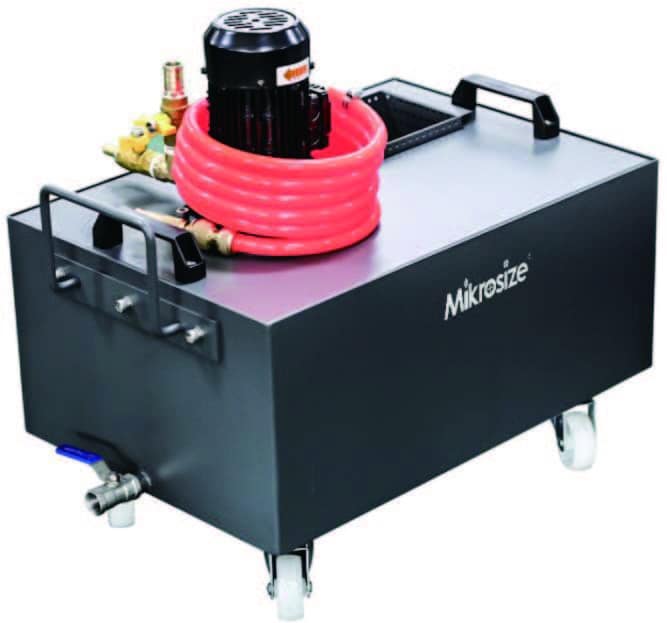

• ●Cooling water system for storing coolant.

Product Application：

• Designed for large workpieces and high-capacity cutting.
• It is one of the essential devices for sample preparation in laboratories.
