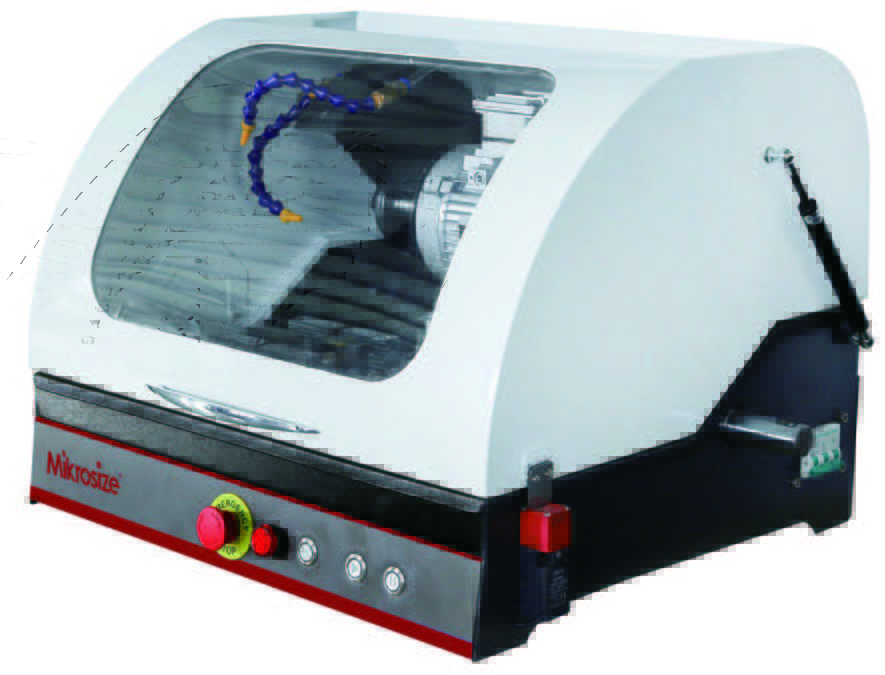

iCut-60M Metallographic Abrasive Cutting Machine
Scan QR
Scan QR
Product Features & Applications
Product Features:
- iCut-60M Metallographic Abrasive cutting machine is suitable for cutting samples of various metal and non-me-tallic materials in order to observe the material metallographic and petrographic organization.
Product Applications:
- The machine is equipped with a cooling system to take away the heat generated during cutting
- The cutting machine uses a high-speed rotating cutting blade to cut the sample.
- The machine has the advantages of convenient operation and easy maintenance, and is superior to similar domestic products.
- Cutting range and transmission power are also greater than the domestic similar products, is the best choice of sample cutting equipment.
Technical Specifications
| Product Name | Metallographic Abrasive cutting machine |
| Model | iCut-60M |
| Cutting Capability | ¢60mm |
| Rotation Speed | 2800 rpm |
| Motor Power | 2.2kw |
| Input Voltage | Three-phase 380V, 50-60Hz |
| Cut-off Wheel | 250*2*32mm |
| Machine Dimension | 710*645*470mm |
| Packing Dimension | 730*760*620mm |
| Net Weight | 86kg |
| Gross Weight | 102kg |
| Water Tank Dimension | 470*370*300mm |
| Packing Dimension of Water Tank | 540*460*460mm |
| Net Weight of WaterTank | 15kg |
| Gross Weight of Water Tank | 25kg |
Standard Configuration
| Item | Specification | Quantity |
| Mainframe | iCut-60M | 1 set |
| Instruction Manual | iCut-60M | 1 copy |
| Product Certificate | iCut-60M | 1 copy |
| Packing list | iCut-60M | 1 copy |
| Wrench | 12-14mm | 1 pc |
| Wrench | 36mm | 1 pc |
| Cut-off Wheel | 250mm | 2 pcs |
| Water Inlet Pipe | iCut-60M | 1 pc |
| Water Outlet Pipe | iCut-60M | 1 pc |
| Pipe Clamp | iCut-60M | 2 pcs |
| Water Tank | Include water pump | 1 set |
