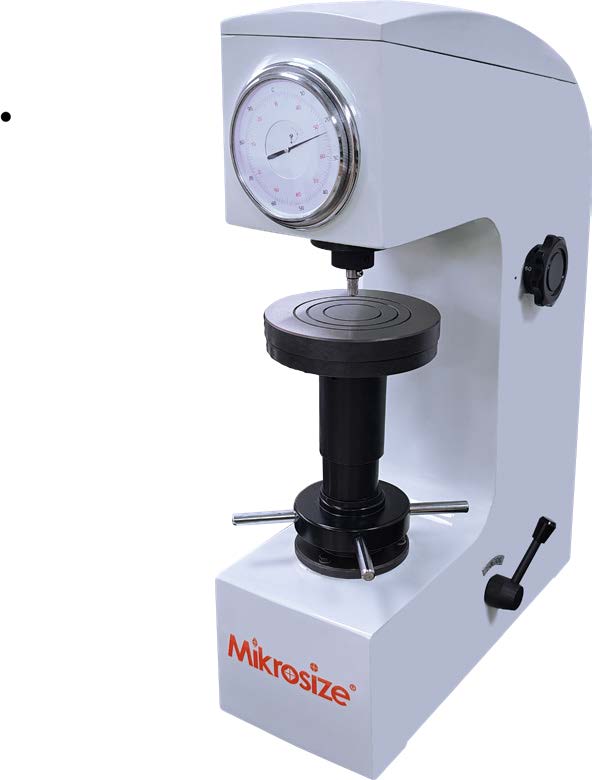

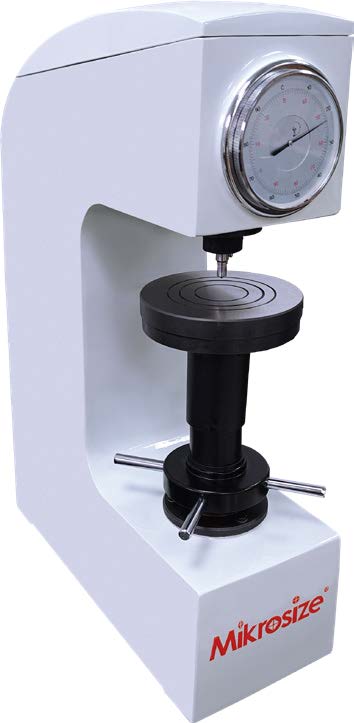

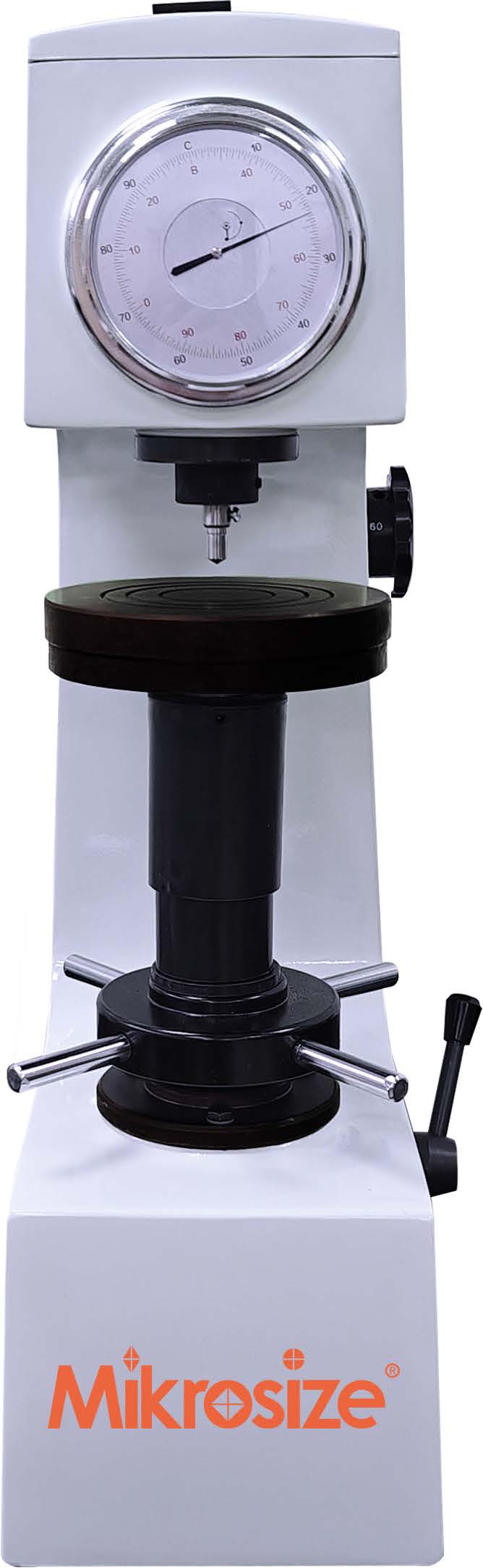

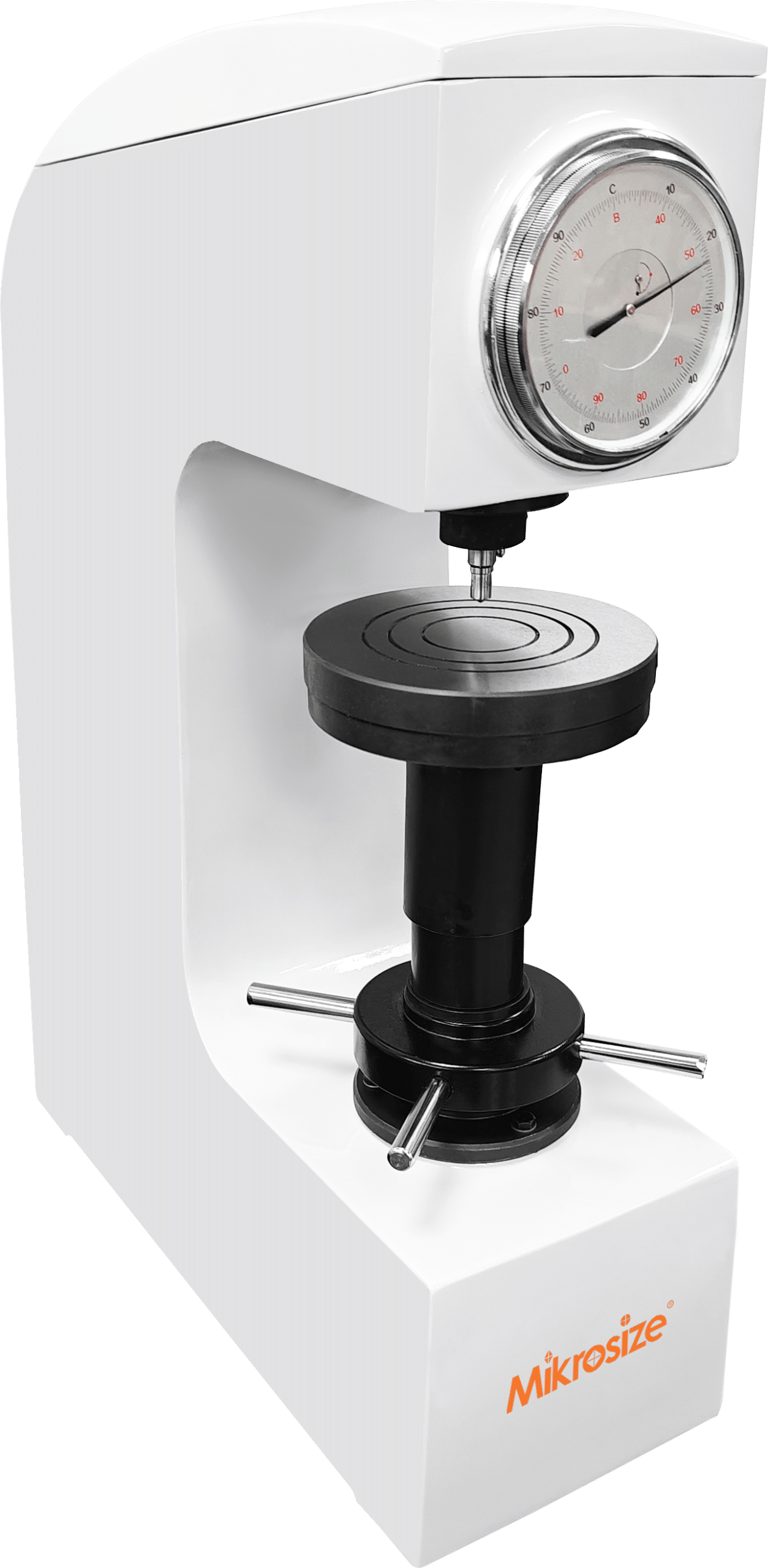

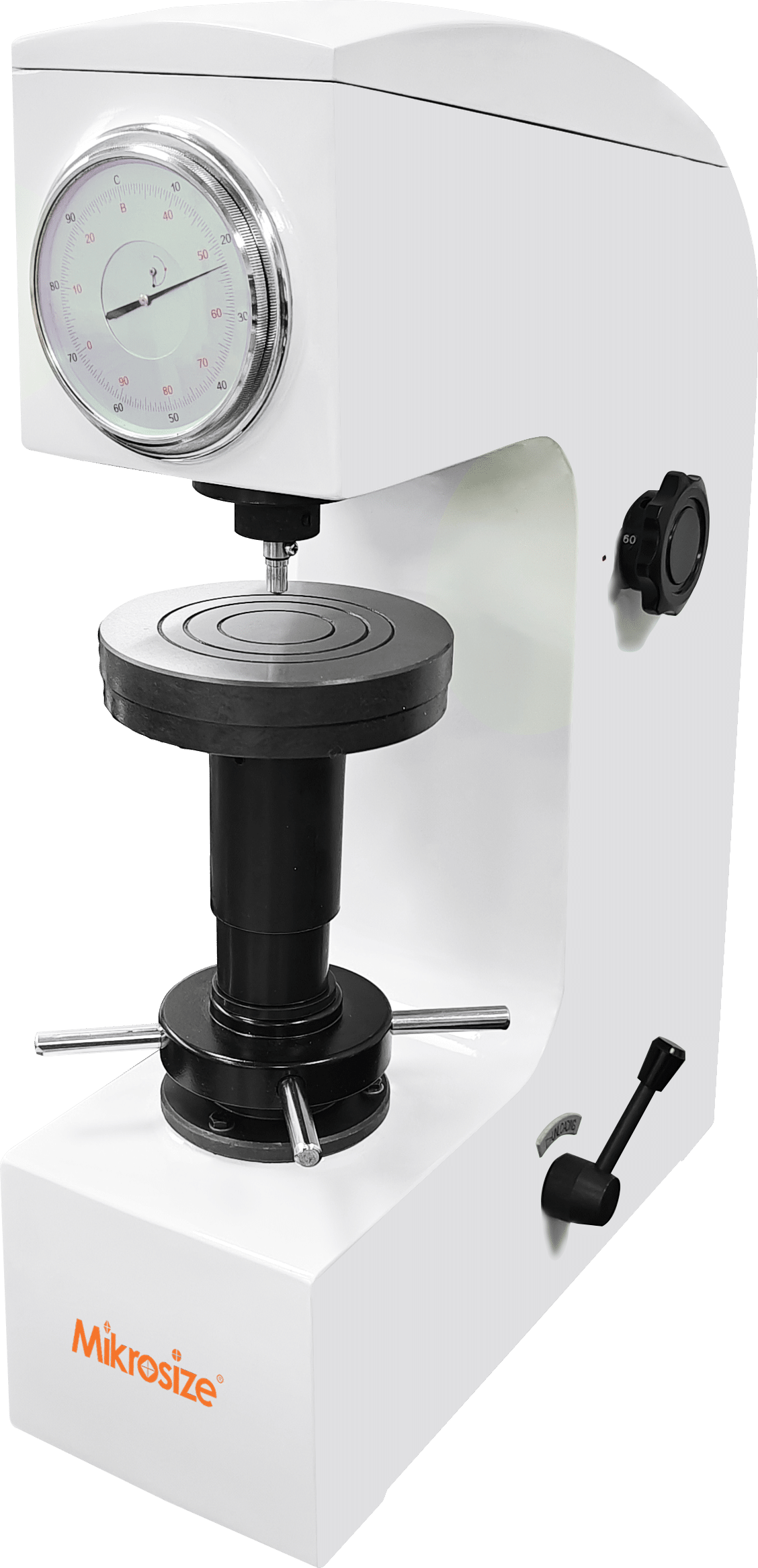

iRocky-150M Manual Rockwell Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/irocky-150m-manual-rockwell-hardness-tester/

Ptoduct Features:

• Pure mechanical structure, no external power supply required
• Large dial with direct pointer reading, clear scale, resolution up to 0.5HR, intuitive and fast reading

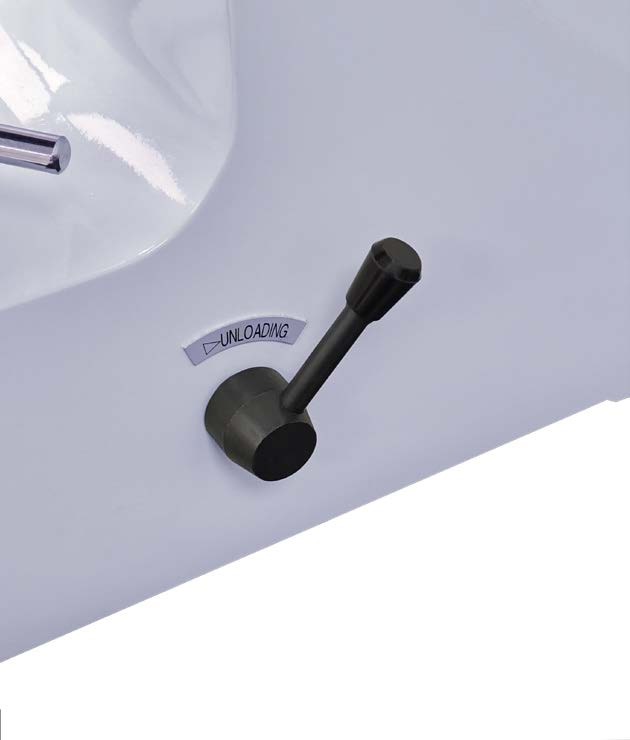

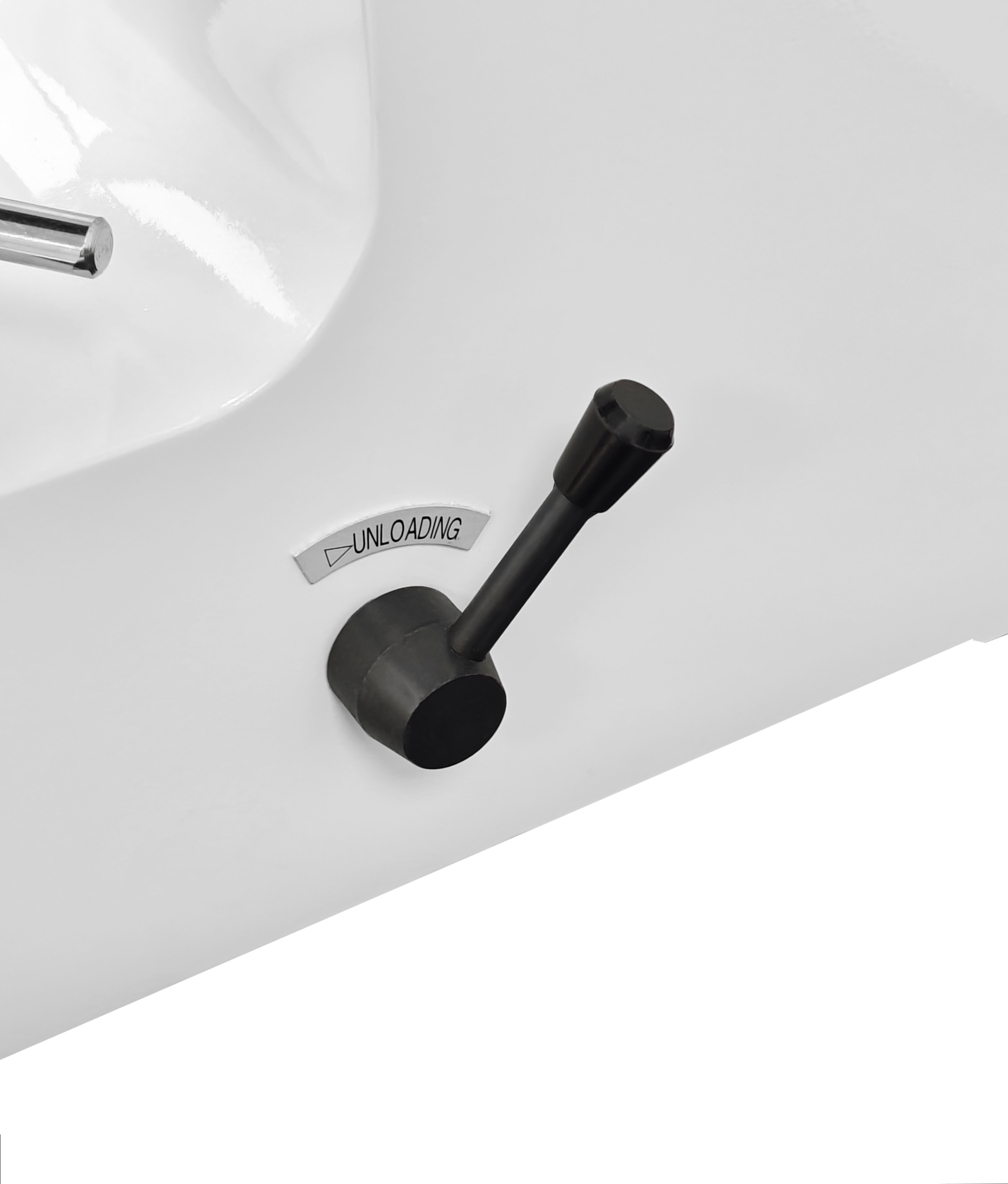

• Integrated single-handle operation; manual completion of initial test force application, main test force loading and unloading with a simple process and easy operation

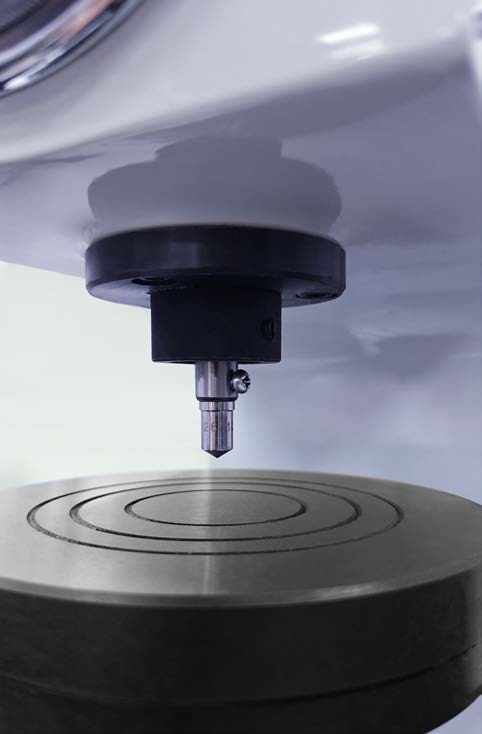

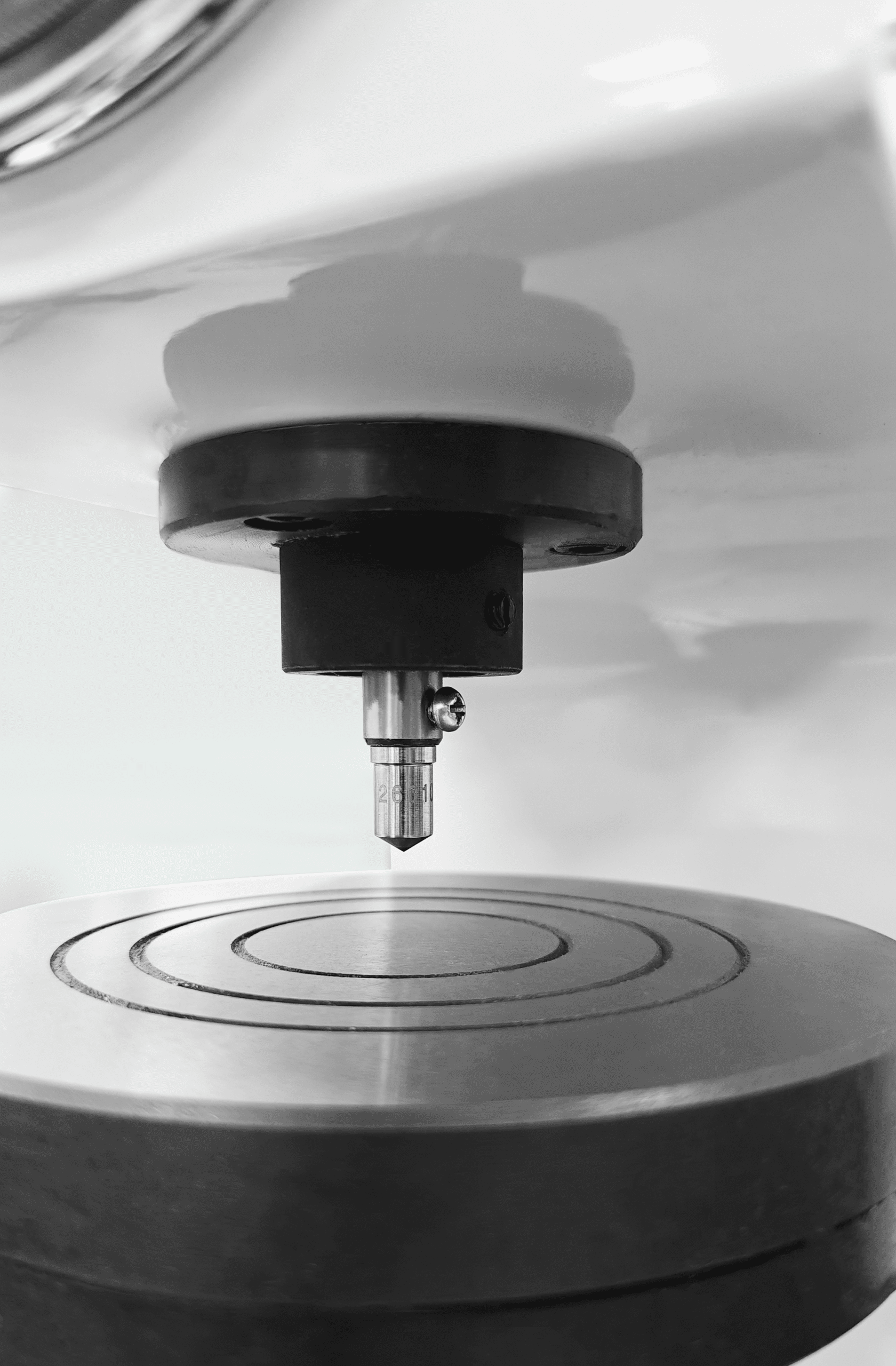

• High-precision spindle and suspended weight system for stable force transmission and accurate, reliable measurement results
• Supports multi-scales of HRA/HRB/HRC, suitable for hardness testing of various materials such as quenched steel, cast iron and non-ferrous metals

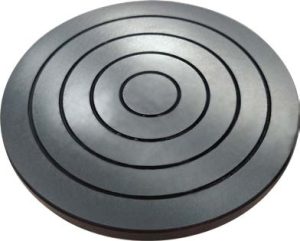

• Equipped with a variety of test tables, adaptable to flat, curved and shaft workpieces
• Maximum allowable workpiece height: 170mm; Maximum distance from indentation center to machine wall: 130mm
• Overall dimensions: 457*240*629mm, moderate volume for easy movement
• Complies with the following standards: GB/T 230, JJG 112, ISO 6508, ASTM E18, etc.

Product Applications:

• Incoming inspection of metal materials

Used for hardness testing of raw materials such as steel, cast iron, non-ferrous metals and alloys to quickly determine whether the material meets production and procurement standards.

• Quality control of heat-treated workpieces

Suitable for heat-treated parts such as quenched, tempered, annealed and normalized workpieces; online hardness monitoring to ensure the workpiece strength and wear resistance meet the standards.

• Finished product delivery and sampling inspection

Conduct batch sampling inspection and delivery testing on finished products such as shafts, molds, gears, plates and hardware parts to ensure qualified and stable product performance.
