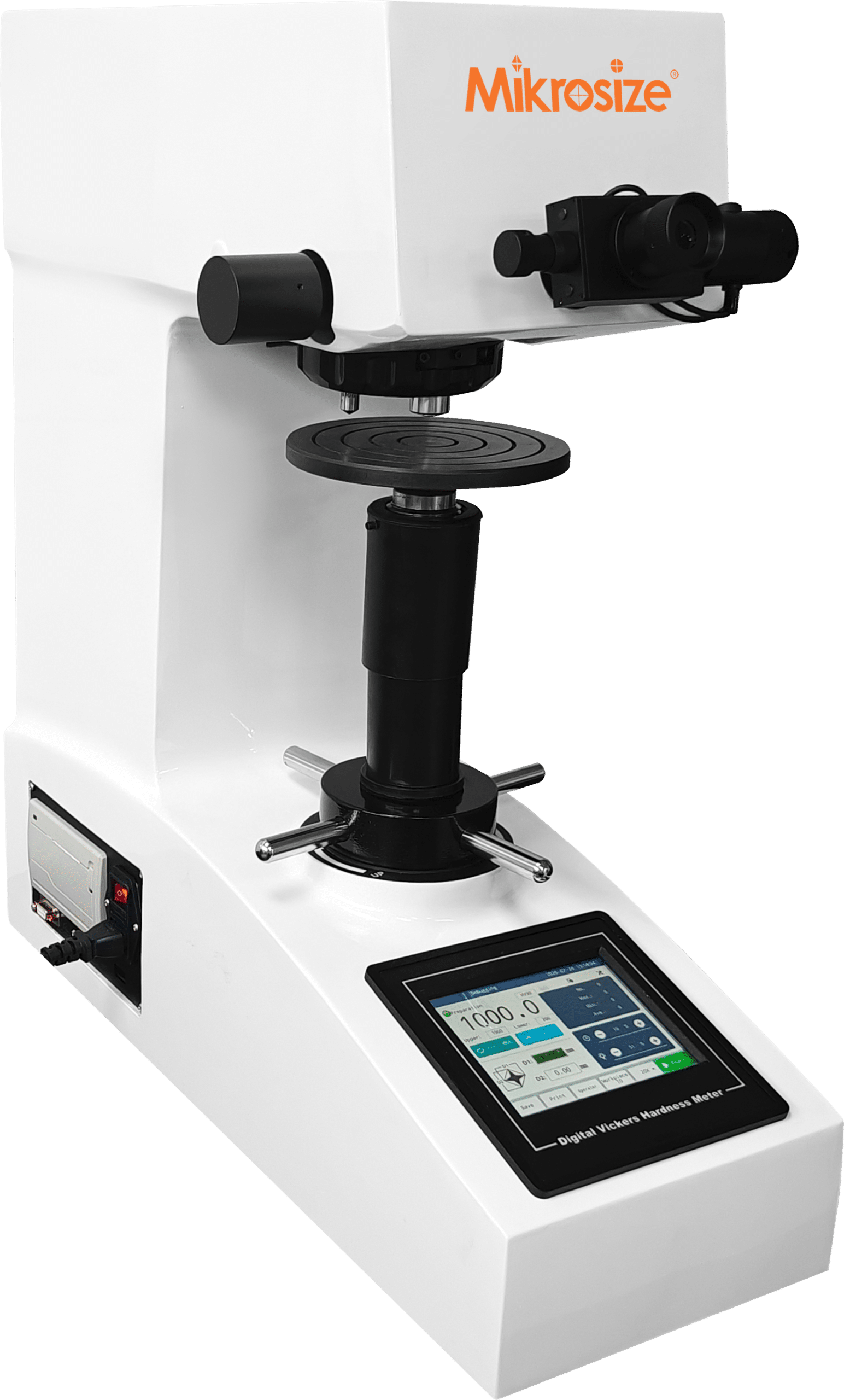

iVicker-5T-10T-30T-50T Digital Automatic Turret Vickers Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/ivicker-5t-10t-30t-50t-digital-automatic-turret-vickers-hardness-tester/

Product Features：

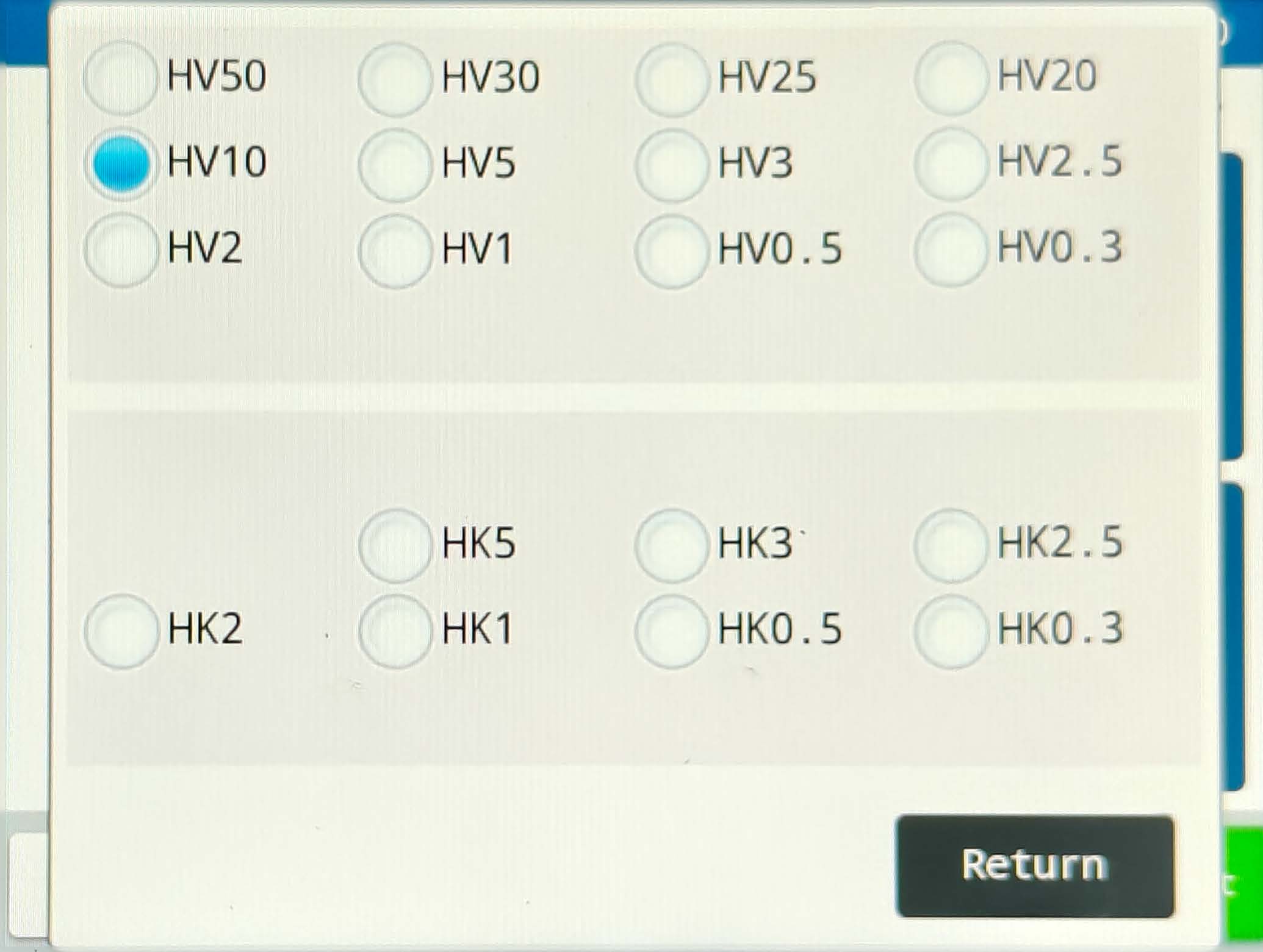

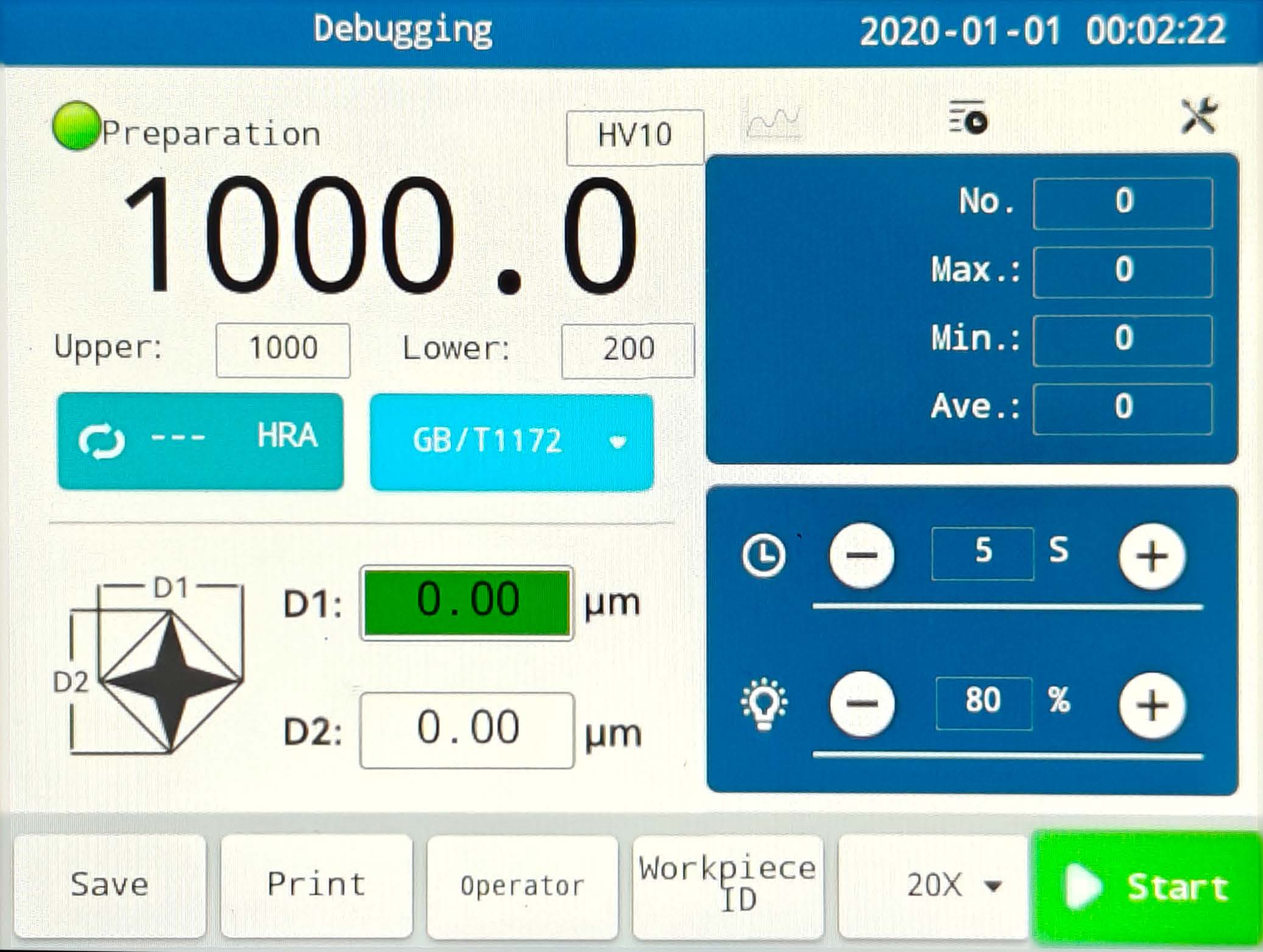

• Equipped with an 8-inch color LCD touch screen for easy operation
• 8 levels of test force: 0.01 kgf, 0.025 kgf, 0.05 kgf, 0.1 kgf, 0.2 kgf, 0.3 kgf, 0.5 kgf, 1 kgf
• Closed-loop loading control system ensures precise force application
• Automatic loading and unloading of test force
• Supports both Vickers and Knoop hardness testing methods (Knoop indenter optional)
• Supports hardness conversion function
• External halogen light source with adjustable brightness, mounted on the left side of the unit

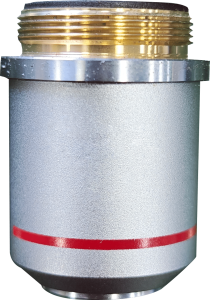

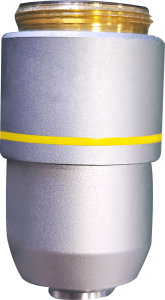

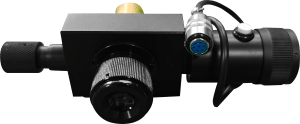

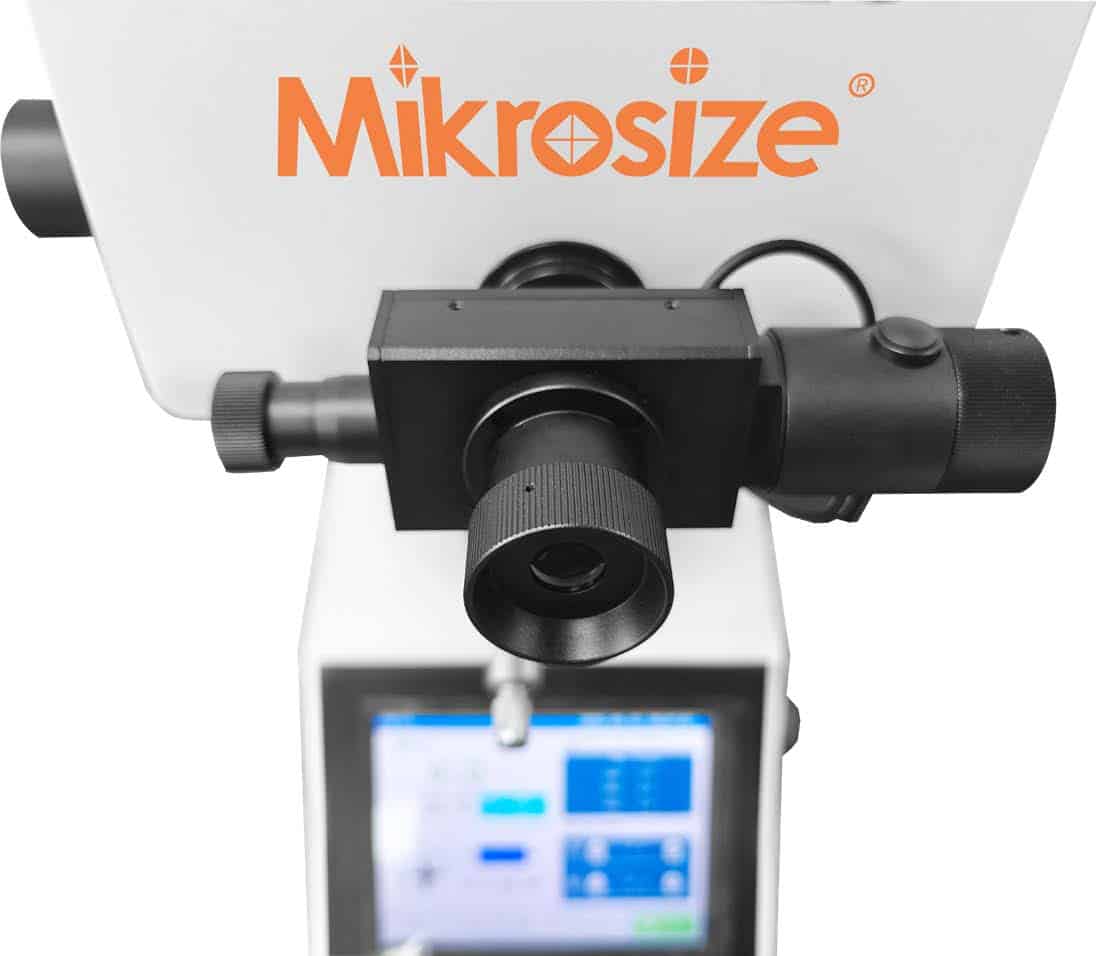

• Equipped with 10× micrometer eyepiece, combined with 10× and 20× objectives, providing total magnifications of 100× and 200×
• Measurement results displayed directly upon completion of indentation size measurement

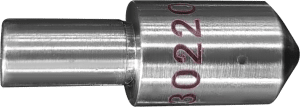

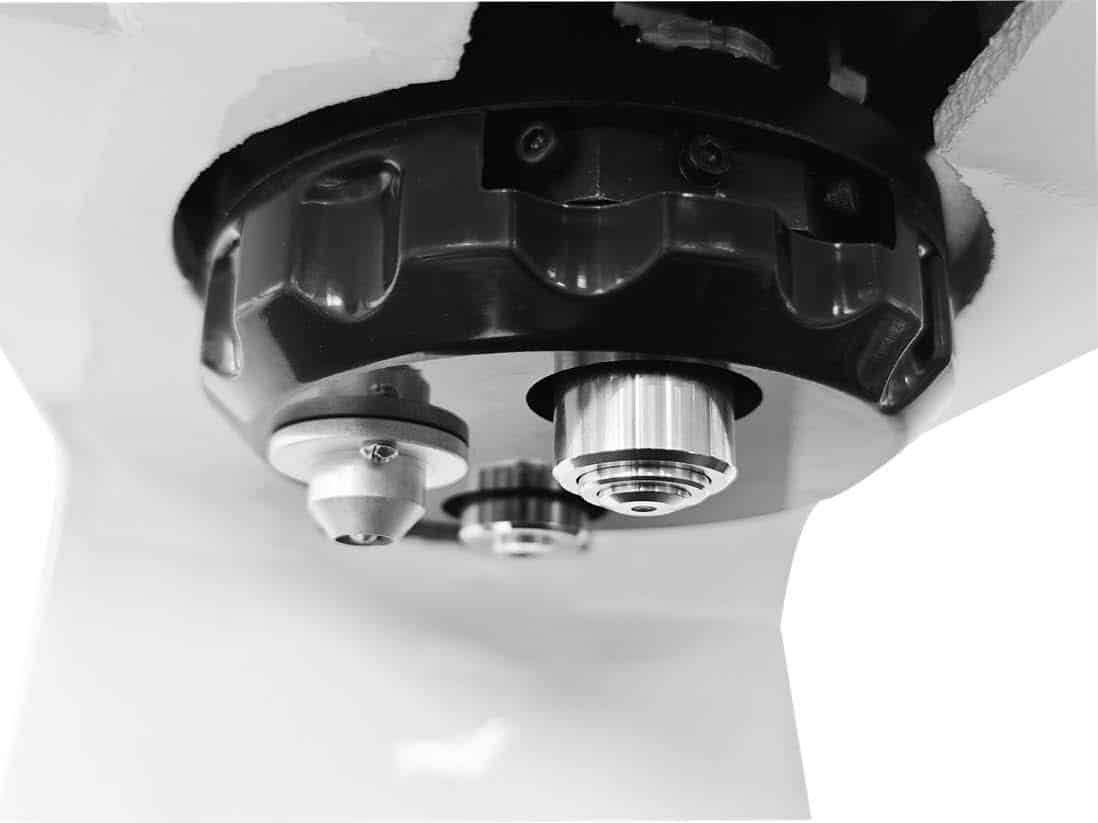

• 3-position automatic turret, fitted with 1 Vickers diamond indenter and 2 objectives (10× and 20×)

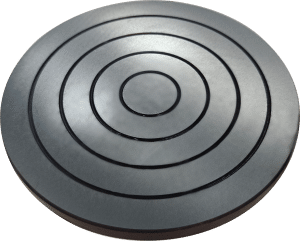

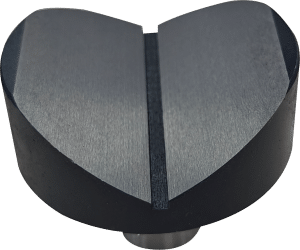

• Supplied with 3 specimen stages: φ150 mm stage; φ75 mm stage; φ75 mm V-shaped stage

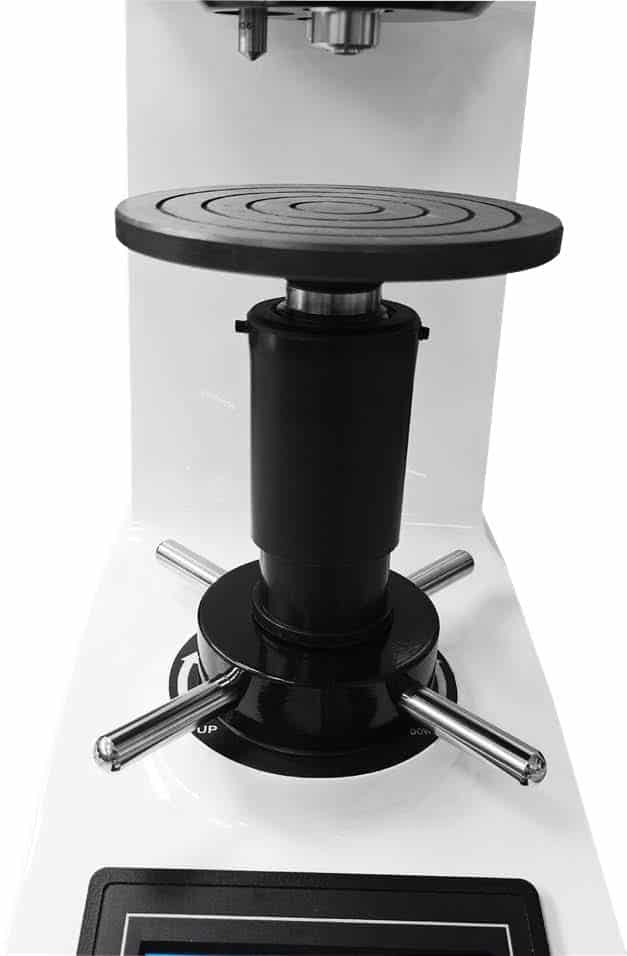

• Lifting column adopts screw rod design for smooth and stable elevation
• Built-in energy-saving mode; light source automatically turns off after 10 minutes of inactivity

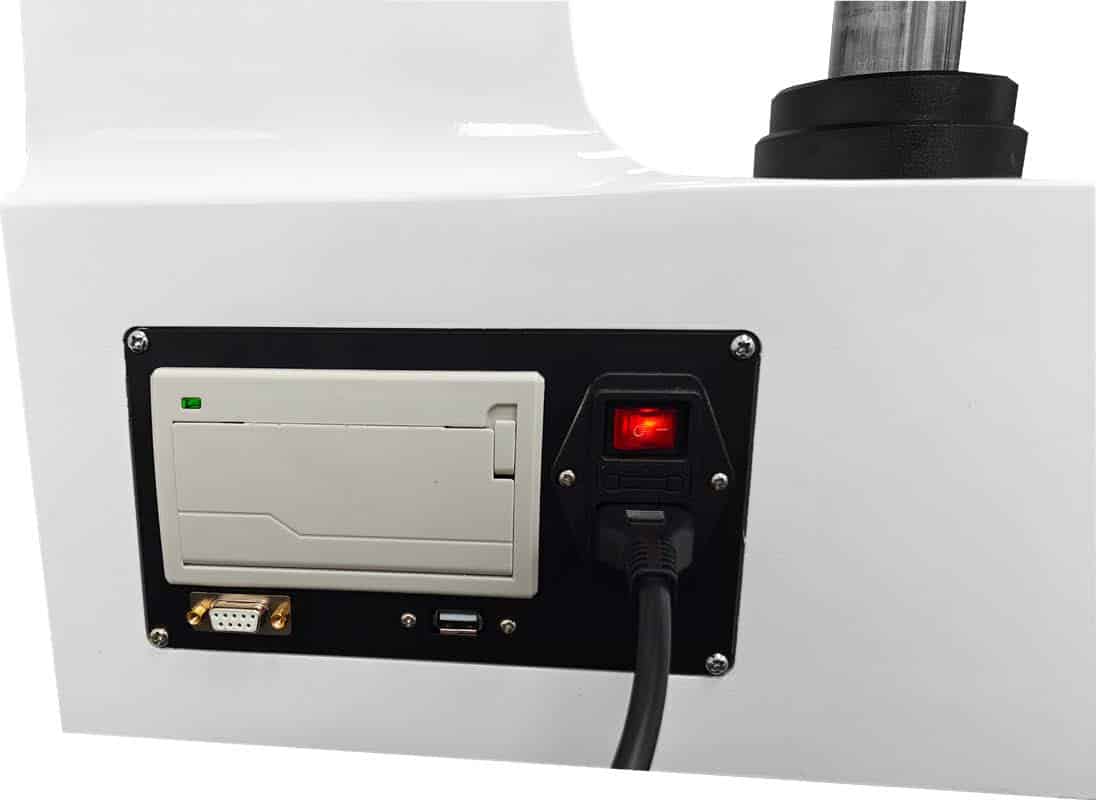

• Built-in thermal printer for quick data printout
• Compliant with standards: GB/T 4340; ISO 6507; ASTM E384, etc.

Product Applications：

• Materials Science

Hardness testing of various metallic materials (e.g., steel, aluminum alloys, copper alloys, etc.) and non-metallic materials (e.g., ceramics, glass, rubber, etc.). By understanding the hardness properties of materials, their processability and service performance can be evaluated.

• Manufacturing and Processing Industries

Used for hardness inspection of workpieces to ensure product quality complies with standards.

• Research on Mechanical Properties of Materials

Employed in the measurement of mechanical parameters such as elastic modulus, Poisson’s ratio, etc.
