MBRV-187.5E Universal Hardness Tester
Scan QR
Scan QR
MBRV 187.5E Universal Hardness Tester1 scaled
Product Features & Applications
Product Feature:
- MBRV-187.5Eis a multi-functional universal hardness tester featuring three test methods (Brinell, Rockwell, Vickers) and seven test forces, meeting diverse testing requirements.
- After applying the preliminary test force manually, the loading, dwell and unloadingof the total test force are completed automatically.
- With wide application and easy operation, it is an essential hardness tester for industrial and mining enterprises as well as research institutes.
- Integrated cast iron structure, electric test force application.
- Stable structure and convenient operation.
Product Application:
- Suitable for hardness measurement of quenched, surface-quenched steel, cemented carbide, cast iron, non-ferrous metals, various normalized and annealed steels, hardened thin steel sheets;also suitable for soft metals, surface heat treatment and chemical treatment parts.
Technical Specifications
| Model | MBRV-187.5E |
| Rockwell test force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Brinell test force | 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N) |
| Vickers test force | 30kgf (294.2N), 100kgf (980.7N) |
| Indenter Specifications | Diamond Rockwell indenter, diamond Vickers indenter;φ1.588mm, φ2.5mm, φ5mm ball indenters |
| Hardness reading | Rockwell: dial reading; Brinell, Vickers: look up conversion tables |
| Microscope magnification | Brinell: 37.5×; Vickers: 75× |
| Min. division of micrometer eyepiece | Brinell: 4μm; Vickers: 2μm |
| Hardness resolution | Rockwell: 0.5HR; Brinell, Vickers: table lookup |
| Dwell Time | 2~60s |
| Test Height | Rockwell: 185mm; Brinell: 100mm; Vickers: 115mm |
| Test Throat | 165mm |
| Power Supply | AC220V，50Hz |
| Standards Complied | ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 ISO 6506，ASTM E10，JIS Z2243，GB/T 231.2 ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2 |
| Dimensions | Machine Size:520×240×700mm，Packing Size: 650×370×950mm |
| Weight | Net Weight: 80kg，Gross Weight: 105kg |
Standard Configuration
| Name | Qty | Name | Qty |
| Main Frame | 1 pc | Diamond Rockwell Indenter | 1 pc |
| Diamond Vickers indenter | 1 pc | φ1.588mm, φ2.5mm, φ5mm ball indenter | 1 pc each |

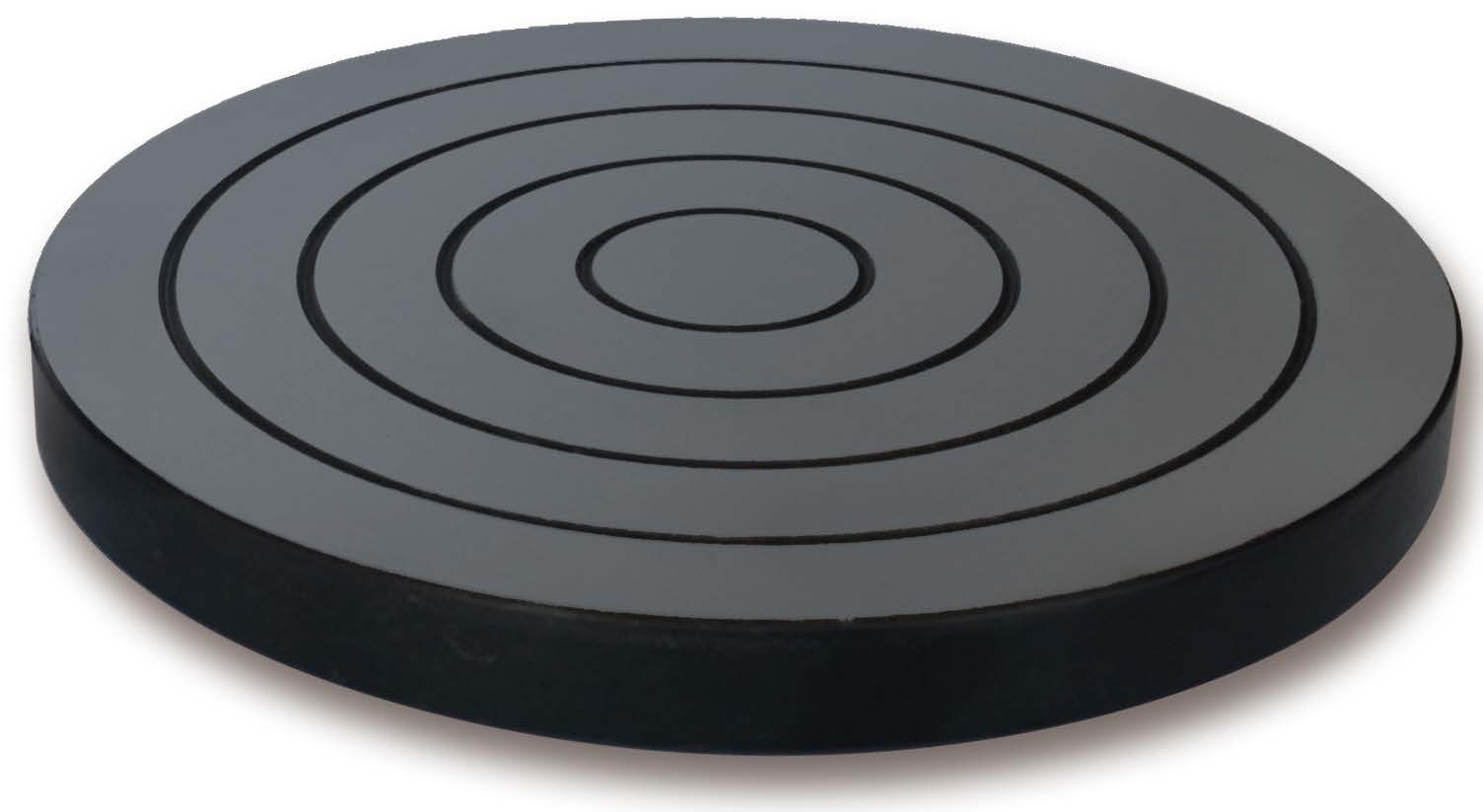

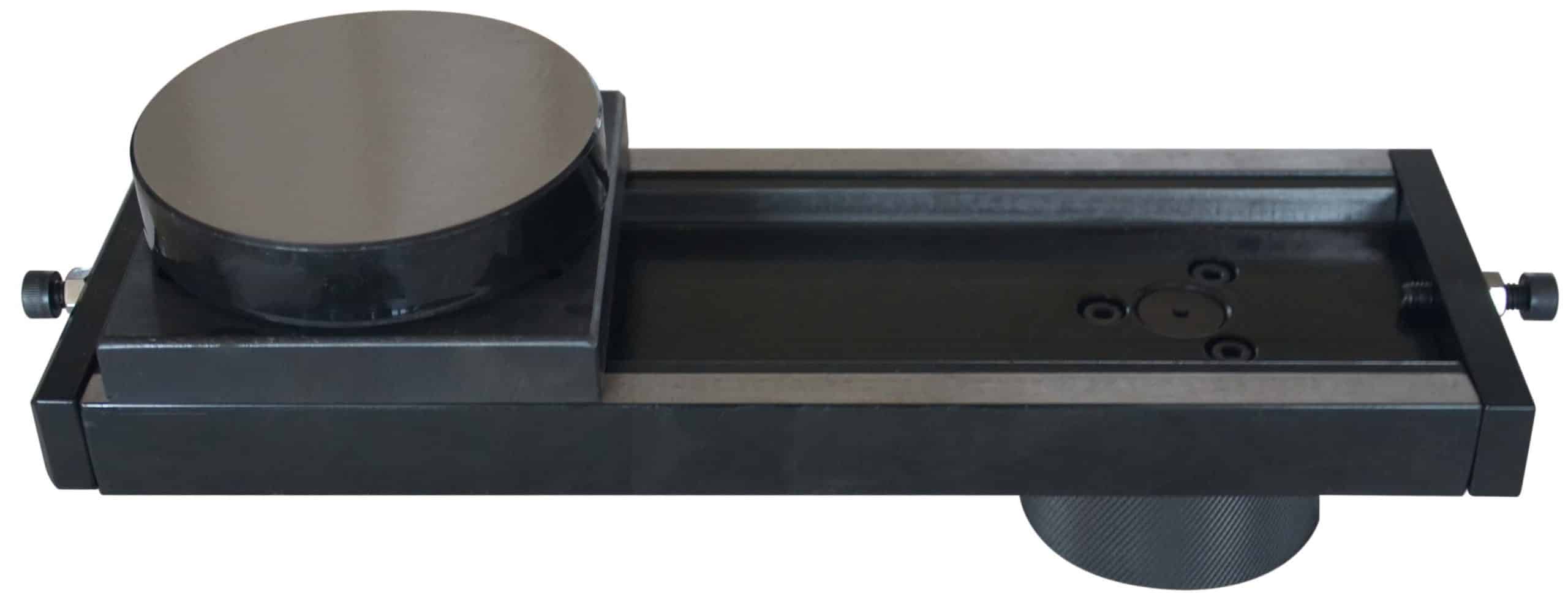

| Sliding Table Anvil | 1 pc | Φ150mm Flat Anvil | 1 pc |
| Φ74mm Flat Anvil | 1 pc | Φ40mm V-Anvil | 1 pc |
| 15× measuring eyepiece | 1 pc | 2.5×, 5× objective lens | 1 pc each |
| Microscope stand (with internal lamp) | 1 pc | External lamp | 1 pc |
| Standard hardness block 60~70 HRC | 1 pc | Standard hardness block 20~30 HRC | 1 pc |
| Standard hardness block 80~100 HRBW | 1 pc | Standard hardness block 700~800 HV30 | 1 pc |
| Standard hardness block 150~250 HBW2.5/187.5 | 1 pc | Weights 0, 1, 2, 3, 4 | 1 pc each |
| Power cord | 1 pc | 2A Fuse | 2 pcs |
| Spirit Level | 1 pc | Leveling Screws | 4 pcs |
| Screwdriver | 1 pc | Wrench | 1 pc |
| Anti-dust Cover | 1 pc | Vickers hardness conversion table | 1 copy |
| Brinell hardness conversion table | 1 copy | Certificate of Conformity | 1 copy |
| Instruction Manual | 1 copy | Warranty Card | 1 copy |
