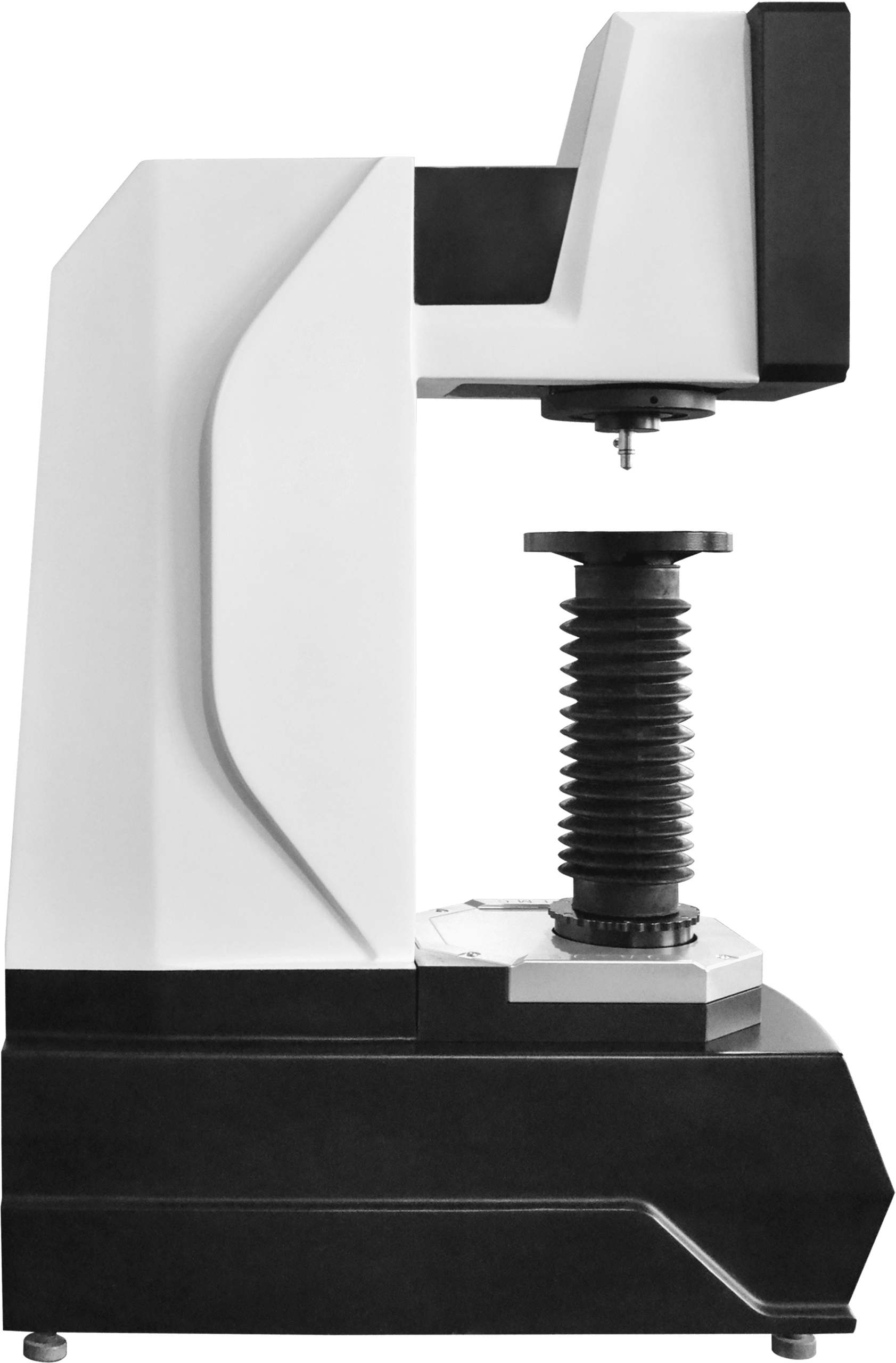

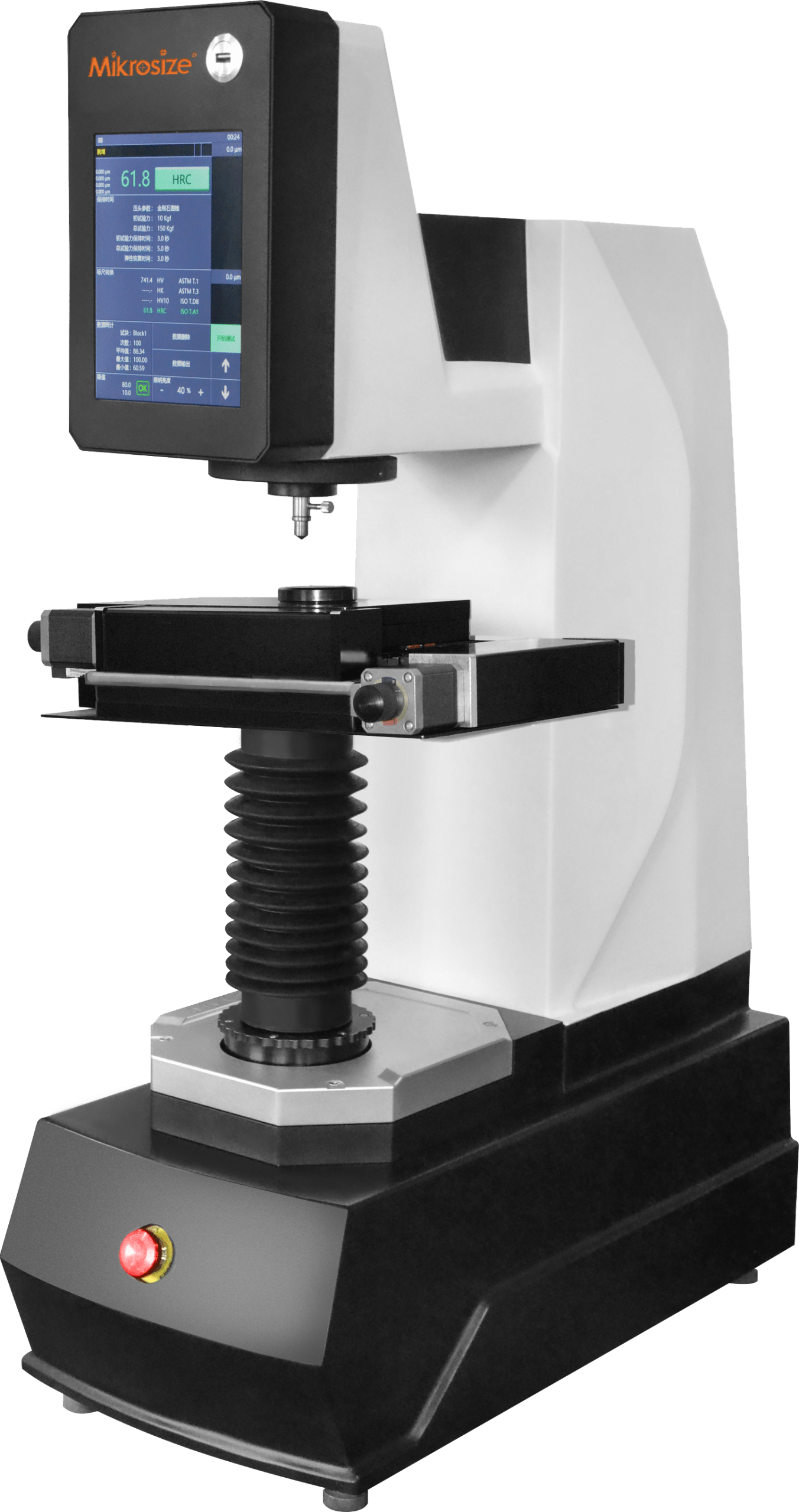

MRocky-150/45 Rockwell Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/mrocky-150-45-rockwell-hardness-tester/

Product Feature:

• MRock-150 automatic full Rockwell hardness tester adopts a brand-new aluminum alloy die-casting process, featuring a robust and aesthetically pleasing casing.
• Equipped with a weight-loading mechanism, the instrument can perform hardness tests on all Rockwell and superficial Rockwell scales with one-touch operation for fully automated testing.
• The machine achieves a GRR (Gage Repeatability & Reproducibility) < 10%, delivering exceptional repeatability and reproducibility for reliable measurements.
• With a stable system, excellent structural rigidity, user-friendly interface, and easy operation and maintenance, this tester meets the high standards of laboratory hardness inspection and is also suitable for routine hardness testing in automated production lines.
• Brand-new aluminum alloy die-casting process for a sturdy casing with an attractive appearance; the rigidity of the main body is comparable to that of standard testing machines.

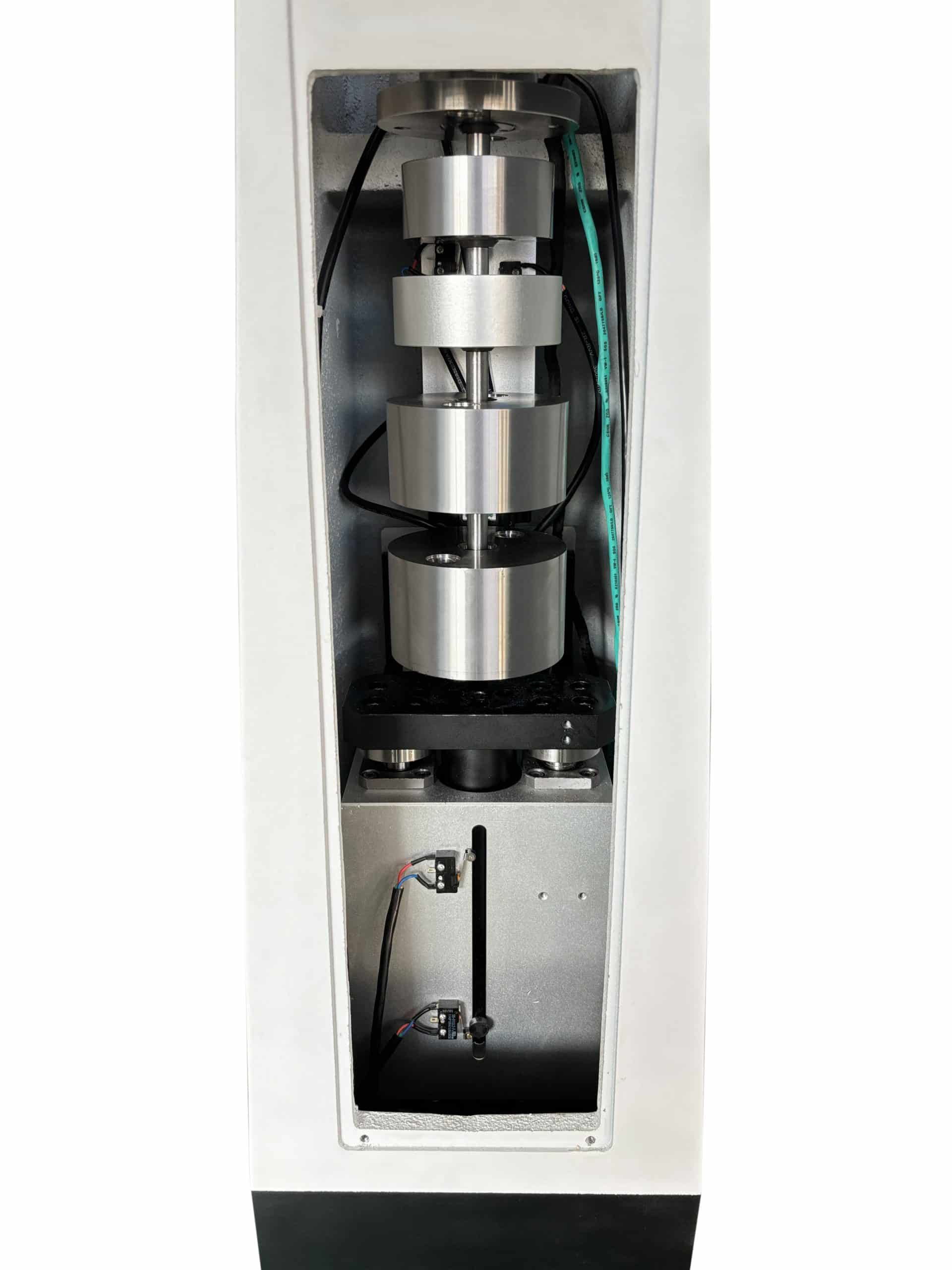

• Equipped with a weight-loading mechanism with automatic weight homing to eliminate friction against the machine wall, ensuring outstanding test accuracy and stability, and simplifying calibration and maintenance.
• The lead screw is heat-treated to a hardness of 35HRC–40HRC, stabilizing test data at varying lifting heights. The heat-treated and drawn lead screw is solid and wear-resistant, greatly reducing measurement instability caused by wear-induced clearance during long-term use.
• 1:1 high-precision displacement sensor to display test depth in real time.
• Supports all Rockwell and superficial Rockwell scales, automatically switching between preliminary and total test forces based on the selected scale.

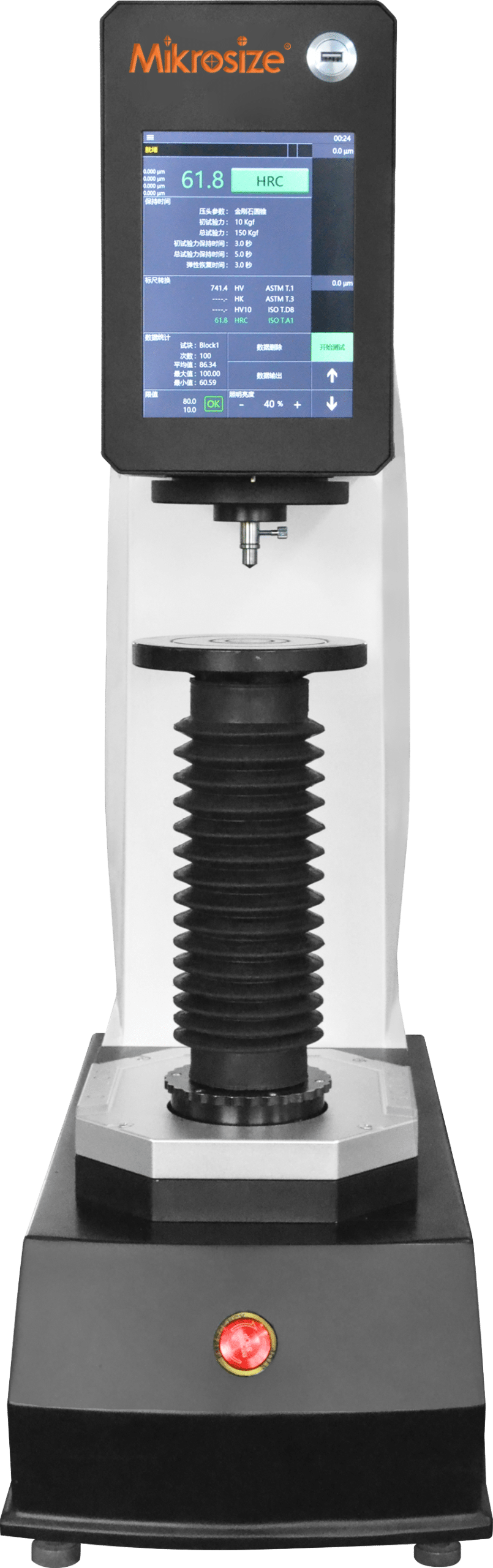

• Features an 8-inch high-definition touchscreen for display and operation; upgraded mechanical and electrical design enables one-touch operation, balancing high test efficiency and excellent user experience.
• Supports conversion between various hardness scales with selectable conversion standards for multi-value conversion, displaying up to 4 converted hardness values simultaneously.
• Offers multi-language support including Chinese, English, German, French, Russian, Japanese, etc., with free switching.
• One-touch completion of workpiece lifting, indenter loading, dwell, unloading, hardness value display, and test stage return to the home position.

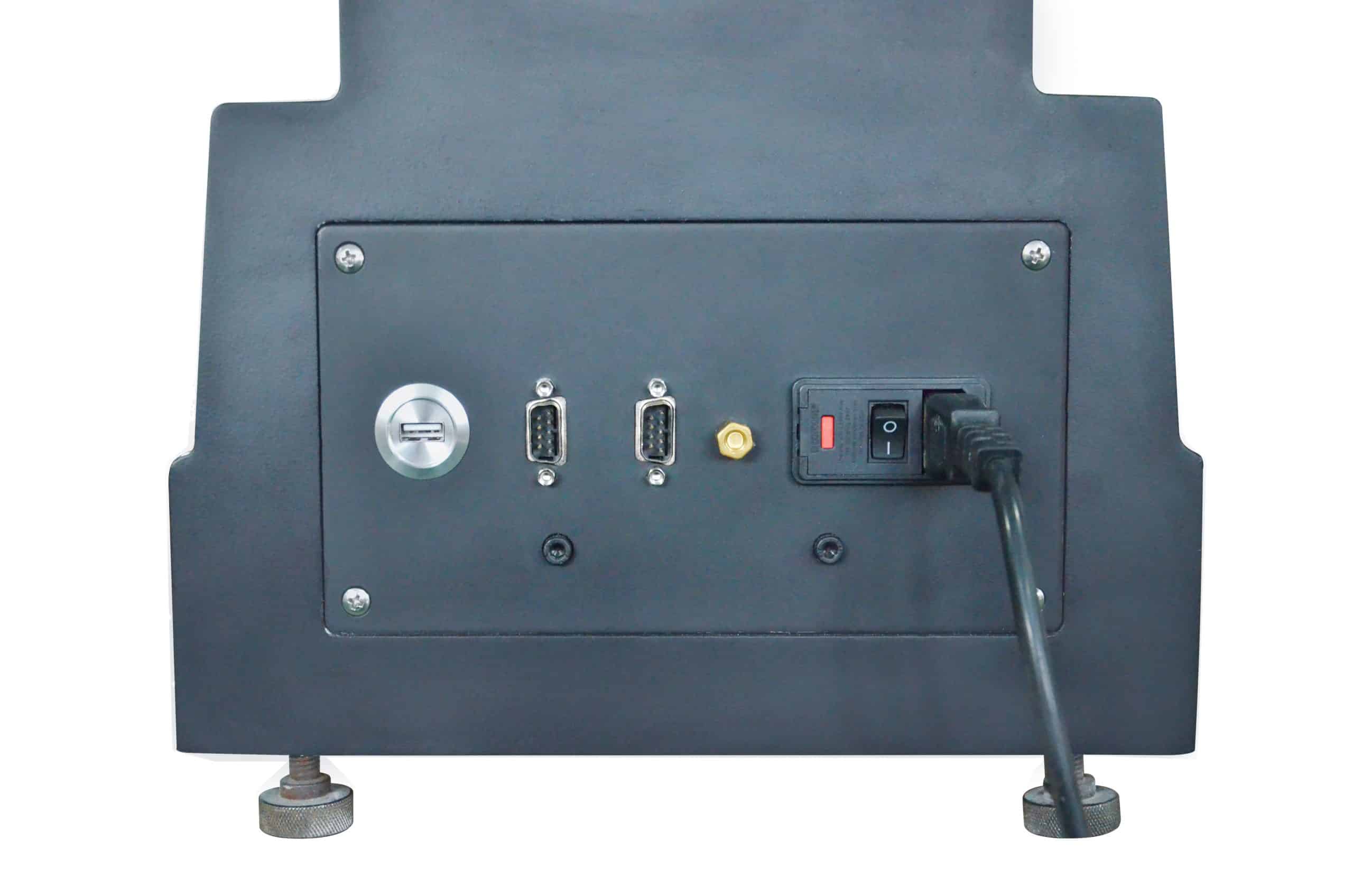

• Provides data storage and out-of-tolerance alerts, automatically calculating maximum, minimum, and average values. Test results can be exported to a USB flash drive via the USB port, and an RS232 interface is available for computer connection.

Product Application:

• Suitable for hardness testing of quenched, tempered, annealed, and hard cold castings; malleable castings; hard alloy steels, aluminum alloys, copper alloys, bearing steels, etc. Also applicable to surface-quenched steels, surface heat-treated and chemically treated layers, copper and aluminum alloys, thin sheets, galvanized, chrome-plated, and tin-plated materials, bearing steels, hard cold castings, etc.
