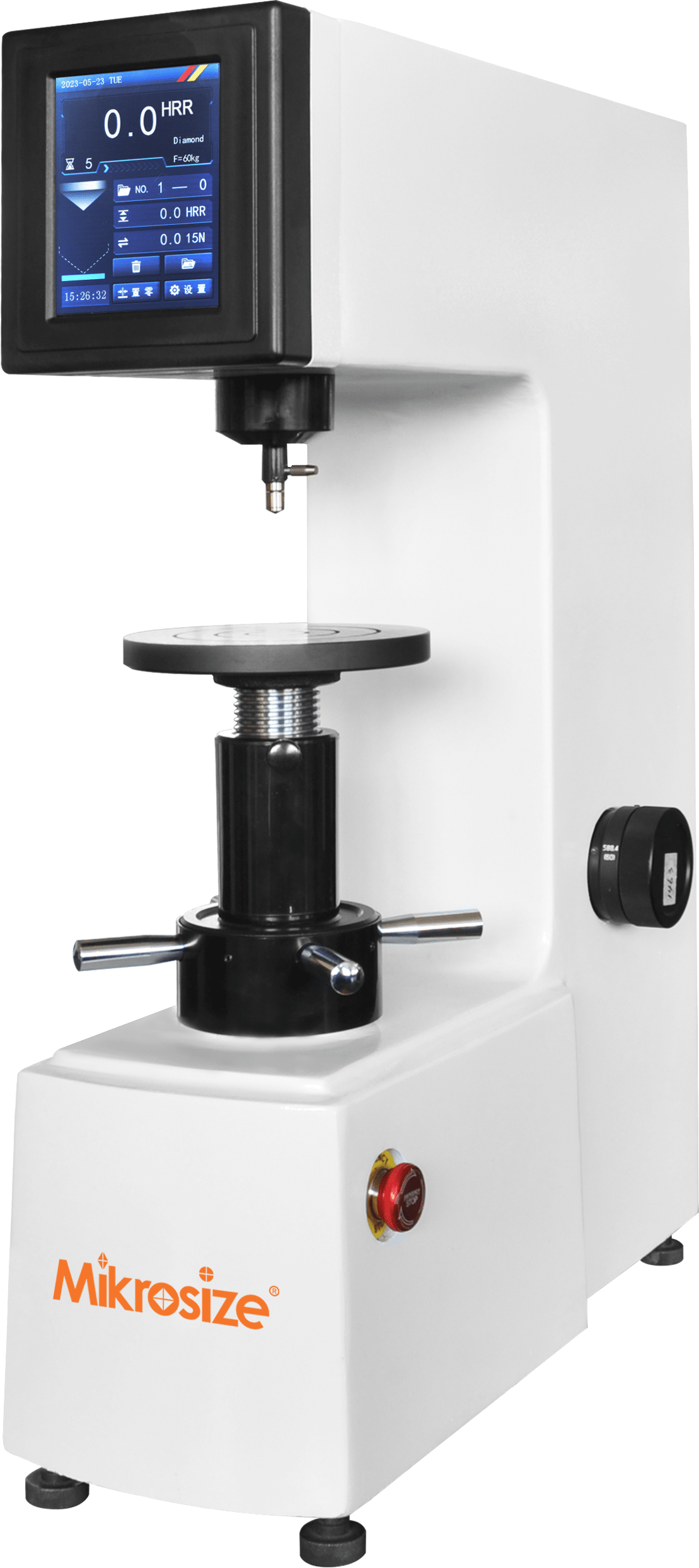

MRocky-150P Plastic Rockwell Hardness Tester

Scan QR

×
Scan QR Code

https://mikrosize.com/product/mrocky-150p-plastic-rockwell-hardness-tester/

Product Features：

Integrated cast iron structure ensures 99% rigidity of the main body, minimizing deformation. The housing undergoes natural aging treatment for over six months, delivering stable physical properties.
The lifting screw is heat-treated to a hardness of 35–40 HRC, ensuring structural stability and wear resistance.
Weights and levers are manufactured and calibrated with classic processes, offering high precision and mechanical fine-tuning capability.
5.6-inch high-definition touch screen for display and operation, with dynamic image indication of the testing process and buzzer prompts.
Supports Rockwell hardness test scales; the corresponding indenter and test force are prompted after scale selection. Test forces are switched by rotating the load-changing handwheel.
Supports real-time hardness conversion between various scales.
Supports upper and lower limit setting with out-of-tolerance alarm, and features arc correction compensation.
Real-time storage of test results, automatic calculation of maximum, minimum, average, standard deviation, repeatability, etc. Supports multi-folder selection, with optional data deletion and print output.

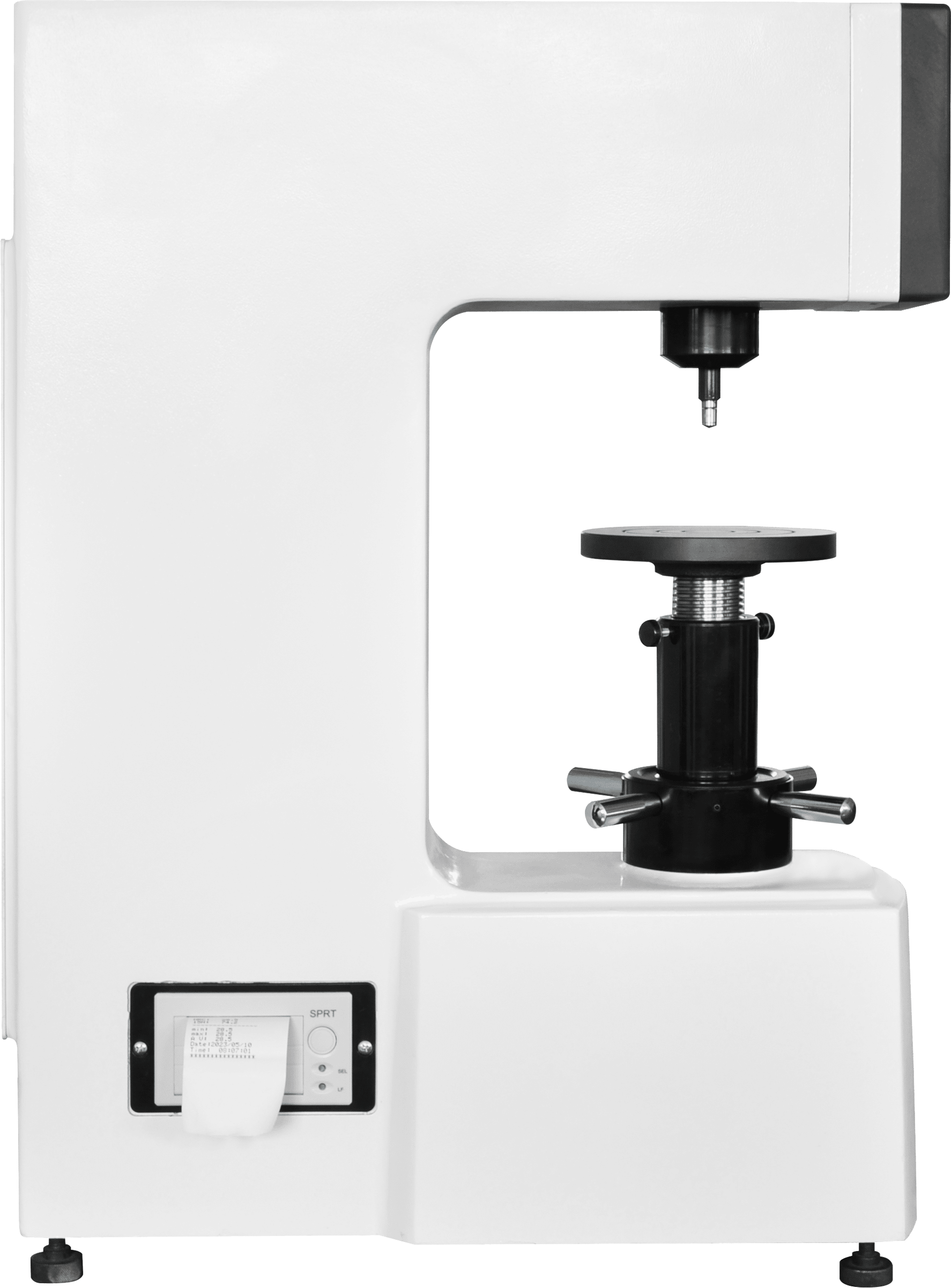

Built-in thermal printer with fast printing speed; equipped with a USB port for direct data export to a USB flash drive.

Product Applications：

Suitable for hardness measurement of quenched, tempered, annealed, and cold-hardened castings, malleable castings, hard alloy steels, aluminum alloys, copper alloys, bearing steels, and other materials.

Technical Specifications

Model	MRocky-150
Initial Test Force	10kgf (98.07N)
Total Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Specifications	Diamond Rockwell indenter, 1.5875mm tungsten carbide ball indenter
Test Force Application	Automatic (loading / dwell / unloading)
Hardness Reading	5.6-inch touch screen
Measuring Scales	HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scales	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Data Statistics	6 folders, 1000 data per folder; automatic calculation of max, min, mean, count, standard deviation, repeatability; selective statistics and output
Data Output	Built-in printer, USB port
Auxiliary Functions	Upper/lower limit setting & out-of-tolerance indication; curved surface correction for cylindrical/spherical specimens
Hardness Resolution	0.1HR
Dwell Time	0-99s; adjustable initial test force dwell time, total test force dwell time, and elastic recovery dwell time
Test Height	185mm
Test Throat	165mm
Power Supply	AC220V，50Hz
Standards Complied	GB/T 230，ISO 6508，ASTM E18，JIS Z2245
Dimensions	520×215×700mm
Net Weight	78kg

Name	Qty	Name	Qty
Main Frame	1 pc	Accessory Case	1 pc
Diamond Rockwell Indenter	1 pc	1.5875mm Tungsten Carbide Ball Indenter	1 pc

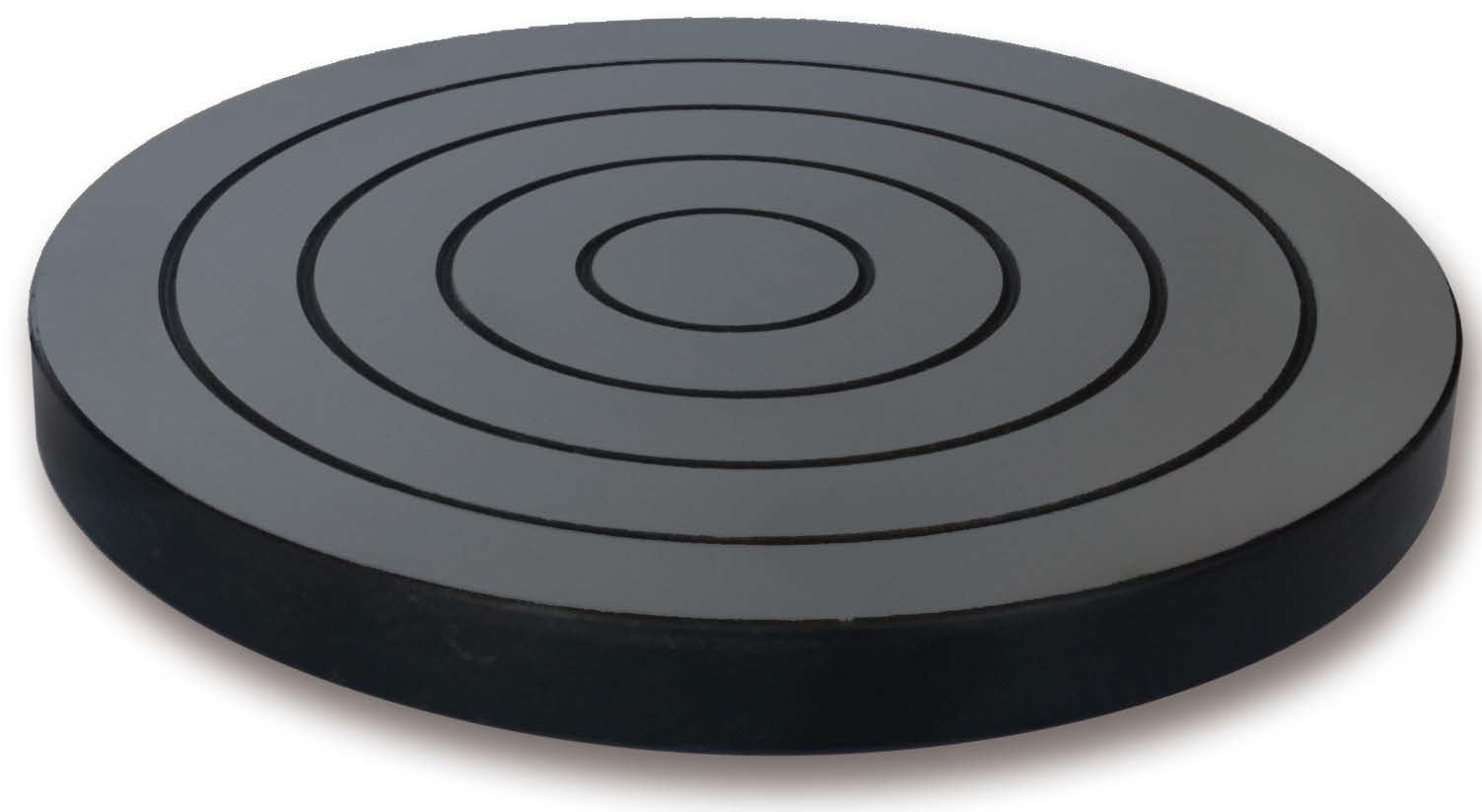

Φ150mm Flat Anvil	1 pc	Φ74mm Flat Anvil	1 pc
Φ40mm V-Anvil	1 pc	Standard Hardness Block 60-70 HRC	1 pc
Standard Hardness Block 20-30 HRC	1 pc	Standard Hardness Block 80-100 HRBW	1 pc
Weights A, B, C	1 each	Spirit Level	1 pc
Leveling Screws	4 pcs	Power Cord	1 pc
2A Fuse	2 pcs	3mm Hex Key	1 pc
7mm Open-end Wrench	1 pc	Dust Cover	1 pc
Instruction Manual	1 copy	Certificate of Conformity	1 copy
