UHT-100 Ultrasonic Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/uht-100-ultrasonic-hardness-tester/

Product Features:

• Main test parameter: HV; Convertible parameters: HRC, HRA, HRB, HBW, etc

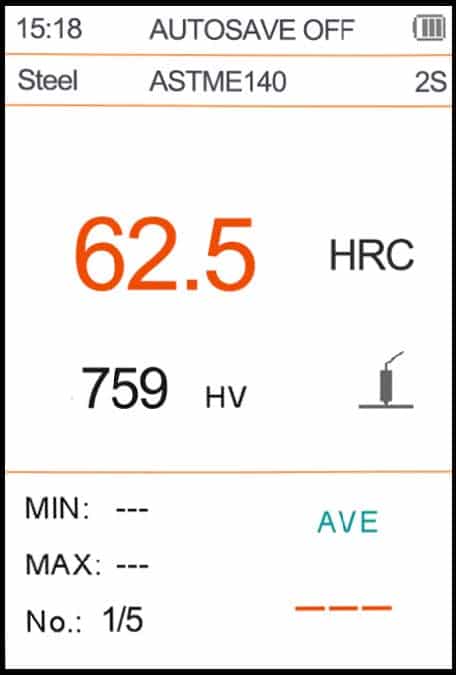

• Large-size screen directly displays current measurement value, cumulative measurement value, maximum value, minimum value, average value, and unit conversion value
• Small size and light weight, easy to carry, suitable for on-site measurement of large workpieces

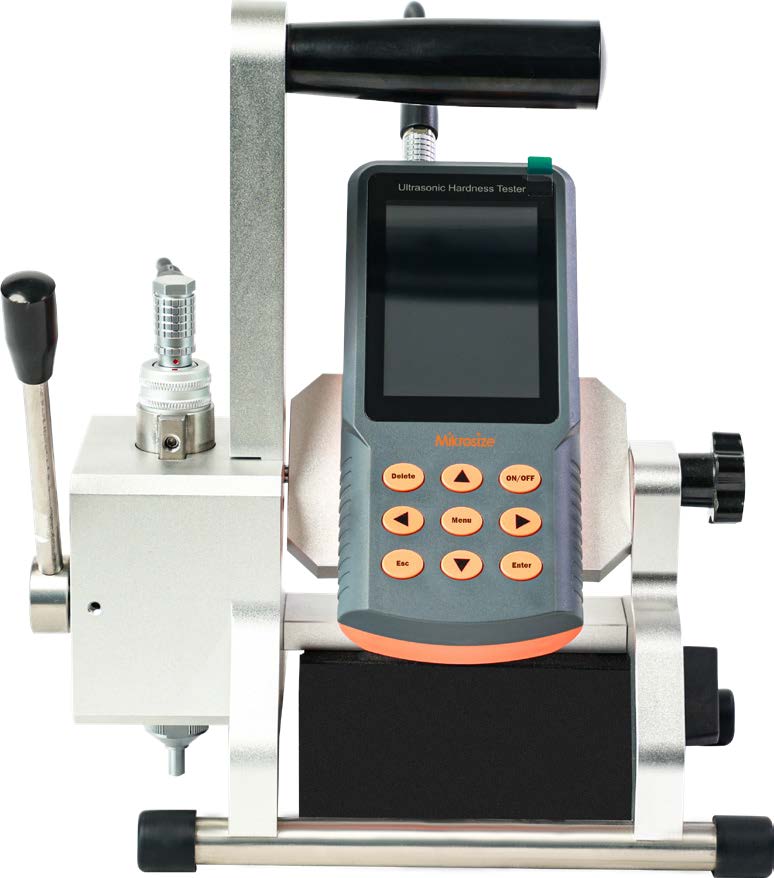

• High measurement accuracy: ±4%HV, ±4%HB, ±1.5HR. The accuracy can reach ±3%HV when used with a measurement platform (optional).
• Small test indentation, little damage to the workpiece, belonging to micro-destructive/near non-destructive testing
• Fast measurement speed, with test results output in as fast as 1 second.
• Simple calibration: can store 5 groups of single-point calibration data, 1 group of default data, and 5 groups of multi-point calibration data in the instrument.
• Can store 50 groups of measurement data and 10 groups of calibration data sets.
• Single-point calibration is selected for materials with different elastic moduli, which is convenient and fast.
• For materials without clear conversion tables and unknown materials, any hardness scale can be selected for multi-point calibration to eliminate system errors caused by conversion tables.
• Any hardness scale can be customized in multi-point calibration mode.
• Can be connected to a Bluetooth printer (optional) to print measurement data or connected to a computer terminal to export measurement data.
• Executive standards: GB/T 34205; DIN 50159; ASTM-A1038; JB/T 9377; JJF 1436

Product Applications:

• On-machine inspection of parts in mechanical manufacturing to avoid errors caused by workpiece disassembly.
• Local hardness testing of aerospace and automotive parts (such as gear tooth surfaces, shaft surface hardened layers).
• Random hardness inspection of weld seams of special equipment and pressure vessels to ensure welding quality.
