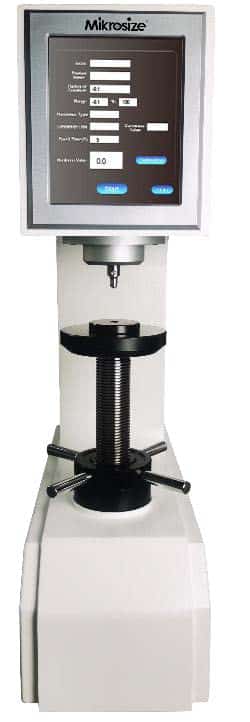

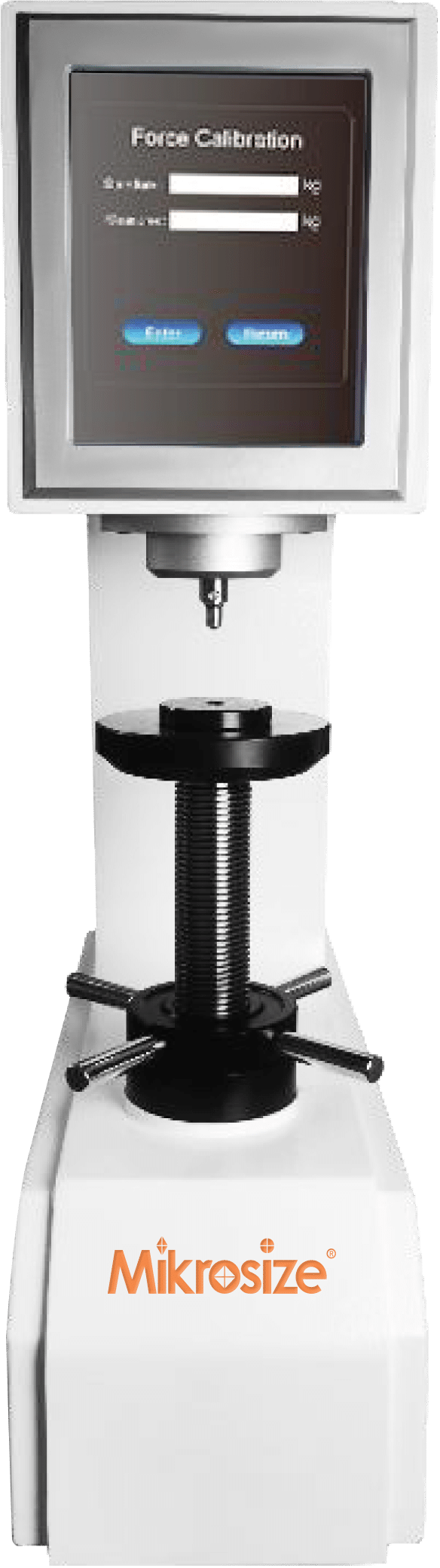

uRocky-150 Digital Rockwell Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/urocky-150-digital-rockwell-hardness-tester/

Product Feature：

• uRocky-150CL is with Closed loop control system, high precision load cell structure
• 8” touch screen for user directly select the hardness scale and test force and displays hardness value, conversion scale, test force, dwell time, etc.
• With all kinds of rockwell hardness scales HRA HRB HRC etc and high resolution 0.1HR
• Automatic correction of high, medium and low hardness numbers
• Automatic correction of load, with the force accuracy increased by dynamometer.
• Automatically apply the initial test force and the main test force.
• Automatic testing process: Automatic loading – Dwell – Unloading, and automatic display hardness value.
• Curve display: test force, displacement depth change curve, real-time test force value curve.
• Curve display: force, displacement depth change curve, real-time force value curve.
• Powerful data processing function, including: HR, HB, HV and other hardness scale conversion,
• Qualified range can be set, automatic alarm over the limit, tester’s name, sample name and other information can be input,.
• With USB interface, test data can be saved in U-flash directly in Excel format. easy to edit and process.
• Indenter protective device for optional purchase (testing sample size should over 15mm)

Product Application：

• Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
