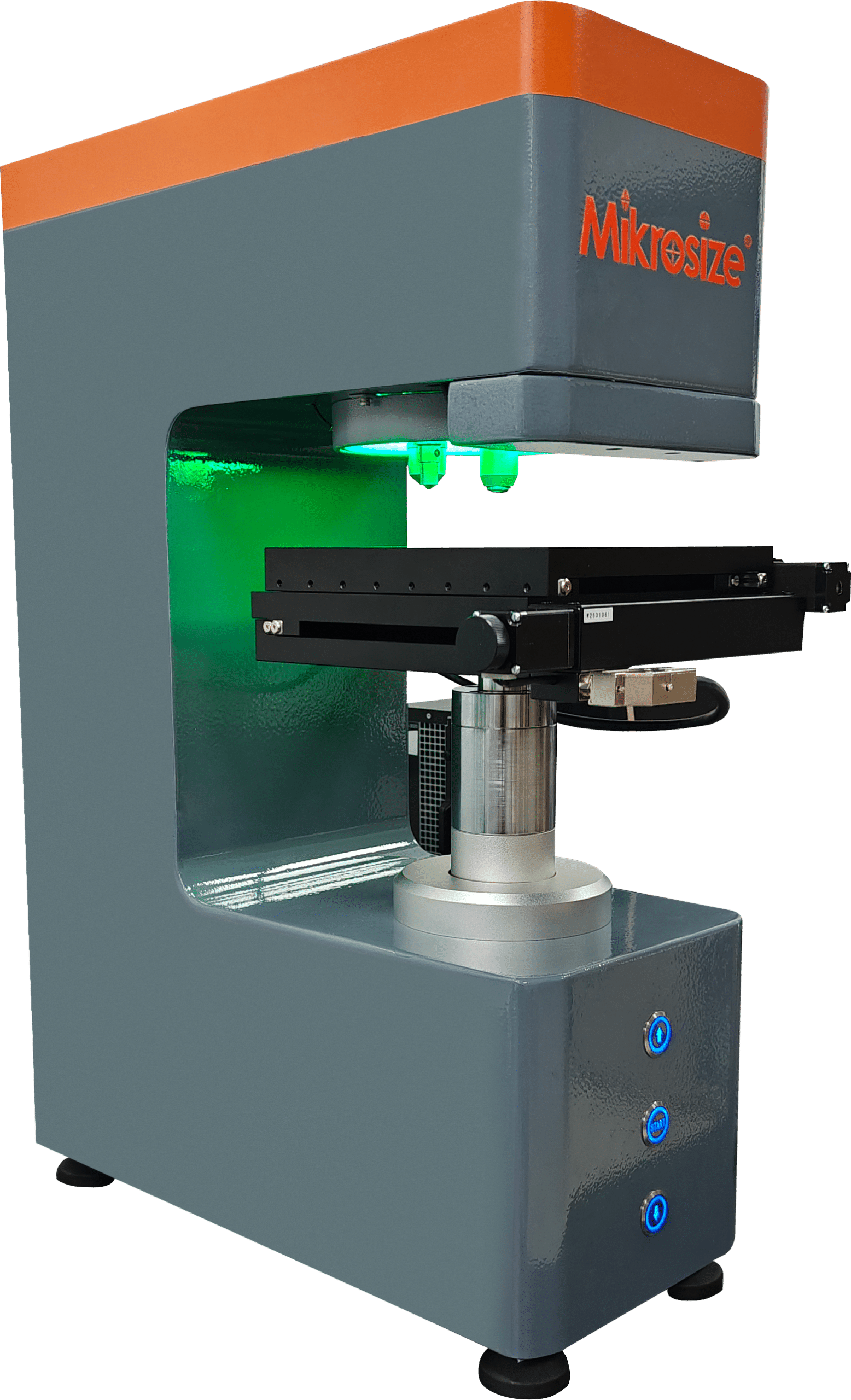

uVicky-1AI Intelligent Automatic Micro Vickers Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/uvicky-ai-intelligent-fully-automatic-vickers-hardness-tester/

Product Feature：

• Built-in light source, camera, focus, and switching force mech- anism.
• Hardness value automatically measured, no manual position- ing required, and precise automatic measurement. The new algorithm can detect indentations on surfaces that are not smooth or have scratches.

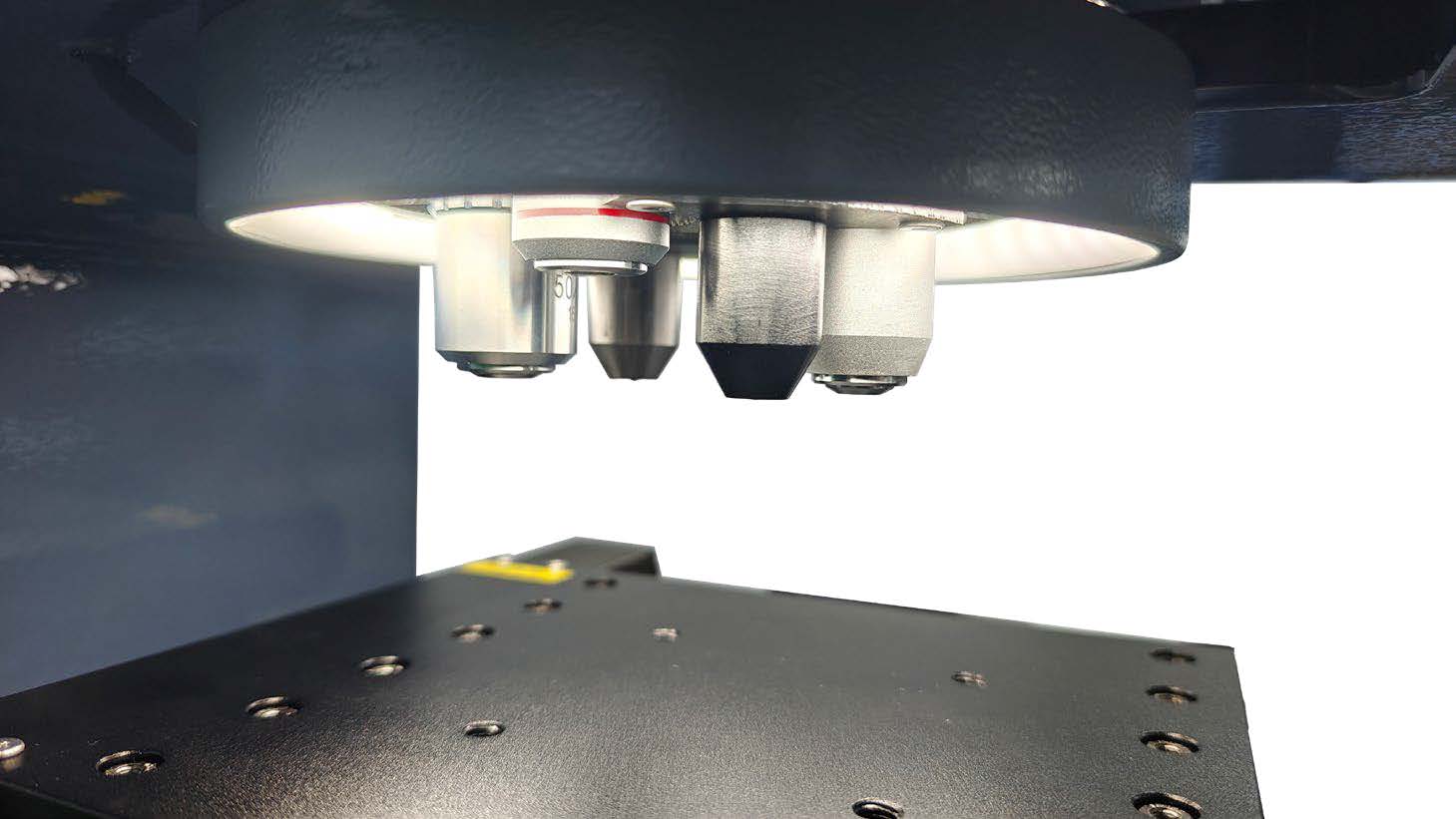

• Multi-station precision, automatic turret.
• HV/HK pressure heads, multiple objective lens configurations.
• Ultra-high precision X/Y stage, repeat positioning accuracy: 1 micron, maximum travel range up to 200mm.
• Z-axis automatic control, with optical cross guide rail lifting mechanism. Z-axis movement step size: 0.04 micron.

Product Application：

• Metal Materials Processing and Manufacturing Industry

        Used for testing the hardness of metal components to ensure they meet production standards and design requirements. It also measures the hardness of welded areas on metal materials to evaluate their quality and determine if the welding quality is satisfactory, ensuring the reliability of the welded structures.

• Mechanical Manufacturing Field

        This hardness tester can be used to measure the hardness of various mechanical components, such as gears, shafts, molds, etc., ensuring the wear resistance, strength, and service life of the parts.
