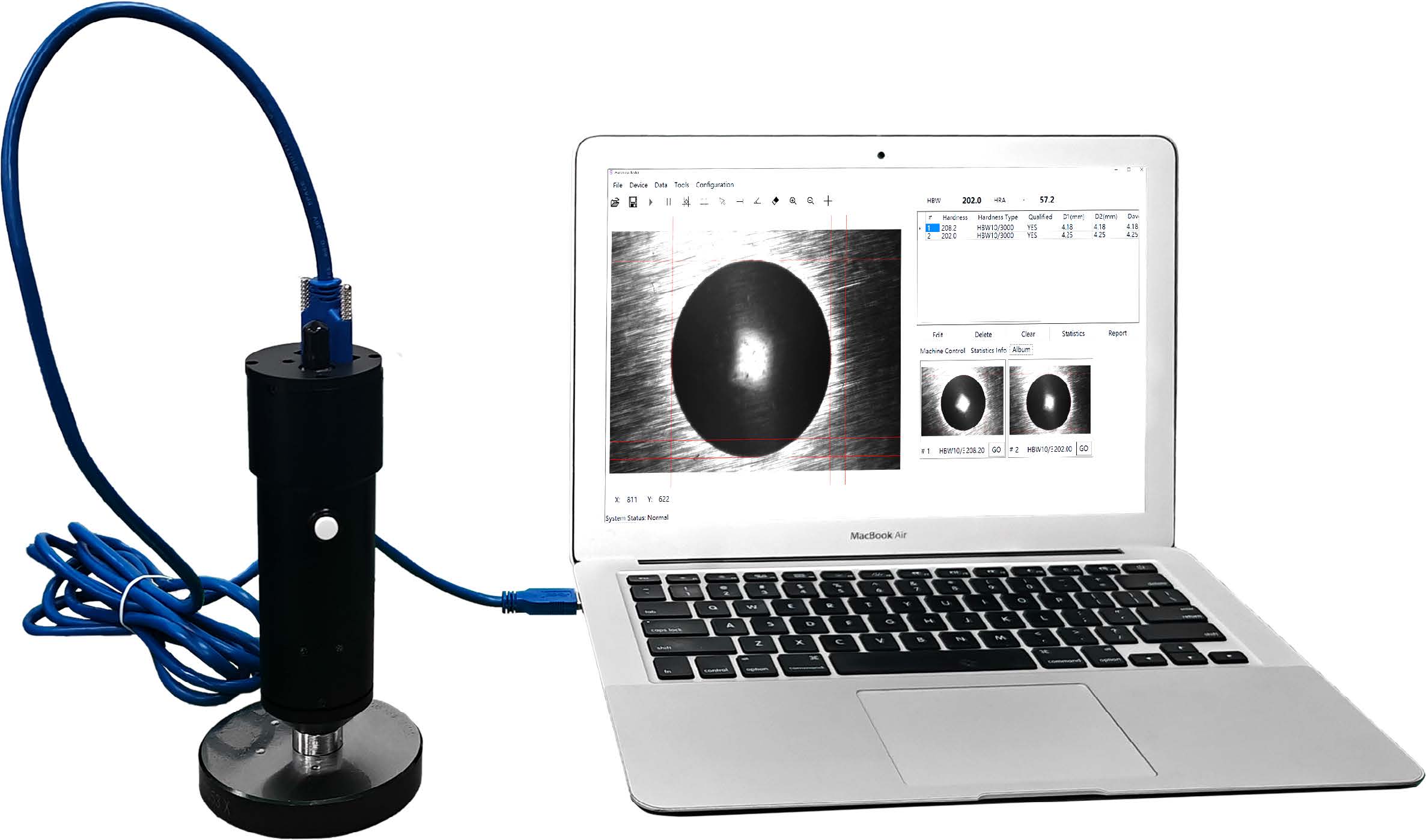

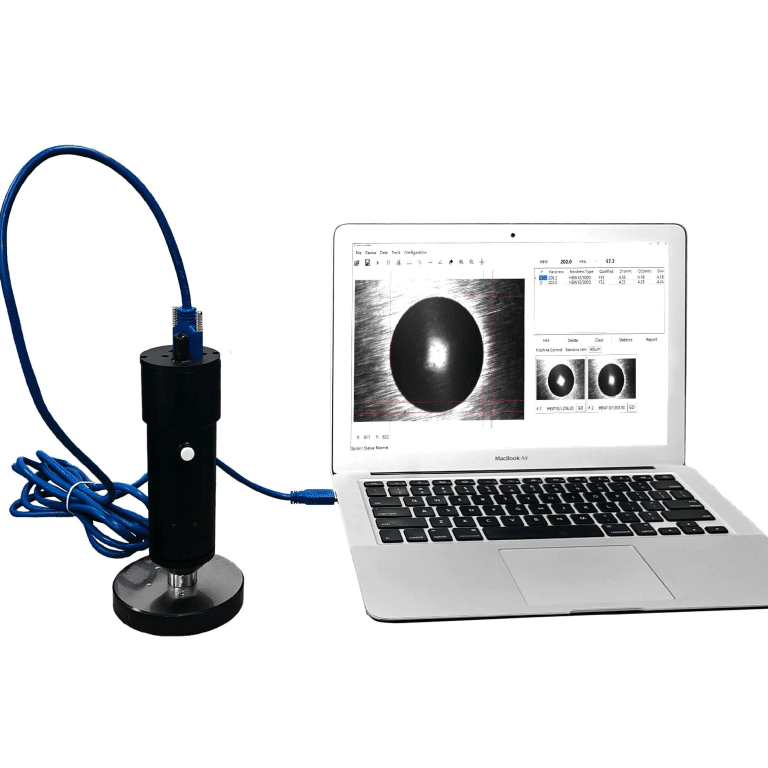

In industrial quality control and material research, the ability to perform accurate hardness testing directly on large workpieces or in confined spaces is a significant advantage. The uVision-PB Portable Brinell Hardness Testing System from Mikrosize combines portability with advanced optical imaging and intelligent analysis, delivering laboratory-grade precision in the field.
Compact and Portable Design
The uVision-PB features a compact, exquisite structural design that is easy to install and intuitive to operate. Fully meeting the convenient usage requirements in mobile scenarios, it is ideal for foundries, forging workshops, and machining factories where rapid testing of cast iron, steel, non-ferrous metals, and alloys is essential. The system is also suitable for in-situ inspection of large-scale castings and forgings, pipelines, and pressure vessels in power plants and steel mills.
Professional Optical System and Intelligent Image Analysis

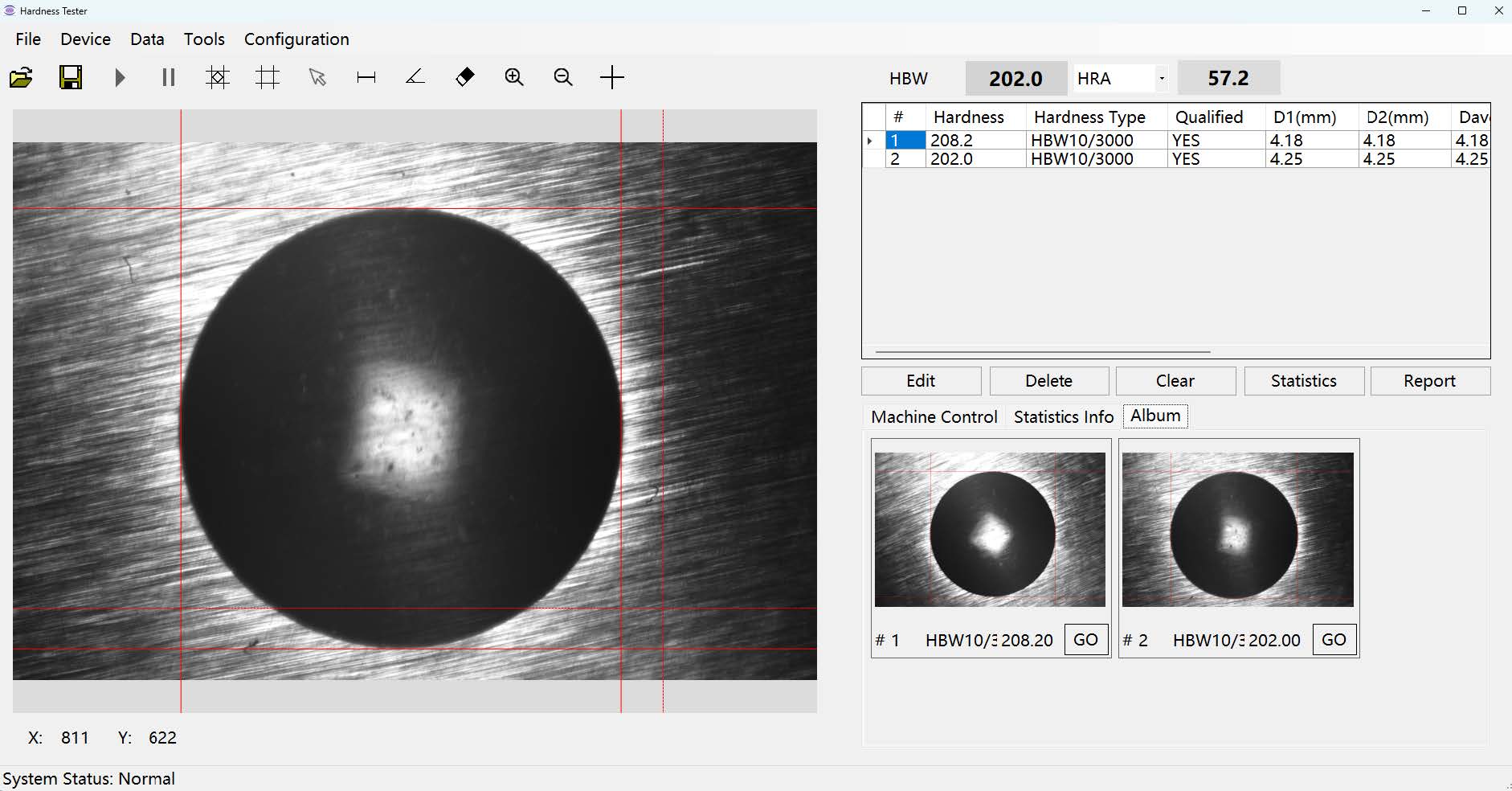

By precise optical imaging technology, the system clearly presents the contour of the Brinell indentation image. It integrates three algorithms—shape recognition, brightness analysis, and edge computing—significantly enhancing the accuracy of measurement results. The brightness, contrast, and lighting system are adjustable, and parameters can be saved separately for different sample surfaces.
Manual and Automatic Measurement
The uVision-PB supports both manual and automatic measurement. For standard samples, the one-click automatic measurement function simplifies the operation process, enabling non-professionals to get started quickly. Manual measurement and adjustment are also supported. The software allows users to select an appropriate image type consistent with the indentation image to be measured, ensuring reliable automatic results.
Hardness Conversion and Data Management

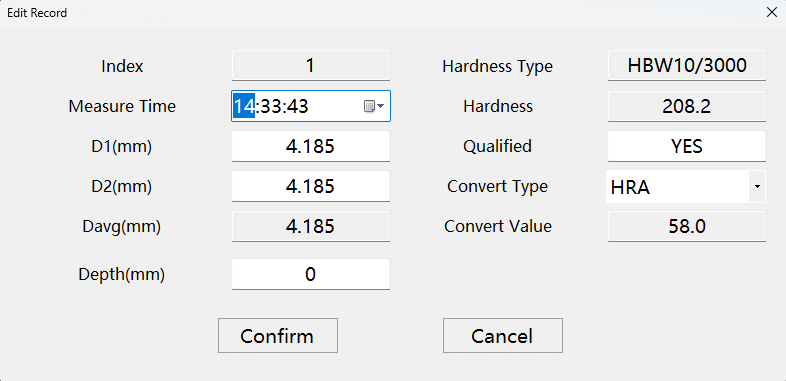

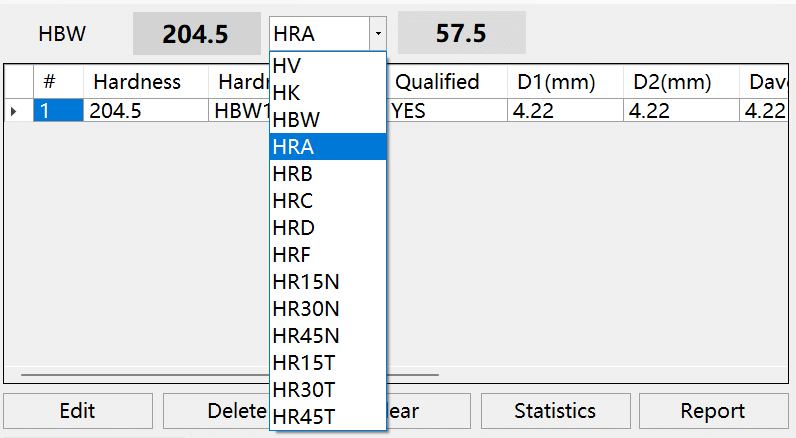

The system automatically conducts conversions among various hardness scales such as Brinell, Rockwell, Vickers, and Knoop. Real-time display of hardness indentation images is provided, with the ability to store and print images. Measuring data is automatically recorded, and reports can be generated according to user-customized requirements in multiple formats, including Word, Excel, and CSV. Users can also edit sample information such as sample name, hardness range, tester, and test date for subsequent management and querying.
Technical Specifications
Model: uVision-PB
Application: Brinell indenter 1mm / 2.5mm / 5mm / 10mm
Brinell Hardness Scale: HBW1/1, HBW1/2.5, HBW1/5, HBW1/10, HBW1/30, HBW2.5/6.25, HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/25, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Executive Standards: BSEN 6506, ISO 6506, ASTM E10, GB/T 231
Measuring Range: 15.9–650 HBW (ASTM E10 recommended effective hardness value)
Indentation Diameter Range: 0.6–6 mm
Measurement Resolution: 0.0001 mm
Hardness Resolution: 0.1 HBW
Digital Imaging: 6.3 Mega Pixel Industrial-grade Digital Camera
Measuring Way: Manual and Automatic Measurement (For Standard Samples)
Calibration Method: Standard Hardness Block / Length Scale
Support Language: English (Optional Other Languages)
Power Supply: USB Power Supply
Dimension: 170 × 54 × 54 mm
Weight: 500 g
Standard Delivery
The system comes with a portable measuring head, USB flash drive (software included), Brinell hardness block HB10/3000, dongle, instruction manual, warranty card, and product certificate.
With its combination of portability, intelligent image analysis, and comprehensive data management, the uVision-PB Portable Brinell Hardness Testing System from Mikrosize delivers reliable performance for laboratory material research, standardized testing, and on-site quality control.
