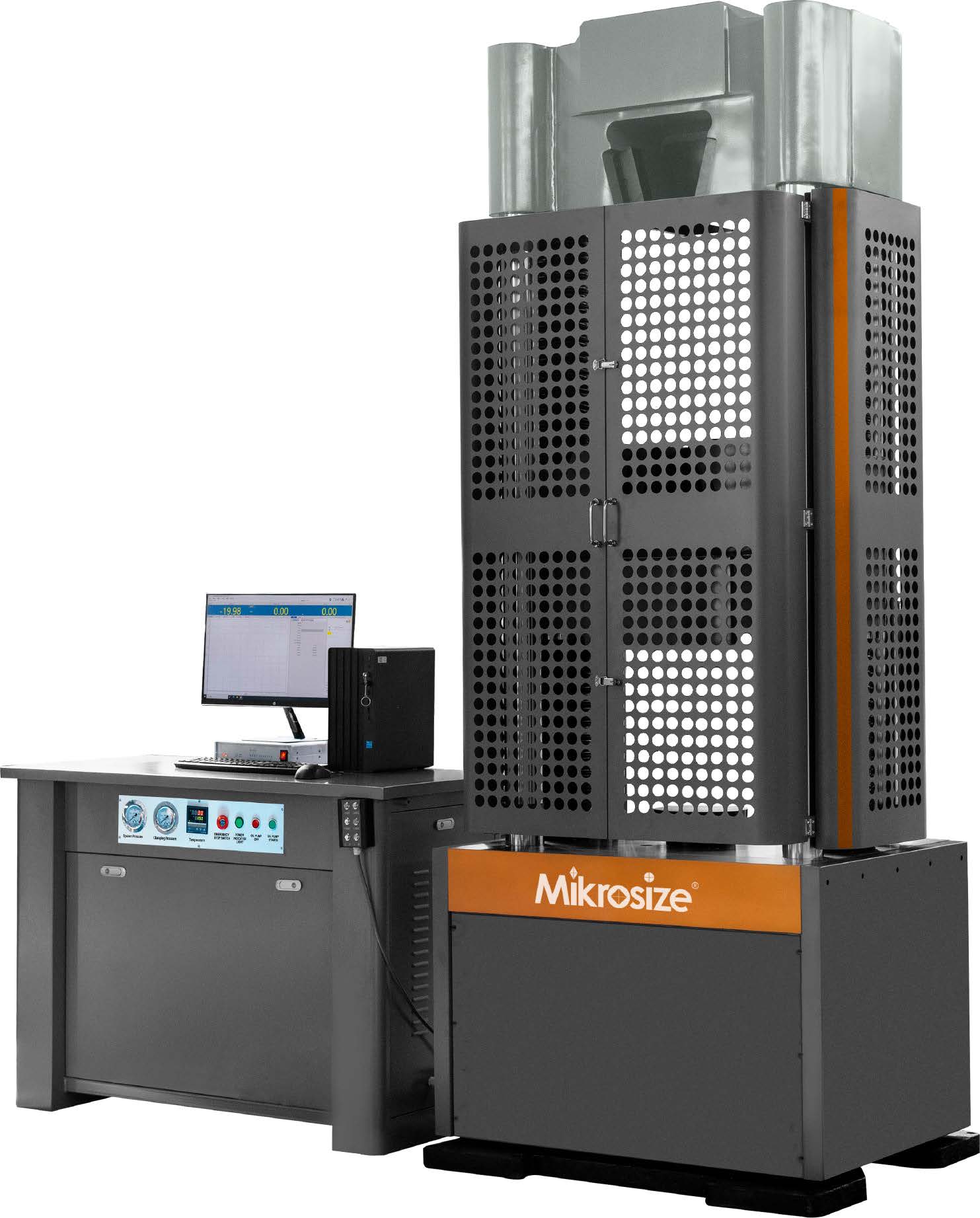

The UTM-H2000 / H3000 computerized electro-hydraulic servo universal testing machine is a heavy-duty laboratory testing solution built to deliver reliable, repeatable material performance data for quality control, R&D and material qualification workflows.
Key Product Features
- Built to run tension, compression, bending and shear tests for metals, non-metals and composite material specimens across diverse industrial sectors.
- Implements mature electro-hydraulic servo closed-loop control technology: precisely regulates hydraulic oil flow via servo valves and generates test load through the main hydraulic cylinder for stable loading performance.

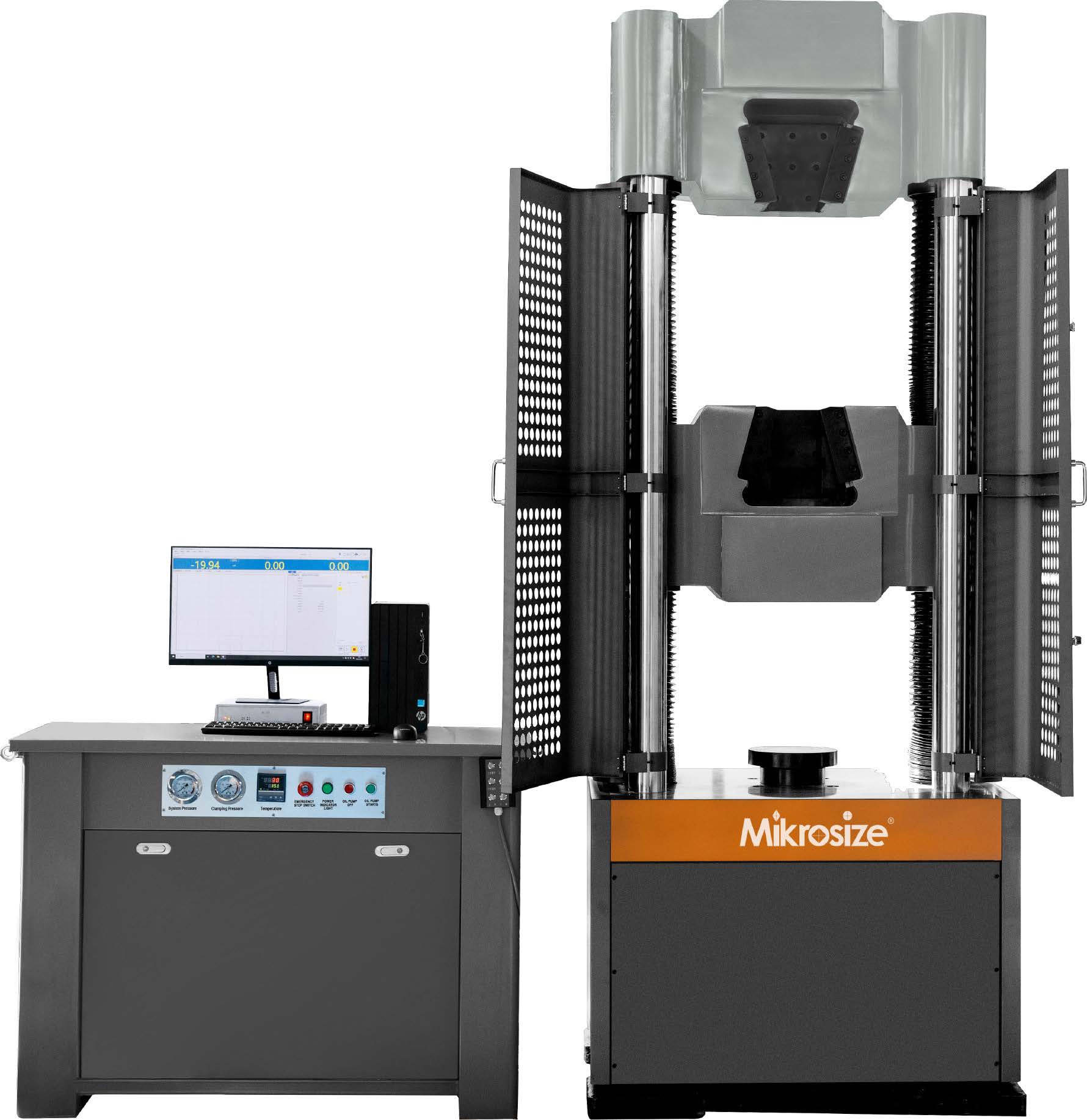

- Features bottom-mounted hydraulic cylinder main frame: upper chamber serves as the tension test zone, while the lower chamber is reserved for compression and bending test operations.
- Motor-driven lead-screw mechanism drives crossbeam vertical travel to conveniently adjust test space for tension-compression setup to fit different specimen sizes.
- Comes with a dedicated electro-hydraulic servo power unit control cabinet, fitted with status indicators, operating control buttons and safety emergency-stop push-buttons.
- Integrated on-board controller supports multiple test modes: constant test-force rate, constant displacement rate, constant strain rate, and cyclic load testing.
- Supplied with wired remote control hand-box, enabling remote operation for specimen clamping and fixture opening-closing to improve lab-site operational convenience.
- Adopts robust four-column two-lead-screw mechanical construction, delivering outstanding structural stability and high frame rigidity to satisfy high-load strength test requirements.
- Fitted with metal wire safety guard shield, mitigating injury risks caused by flying debris when test specimen fracture occurs.
- Multi-layer safety protection system including overload & overpressure emergency stop protection, plus physical mechanical limit stops for equipment and operator safety.

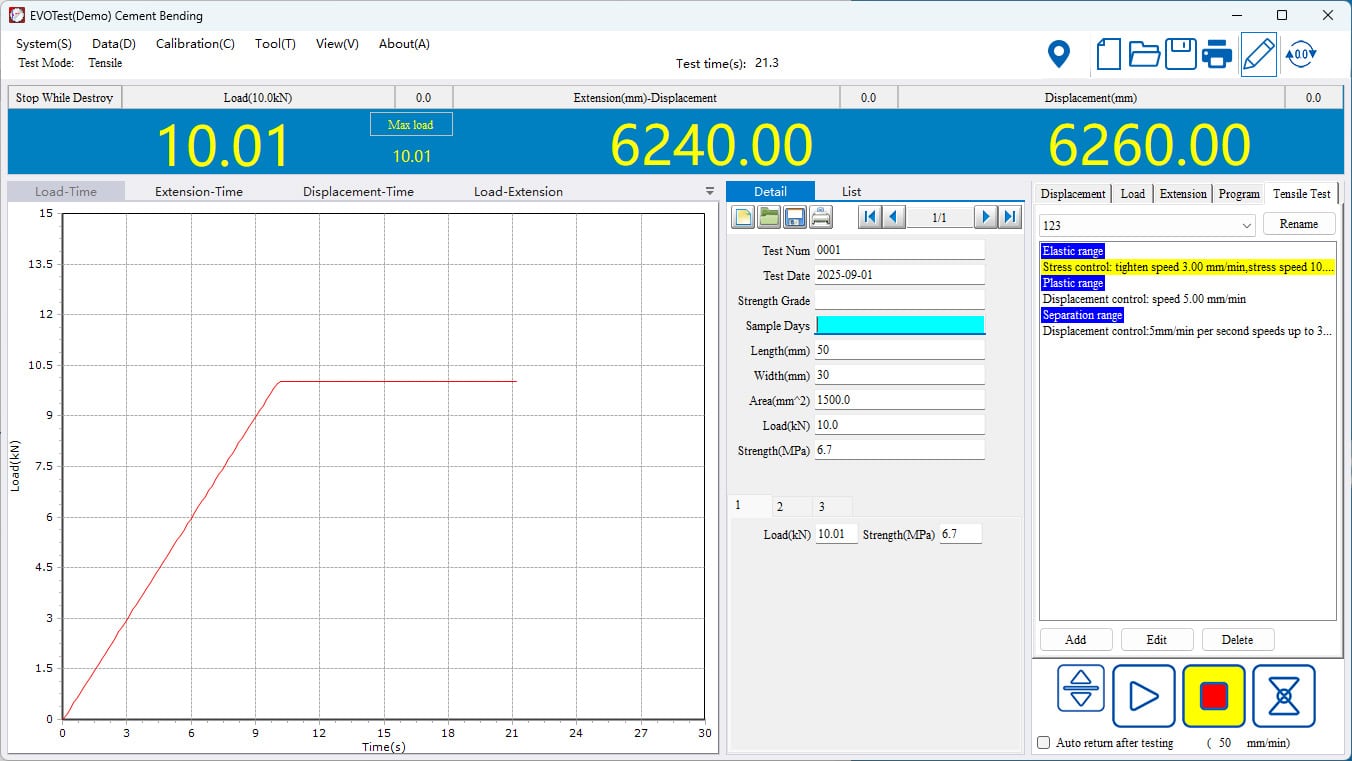

- Works with dedicated material test measurement & control software to accomplish real-time test monitoring, closed-loop runtime control, raw test data processing and test-result export.
- Software compatible with mainstream Windows OS: Win7, Win10, Win11.
- Embedded logic for automatic specimen break detection & auto test stop.
- Fully editable test report templates, supporting multiple file-format export options.
- Supports high-speed manual or automatic return-to-home position once a test cycle finishes.
- Wide range of optional test fixtures: standard tension-compression fixtures included; custom-built fixture solutions available upon customer request.
- Ready for pairing with external extensometer accessories (sold separately / optional accessory).

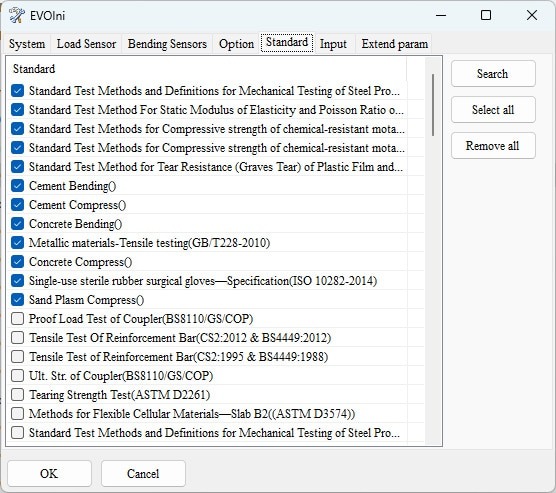

- Machine design complies with global international testing standards: ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221.
Typical Product Applications
- Mechanical property testing for metallic materials for material qualification and incoming-goods inspection.
- Mechanical performance validation and structural assessment for composite materials.
- Quality verification for building and civil-engineering construction materials.
- Component reliability assessment and failure analysis for automotive industry parts.
- Ultimate strength-performance verification for aerospace components and high-end industrial equipment.
