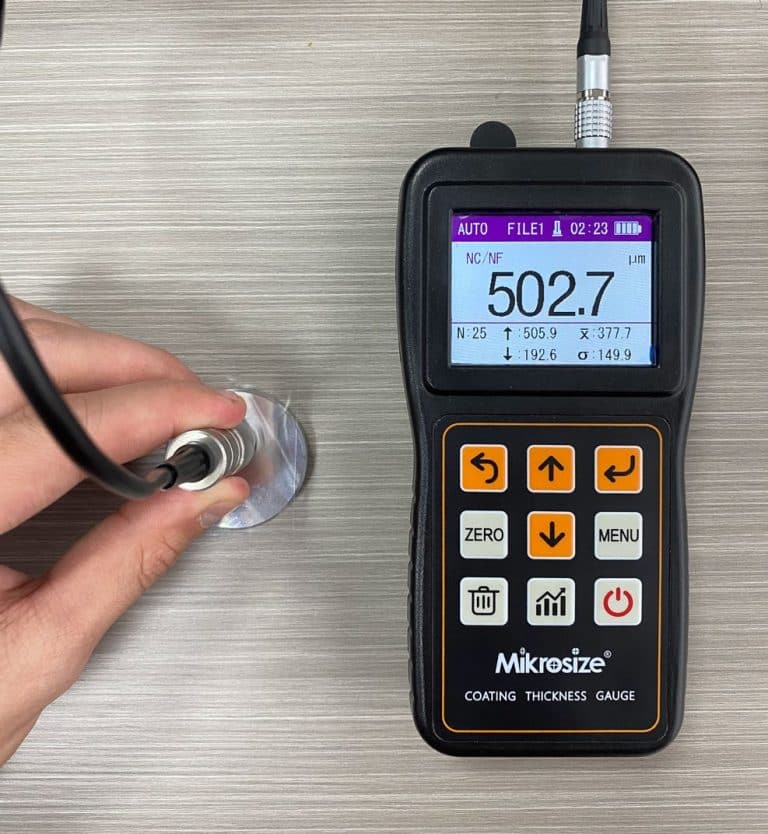

iCoat-200 Coating Thickness Gauge | High Precision FN Dual-purpose Industrial Paint Film Thickness Meter With Temperature Compensation
In industrial coating and electroplating quality inspection, accurate and stable thickness measurement is the core standard to ensure product durability and compliance. Manufactured by Mikrosize, a professional precision testing instrument brand founded in 2009 with over a decade of industrial experience and global market coverage, the iCoat-200 Coating Thickness Gauge delivers reliable, industry-grade measurement performance. Integrating magnetic and eddy current dual measurement principles, this professional industrial measuring instrument is widely applicable to thickness detection of various metal substrate coatings, featuring temperature compensation, multi-mode measurement and diverse calibration functions, meeting high-standard testing needs of manufacturing, chemical equipment and metal processing industries worldwide.
1.Core Product Features
- Dual Measurement Principles & Dual Testing Methods
This gauge supports both magnetic induction and eddy current measurement methods. It can measure non-magnetic coatings on magnetic metal substrates and non-conductive coatings on non-magnetic metal substrates, covering most industrial coating and plating testing scenarios. In terms of testing operation, it is equipped with single measurement and continuous measurement modes, adapting to spot checking and batch scanning detection requirements.
- Three Professional Measuring Modes
The high-precision mode automatically averages multiple measurement data and filters abnormal suspicious data, effectively eliminating test errors and ensuring stable and accurate results. The fast measurement mode realizes real-time scanning, improving detection efficiency for mass workpieces. The diversified modes switch freely to balance precision and efficiency.
- Intelligent Temperature Compensation & Rich Statistical Functions

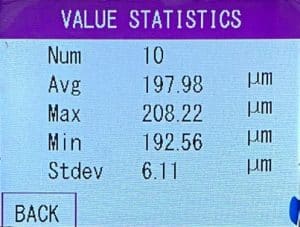

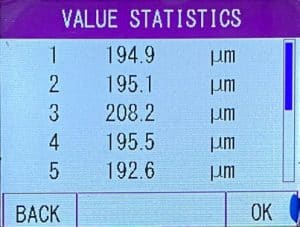

Adopting leading real-time temperature compensation technology, the instrument automatically offsets measurement errors caused by ambient temperature and probe temperature changes, maintaining stable test performance in complex working environments. It records five core statistical values: mean value, maximum value, minimum value, test times and standard deviation, facilitating data analysis and quality record archiving.
- Multi-dimensional Calibration System
To eliminate systematic errors, the gauge supports zero-point calibration, single-point calibration and two-point calibration. It also matches basic calibration and temperature coefficient calibration functions, which can accurately correct probe errors and ensure long-term measurement accuracy of the equipment.
2.Industrial Application Scenarios
The iCoat-200 coating thickness tester is dedicated to precise thickness measurement of coatings and electroplating layers on metal component surfaces, and is also applicable to coating thickness detection of chemical equipment surfaces. It is suitable for quality inspection of automotive paint, metal electroplating, anti-corrosion coating, chemical equipment coating and other processes, helping enterprises strictly control coating thickness and avoid unqualified products caused by uneven coating.
3.Detailed Technical Specifications
| Item | F Probe (Magnetic) | N Probe (Eddy Current) |
| Measuring Range | 0~1500μm | 0~1500μm (Copper plated grid 0~40m) |
| Working Principle | Magnetic Induction | Eddy Current |
| Resolution | 0.1μm(0~99μm), 1μm(>99μm) | 0.1μm(0~99μm), 1μm(>99μm) |
| Zero-point Calibration Accuracy | ±(3%H+1)μm | ±(3%H+1.5)μm |
| Two-point Calibration Accuracy | ±[(1~3)%H+1]μm | ±[(1~3)%H+1.5]μm |
| Minimum Curvature Radius | Convex 3mm | Convex 3mm |
| Minimum Test Area Diameter | Φ7mm | Φ7mm |
| Matrix Critical Thickness | 0.5mm | 0.3mm |
| Working Environment | Temperature: 0℃~40℃; Humidity: 20%Rh~90%Rh; No strong magnetic field | |
| Power Supply | 2*AA Alkaline batteries | |
| Weight & Dimension | 240g; 151×76×38mm | |
4.Conclusion
Developed and launched by Mikrosize, the iCoat-200 Coating Thickness Gauge inherits the brand’s consistent precision manufacturing standards and one-stop industrial testing solution philosophy. Its lightweight and portable design makes it easy to carry for on-site detection. With dual-probe dual-purpose, multi-mode switching, intelligent temperature compensation and multi-calibration functions, it solves the problems of single function, poor environmental adaptability and low accuracy of traditional thickness gauges. As a cost-effective flagship testing device of Mikrosize, it fully meets daily detection and batch quality inspection needs of various industrial coating scenarios, providing stable and accurate data support for global enterprise quality control.
