Coating Thickness Gauge Probe
Scan QR
Scan QR
（1）

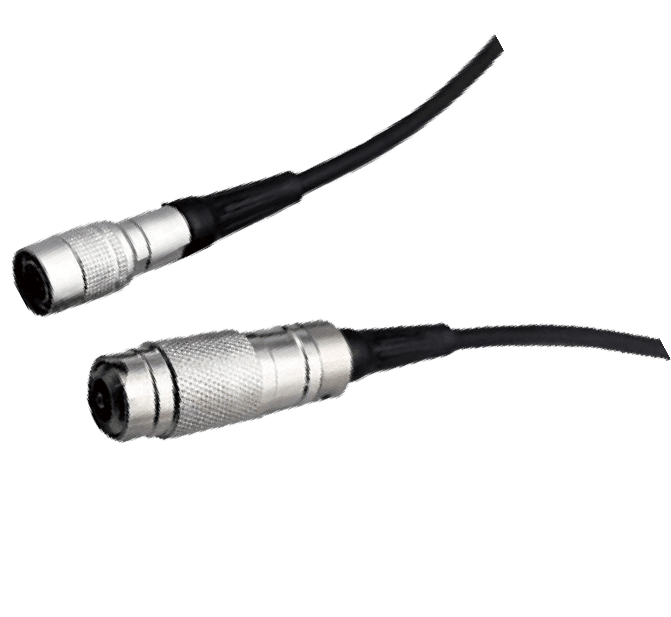

（2）

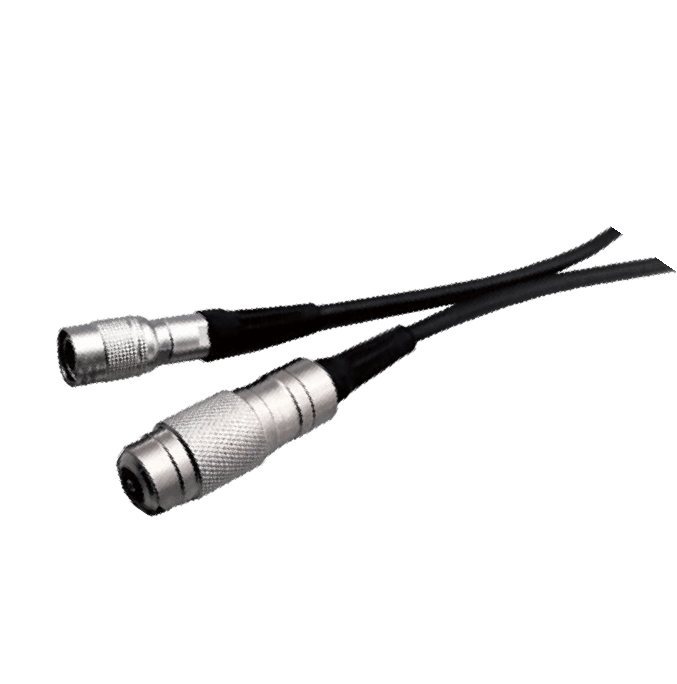

（3）

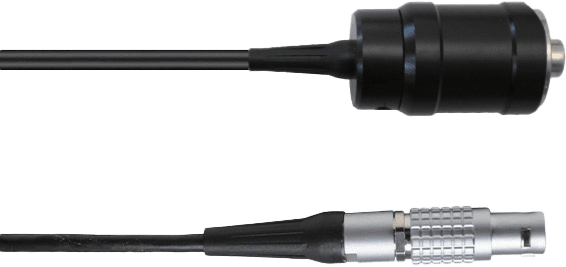

（4）

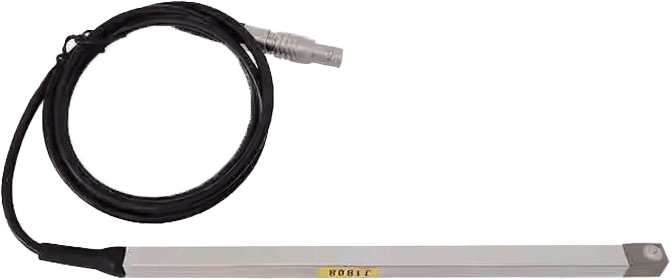

（5）
Coating Thickness Gauge Probe
 |
 |
 |
| F1 | F1/90° | F10 |
| Probe Model | F1 | F1/90° | F10 | ||
| Code | CTP01250F00 | CTP01250F90 | CTP10000F10 | ||
| Operating Principle | Magnetic | ||||
| Substrate Material | Magnetic Metal (Steel, Iron Etc.) | ||||
| Coating Material | Non-magnetic Coating(Aluminum, Chromium, Copper, Enamel, Rubber, Paint Etc.) | ||||
| Measuring Range (μm) | 0~1250 | 0~10000 | |||
| Low Range Resolution (μm) | 0.1 | 10 | |||
| Accuracy | One-Point Calibration (μm) | ±(3%H+1) | ±(3%H+10) | ||
| Two-Point Calibration (μm) | ±((1~3)%H+1) | ±((1~3)%H+10) | |||
| Measuring Conditions | Min Curvature Radius (mm) | 1.5 | Flatten | 10 | |
| Diameter of The Min Area (mm) | Φ7 | Φ7 | Φ40 | ||
| Critical Thickness of Substrate (mm) | 0.5 | 0.5 | 2 | ||
 |
| FN |
| Probe Model | FN | |
| Code | CTP01250FN0 | |
| Measuring Range (μm) | 0~1250 | |
| Low Range Resolution (μm) | 0.1 | |
| Accuracy | One-Point Calibration (μm) | ±(3%H+1) |
| Two-Point Calibration (μm) | ±((1~3)%H+1) | |
 |
| N1 |
| Probe Model | N1 | |
| Code | CTP01250N00 | |
| Operating Principle | Eddy Current | |
| Substrate Material | Non-magnetic Metal Substrate(Copper, Aluminum, Zinc, Tin Etc.) | |
| Coating Material | Non-conductive Coating (Enamel, Rubber, Paint, Plastic And Etc.) | |
| Measuring Range (μm) | 0~1250 | |
| Low Range Resolution (μm) | 0.1 | |
| Accuracy | One-Point Calibration (μm) | ±(3%H+1.5) |
| Two-Point Calibration (μm) | ±((1~3)%H+1.5) | |
| Measuring Conditions | Min Curvature Radius (mm) | 3 |
| Diameter of The Min Area (mm) | Φ5 | |
| Critical Thickness of Substrate(mm) | 0.3 | |
