iRock-150-45 Digital Full Rockwell Hardness Tester

Scan QR

×
Scan QR Code

https://mikrosize.com/product/irock-150-45-digital-full-rockwell-hardness-tester/

Irock 150 45 digital full rockwell hardness tester1

Irock 150 45 digital full rockwell hardness tester2

Irock 150 45 digital full rockwell hardness tester3 scaled

Irock 150 45 digital full rockwell hardness tester4 scaled

Irock 150 45 digital full rockwell hardness tester5 scaled

Irock 150 45 digital full rockwell hardness tester6

Irock 150 45 digital full rockwell hardness tester7

Product Features & Applications

Product Features：

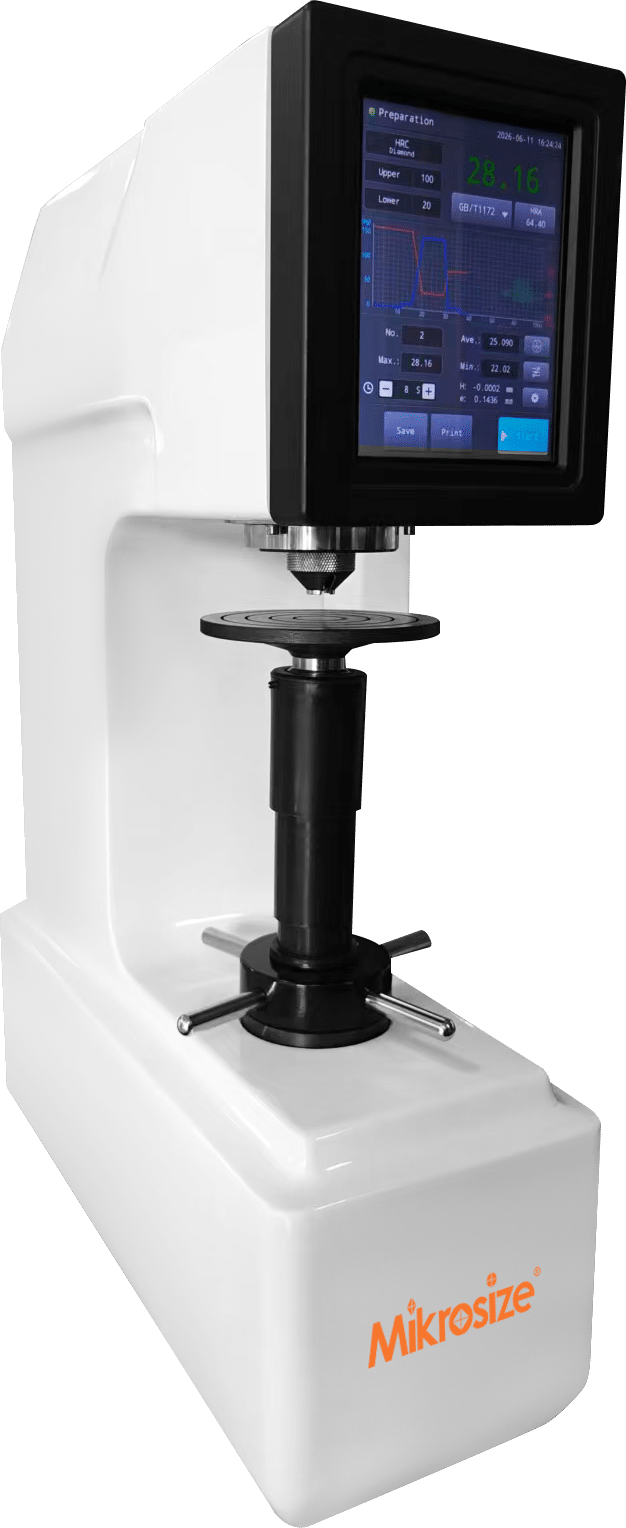

8-inch large touch screen, simple and convenient operation
Adopts sensor-based loading system to ensure accurate test force
Automatic loading, dwell and unloading of test force
Automatic loading, dwell and unloading of test force

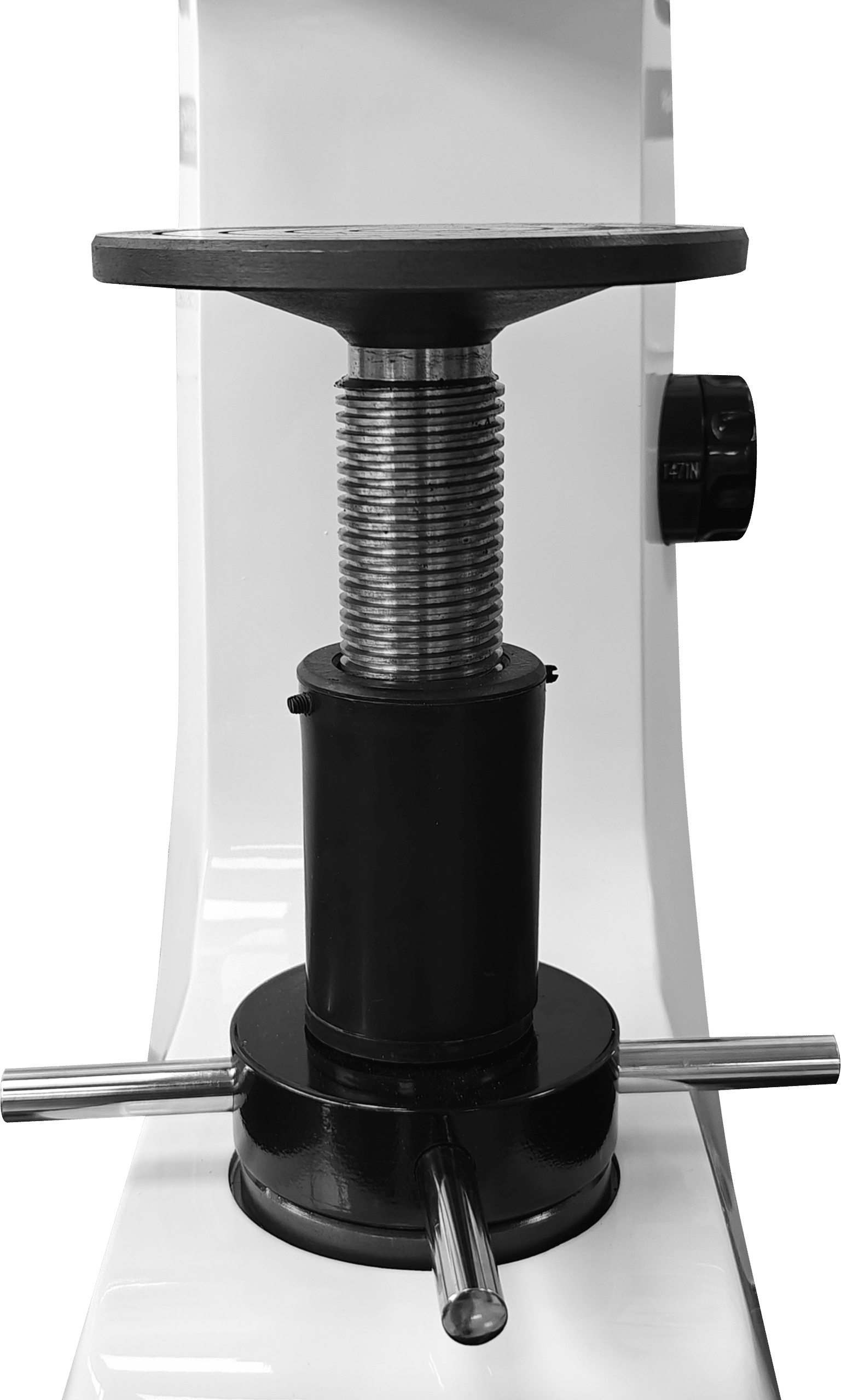

Screw lifting column for stable and smooth vertical movement

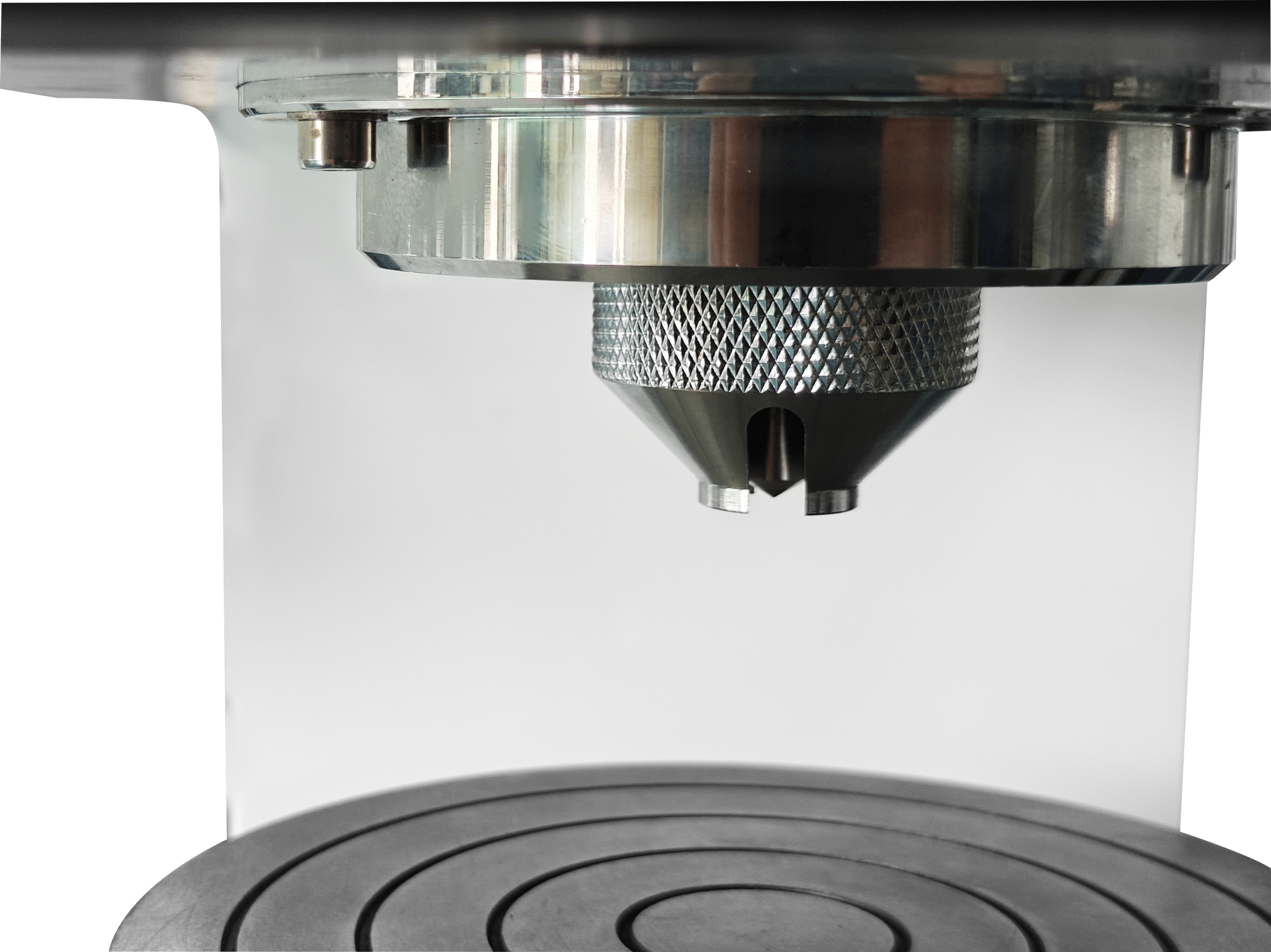

Standard equipped with diamond Rockwell indenter and φ1.5875mm steel ball indenter; manual quick replacement supported
Supports conventional Rockwell hardness scales HRA, HRB, HRC (other scales require optional matching indenters)
Built-in hardness scale conversion function

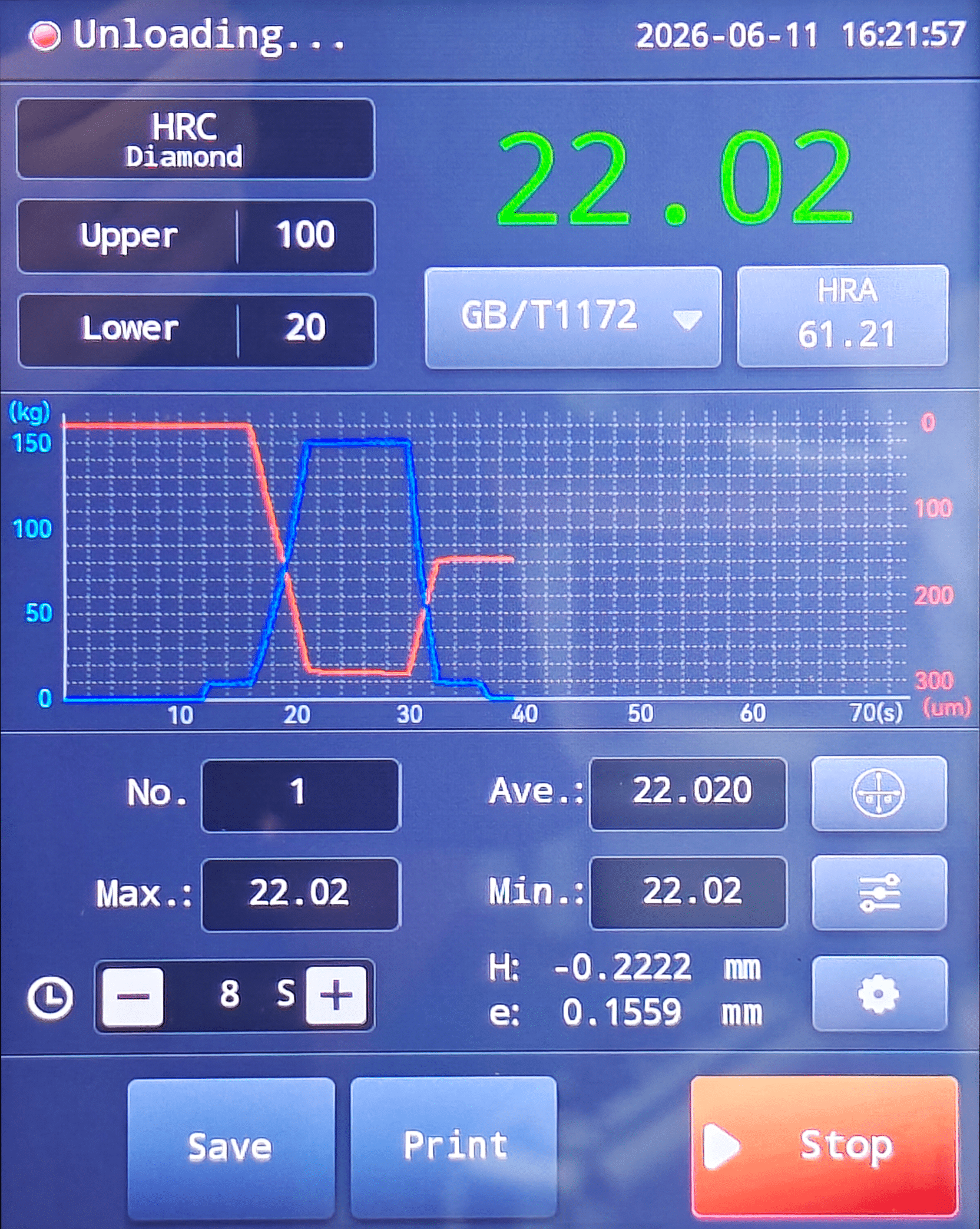

Real-time hardness change curve display
Automatic data statistics of test results, average value calculation
Hardness reading resolution: 0.1HR
Adjustable dwell time: 0~60s
Built-in thermal printer for instant test data output
USB and RS232 communication ports for test data export
Default English display; multi-language customization available
Max specimen height: 180mm (extension column optional); throat depth (distance from indenter center to machine wall): 150mm
Compliant standards: ISO 6508, ASTM E-18, JIS Z2245, GB/T 230

Product Applications：

Incoming inspection of metal materials

Used for hardness testing of raw materials such as steel, cast iron, non-ferrous metals and alloys to quickly determine whether the material meets production and procurement standards.

Quality control of heat-treated workpieces

Suitable for heat-treated parts such as quenched, tempered, annealed and normalized workpieces; online hardness monitoring to ensure the workpiece strength and wear resistance meet the standards.

Finished product delivery and sampling inspection

Conduct batch sampling inspection and delivery testing on finished products such as shafts, molds, gears, plates and hardware parts to ensure qualified and stable product performance.

Technical Specifications

Name	Digital Full Rockwell Hardness Tester
Model	iRock-150-45
Minor Test Force	3kgf（29.42N）；10kgf（98.07N）
Total Test Force	15kgf（147.1N）；30kgf（294.2N）；45kgf（441.3N） 60kgf（558.4N）；100kgf（980.7N）；150kgf（1471N）
Indenter Specifications	Diamond Rockwell Indenter; φ1.588mm Steel Ball Indenter
Test Force Application Mode	Automatic(Loading / Dwell / Unloading)
Hardness Reading	Digital Touch Screen Direct Reading

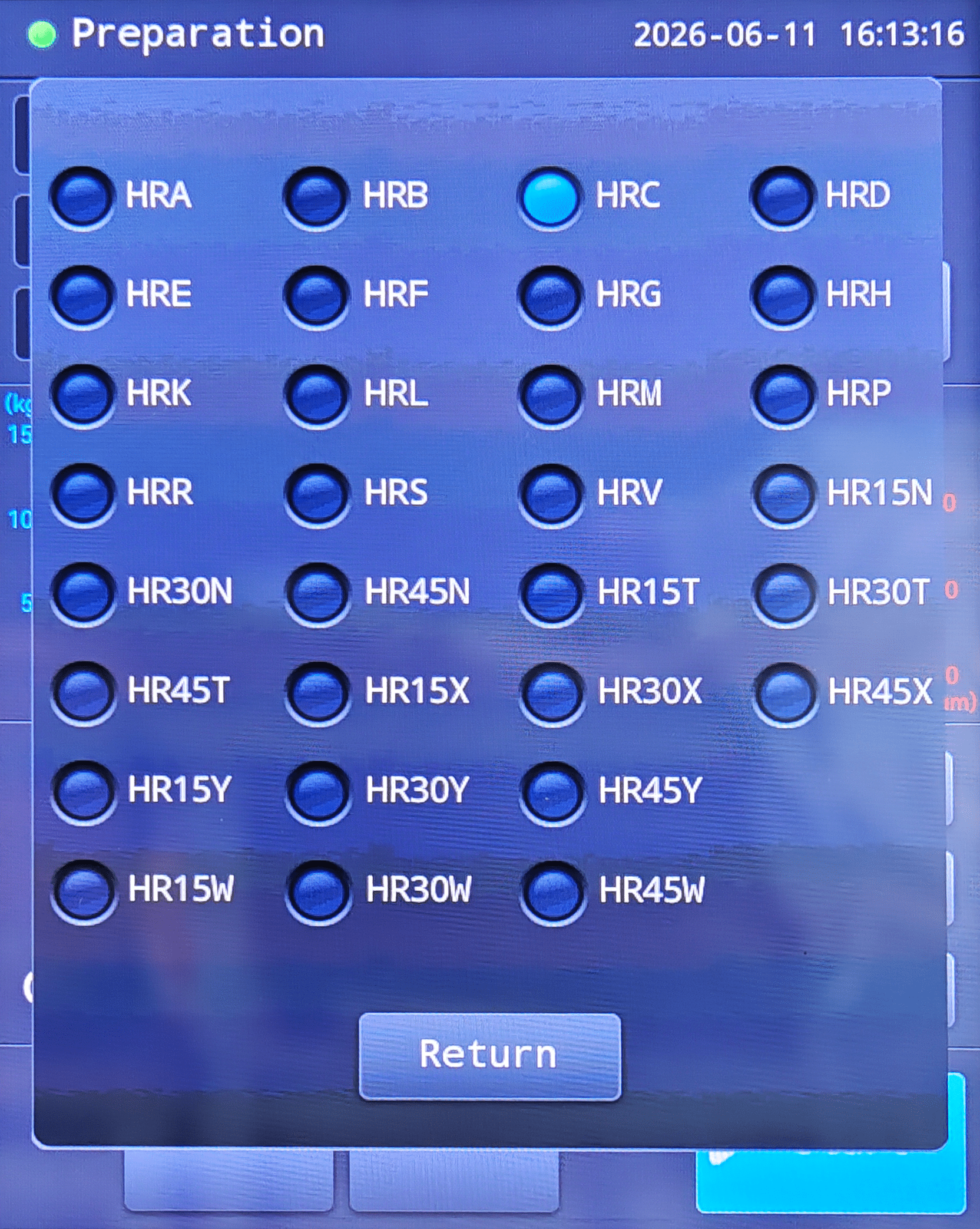

Measurable Scales	HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T、HR15X、HR30X、HR45X、HR15Y、HR30Y、HR45Y、HR15W、HR30W、HR45W
Convertible Scales	HRA、HRB、HRC、HRD、HRF、HR15T、HR30T、HR45T、HR15N、HR30N、HR45N、HV、HK、HB
Data Output	Built-in Printer
Resolution	0.1HR
Dwell Time	0~99s
Max Specimen Height	180mm
Throat Depth (Indenter Center to Machine Frame)	150mm
Power	AC220V，50Hz
Compliant Standards	ISO 6085；ASTM E-18；JIS Z2245；GB/T 230.2
Dimension	510290730mm
Net Weight	95kg

Standard Configuration

Name	Quantity	Photo
Mainframe	1

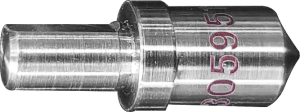

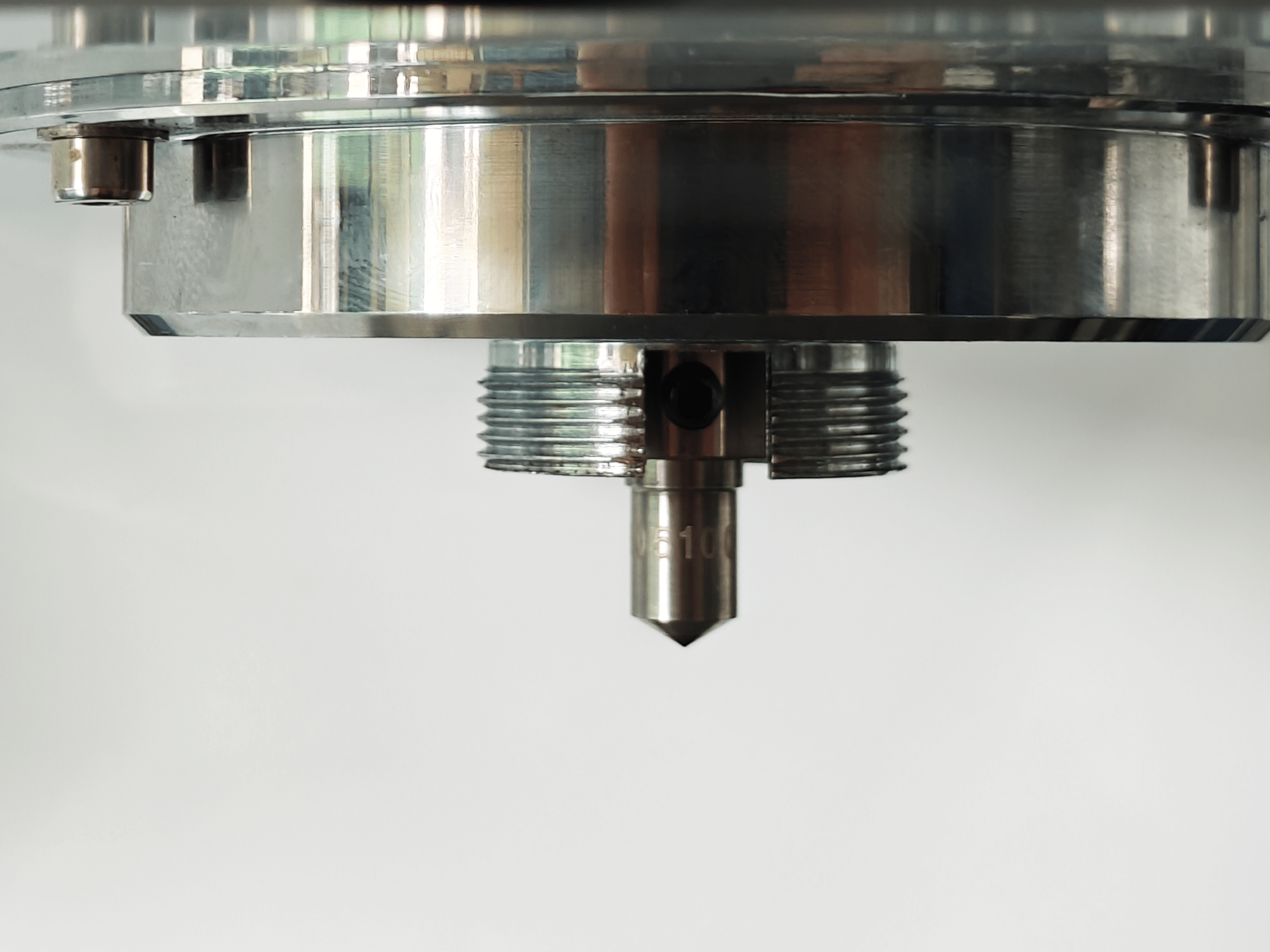

Diamond Rockwell Indenter	1
φ1.588mm Steel Ball Indenter	1

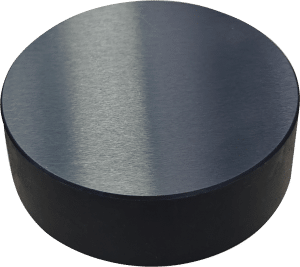

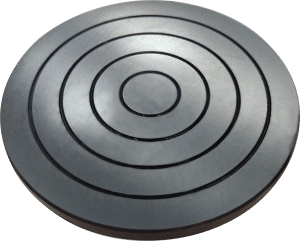

φ150mm Test Table	1
φ75mm Test Table	1

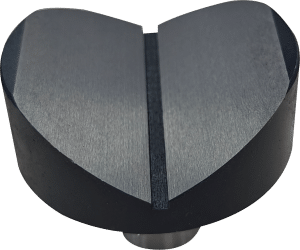

φ75mm V-Anvil Test Table	1

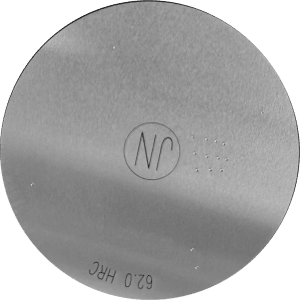

Standard Hardness Block 60~70 HRC	1

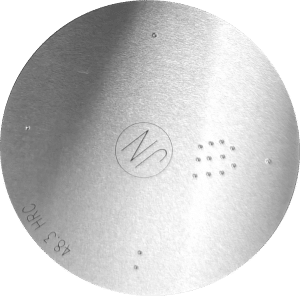

Standard Hardness Block 40~50 HRC	1

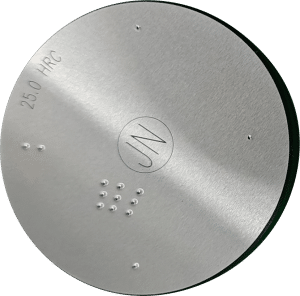

Standard Hardness Block 20~30 HRC	1

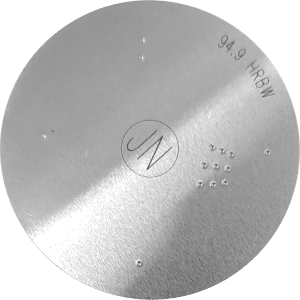

Standard Hardness Block 80~100 HRB	1

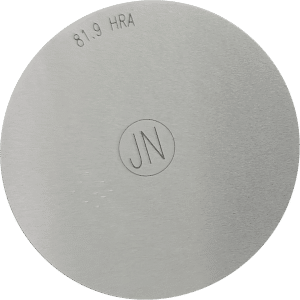

Standard Hardness Block 80~88 HRA	1

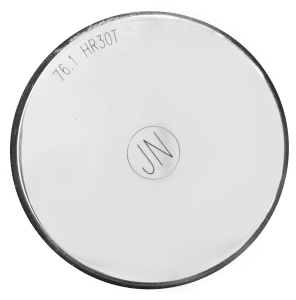

Standard Hardness Block 70~85 HR30T	1
Standard Hardness Block 65~80 HR30N	1

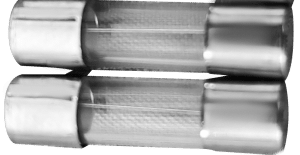

Fuse	2

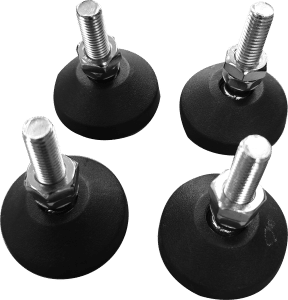

Level Adjustment Screws	4
Power Cord	1

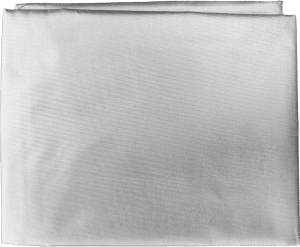

Dust Cover	1
Operation Manual	1
Product Certificate	1
Warranty Card	1
