iThick-E20 Electromagnetic Ultrasonic Thickness Gauge
Scan QR
Scan QR
iThick-E20 Electromagnetic Ultrasonic Thickness Gauge（1）

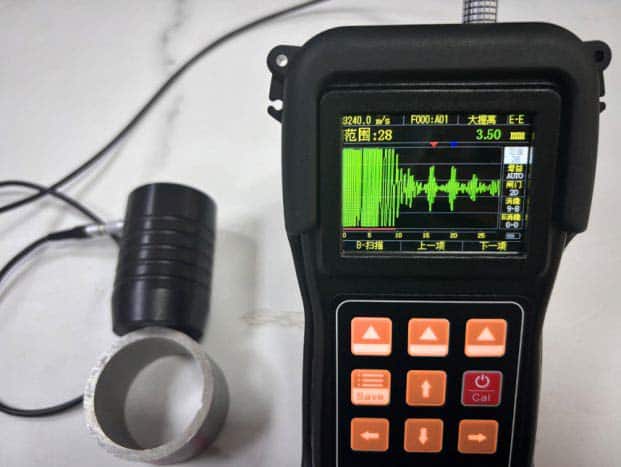

iThick-E20 Electromagnetic Ultrasonic Thickness Gauge（2）

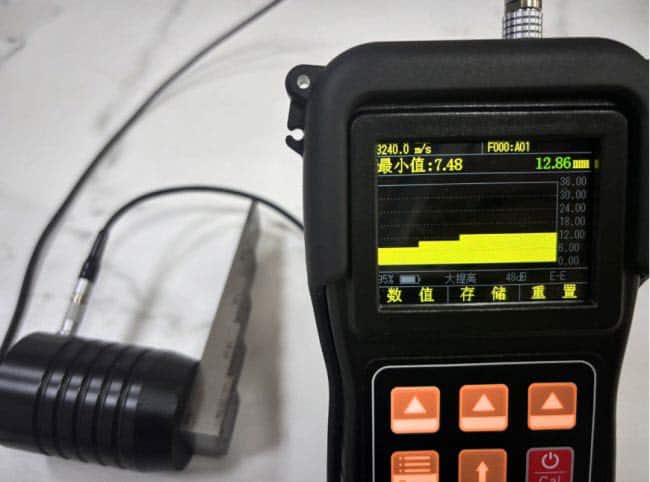

iThick-E20 Electromagnetic Ultrasonic Thickness Gauge（3）

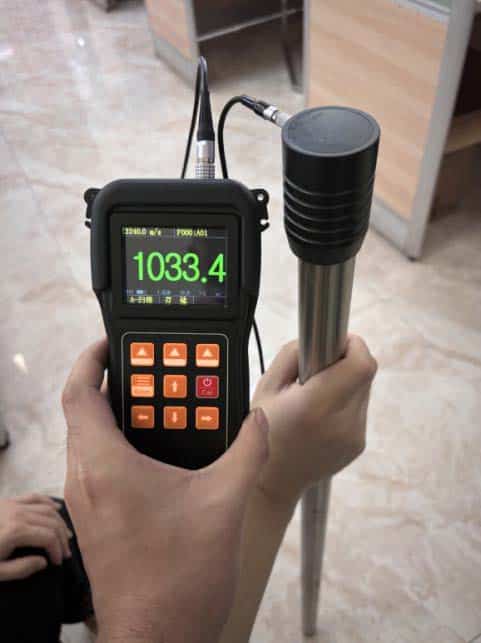

iThick-E20 Electromagnetic Ultrasonic Thickness Gauge（4）

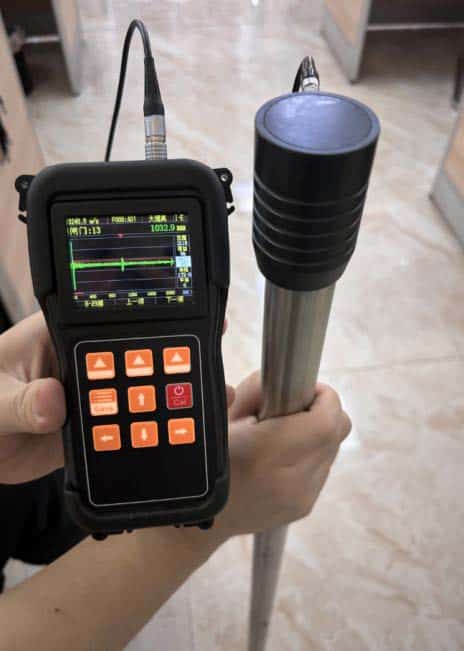

iThick-E20 Electromagnetic Ultrasonic Thickness Gauge（5）
iThick-E20 Electromagnetic Ultrasonic Thickness Gauge（6）
Video Demonstration
Product Features & Applications
Product Features：
- Easy to carry.
- The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.
- It is insensitive to the coating and can realize the thickness measurement of coated workpieces or corroded metal pipe.
- Without acoustic coupling agent, it can realize the thickness measurement of high-temperature workpiece.
Technical Specifications
| Sampling | 100MSPS |
| Bandwidth | 1~10 MHz |
| Gain | 96dB, with a step of 1dB |
| Transmit Voltage | ±600V, non-adjustable |
| Transmit Pulse Width | 25~300 ns, with a step of 5ns |
| Transmit Frequency | 100~1000 Hz, with a step of 100Hz |
| Measurement Accuracy | ±0.01 mm |
| Range of Sound Velocity | 400~9999 m/s |
| Effective Measuring Range | 1.0~2000 mm |
| Average Level | Low, Medium, High |
| Lift-off Distance | 6mm (Aluminum), 5mm (Carbon Steel), 4mm (Stainless Steel) |
| Measurement Range | (for Carbon Steel) 1X: 125mm, 2X: 500mm, 3X: 2000mm |
| Measurement Type | Metallic materials such as Aluminum, Copper, Iron, Carbon Steel, Cast Steel, Alloy Steel, Stainless Steel, Titanium Alloy, etc. |
| Measurement Channel | Thin Material, Standard, Thick Material |
| View Mode | Normal, Difference, Max/Min Capture |
| Measurement Mode | Single Echo (I-E), Dual Echo (E-E) |
| Search Mode | Leading Edge-Leading Edge, Peak-Peak, Peak-Leading Edge |
| Rectification Mode | RF, Inverted RF, Full Wave, Envelope, Negative Half Wave, Positive Half Wave |
| Data Storage | Can save 520 files, each file can record 252 sets of thickness values, totaling 130,000 sets |
| Auxiliary Functions | Automatic Freeze, Automatic Gain, Automatic Sleep, A-Scan, Thickness B-Scan, Digital Filtering, Automatic Range, Waveform Fill, Waveform Shift, Suppression Adjustment, Backlight Adjustment, Buzzer |
| Correction Function | Gate Adjustment, Blanking Adjustment, Gain Adjustment, Sound Velocity Calibration, Zero Calibration, High Temperature Compensation |
| Unit | Metric, Imperial |
| Language | Simplified Chinese, English |
| Communication | Full-speed USB 2,0 |
| Charger | 5V2A, Standard MINI-USB Connector |
| Display Screen | HD 2.4-inch 320X240 IPS LCD |
| Probe Interface | LEMO-0B 2P |
| Weight | 250g, excluding battery |
| Body Dimensions | 153mm × 76mm × 37mm |
| Battery Life | Two 3.7V 1000mAh lithium-ion batteries, up to 5 hours of continuous use |
Standard Configuration
| Name | Qty | |
| Main Unit | 1 PC | |
| Room Temperature Probe | 1 PC | 4MHz, Φ30mm*40mm |
| Charging Data Cable | 1 PC | |
| Charging Plug | 1 PC | |
| Instruction Manual | 1 Copy | |
| Iron-based Test Block | 1 PC | |
| Aluminum-based Test Block | 1 PC | |
| Instrument Case | 1 PC |
Optional Configuration
| High-temperature Probe | 1 PC | 4MHz, Φ42mm*57mm |
| Room Temperature Probe for Small Diameter Pipes | 1 PC | 4MHz, Φ13mm*36mm |
| Room Temperature Probe for Large Diameter Pipes | 1 PC | 4MHz, Φ40mm*60mm |
| High-temperature Probe |   |
|
| Room Temperature Probe for small Diameter Pipes |   |
|
| Room Temperature Probe for large Diameter Pipes |   |
|
