Ultrasonic Flaw Detector Probe
Scan QR
Scan QR

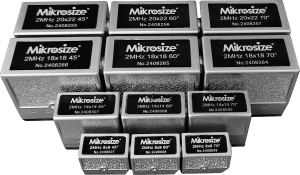

1.Angle Probe 2MHz

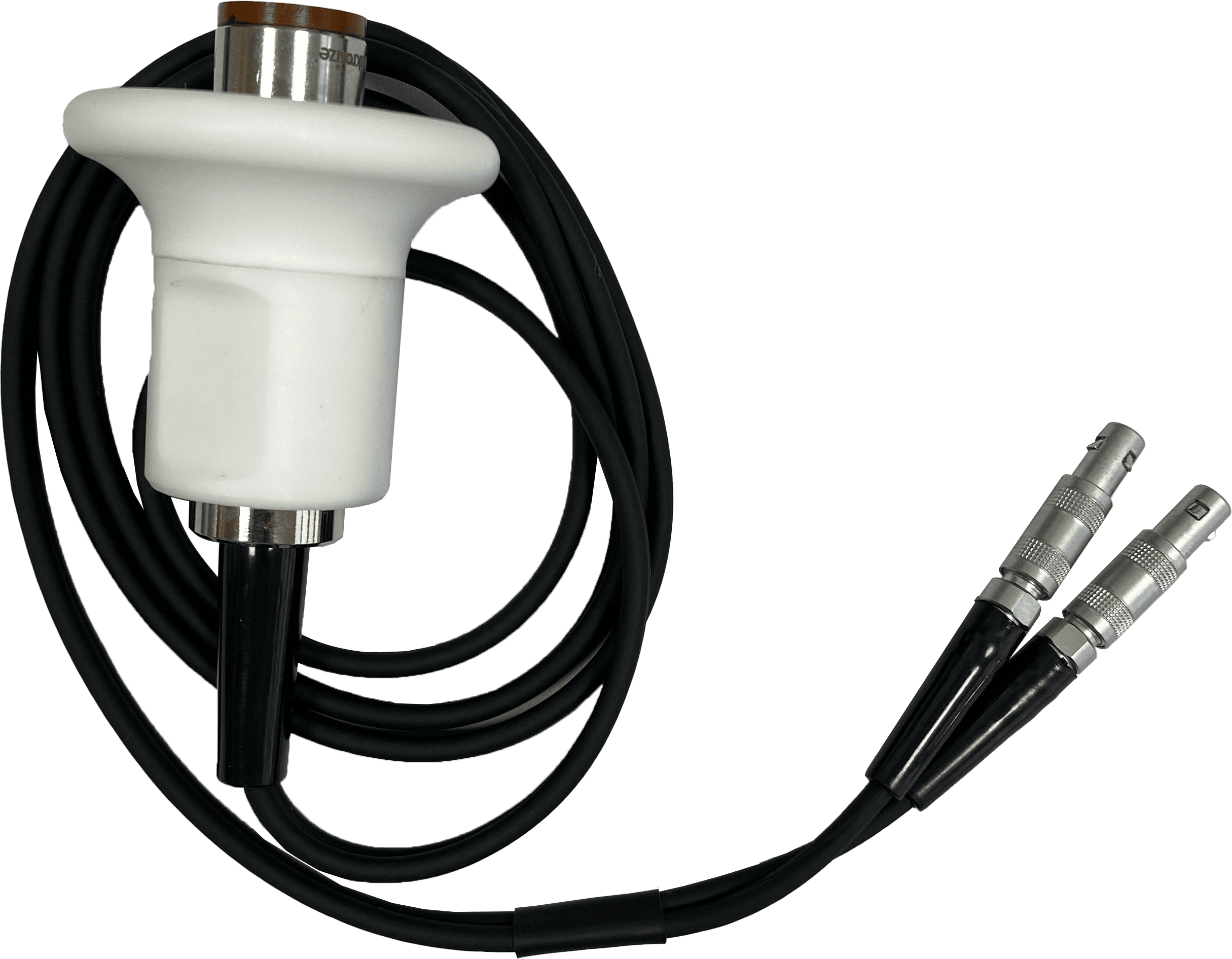

High Temperature Thickness Probe GT 12

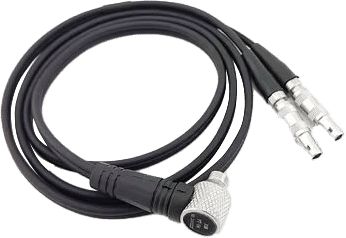

Thickness Gauge Probe 10MHz Φ4

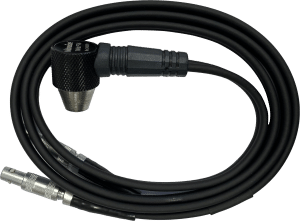

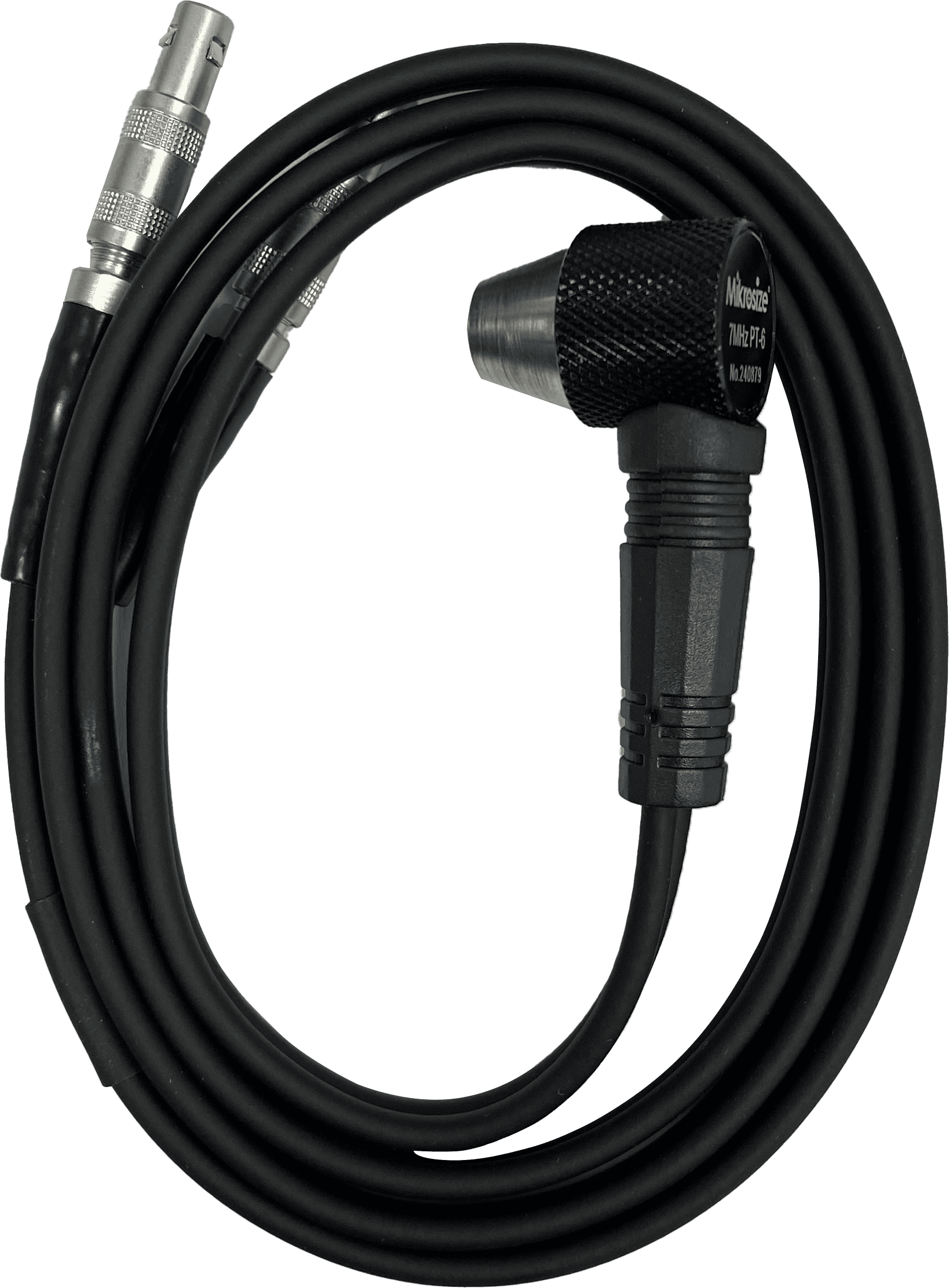

Thickness Gauge Probe 7MHz Φ6

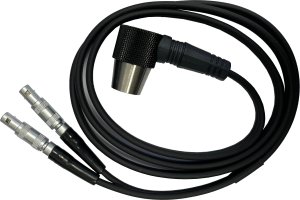

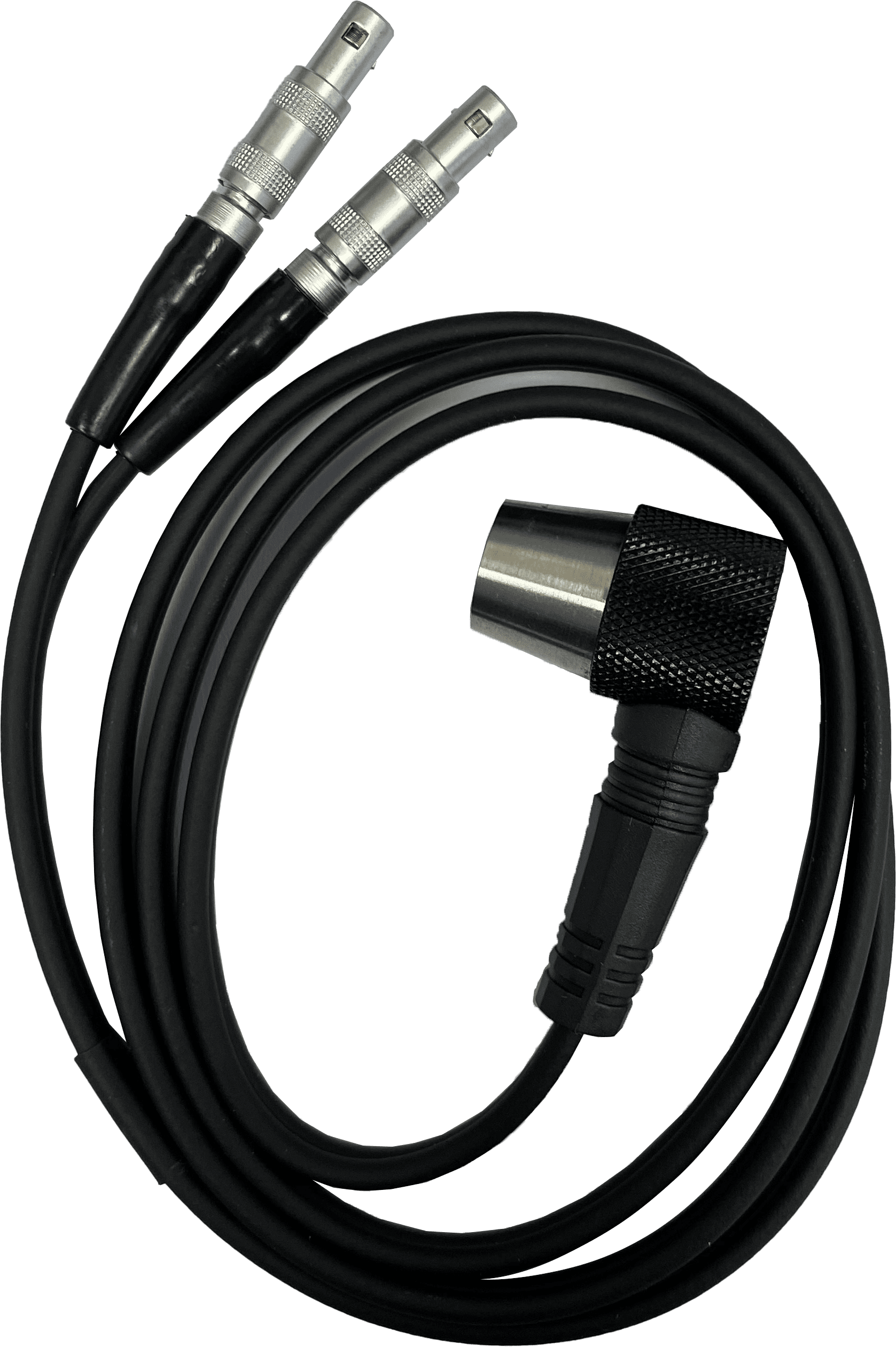

Thickness Gauge Probe 5MHz Φ10

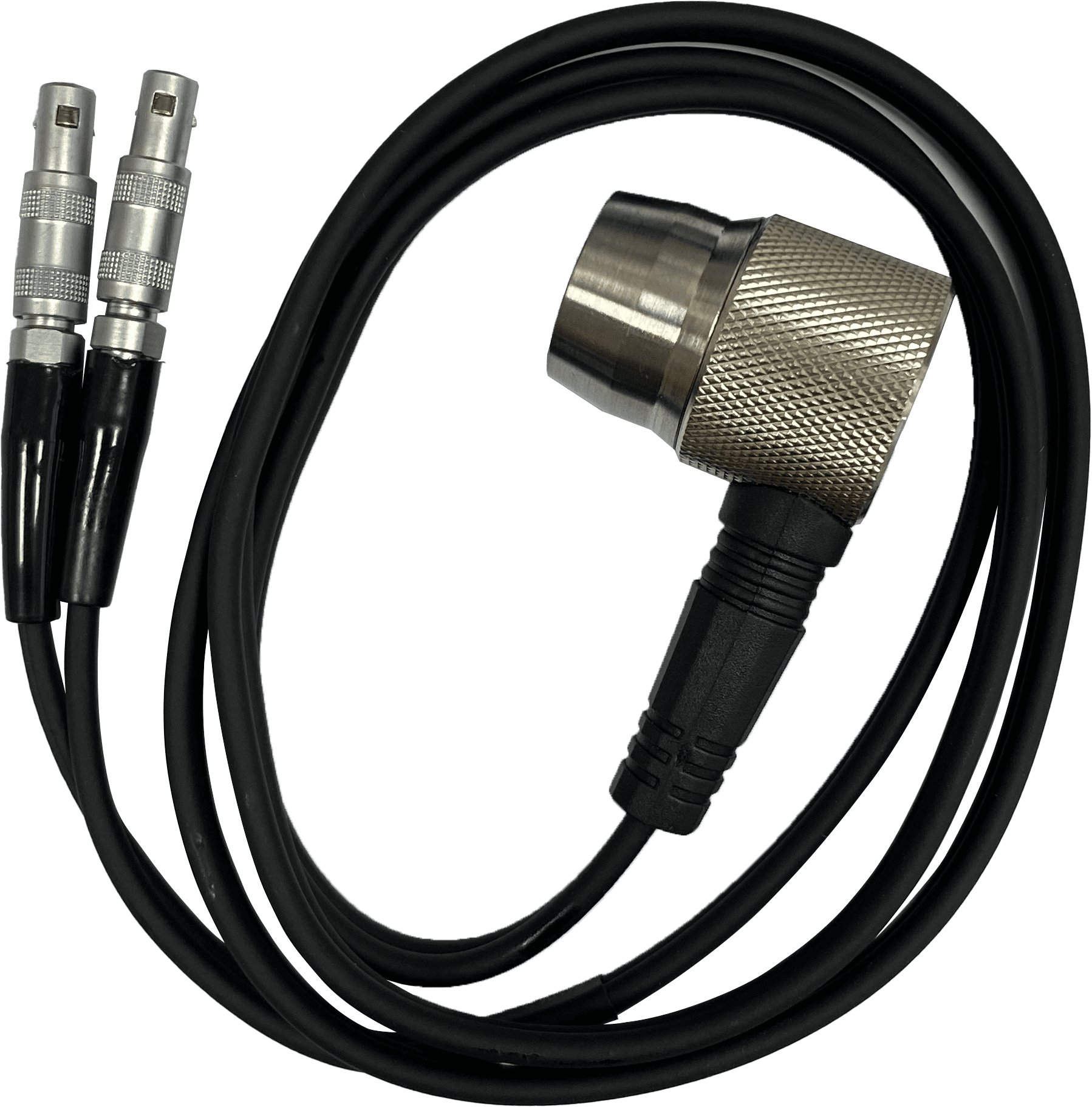

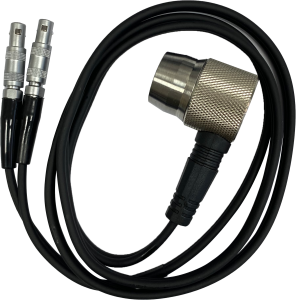

Thickness Gauge Probe 2MHz ZT 12

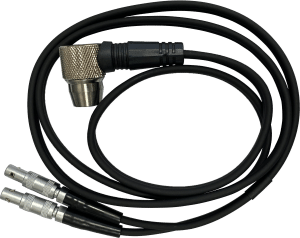

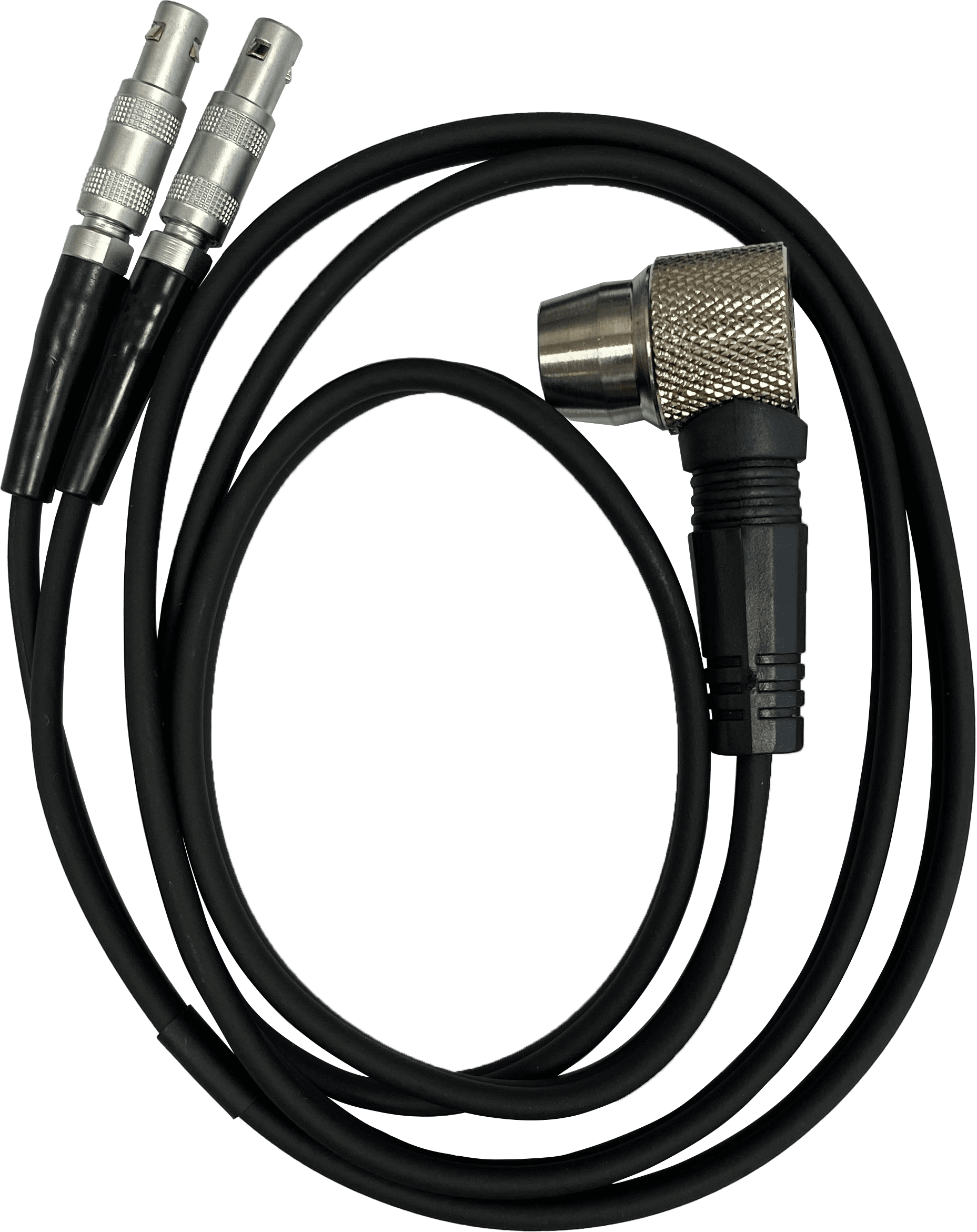

Thickness Gauge Probe 5MHz Φ8 1

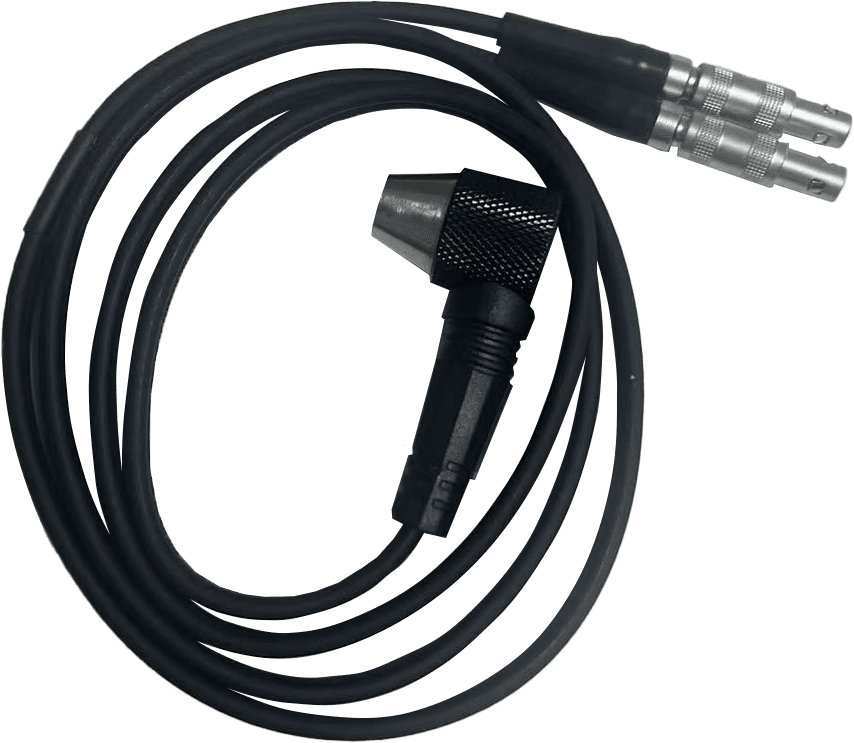

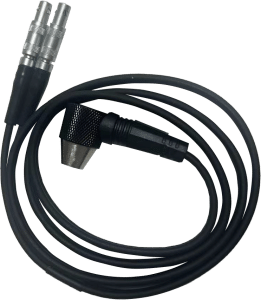

Thickness Gauge Probe 5MHz Φ6

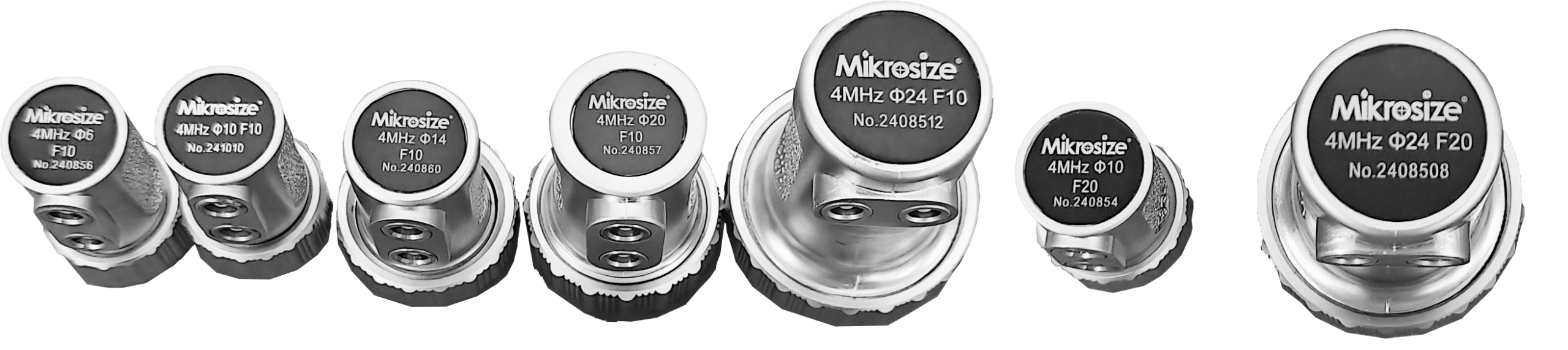

8.Double crystal Normal Probe 4MHz scaled

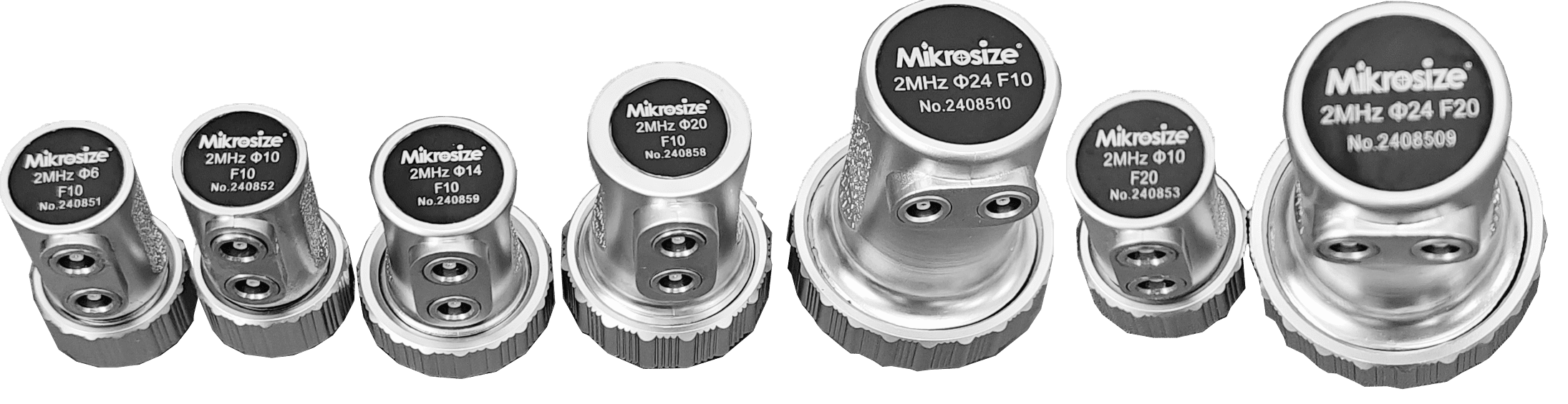

7.Double crystal Normal Probe 2MHz F10、F20

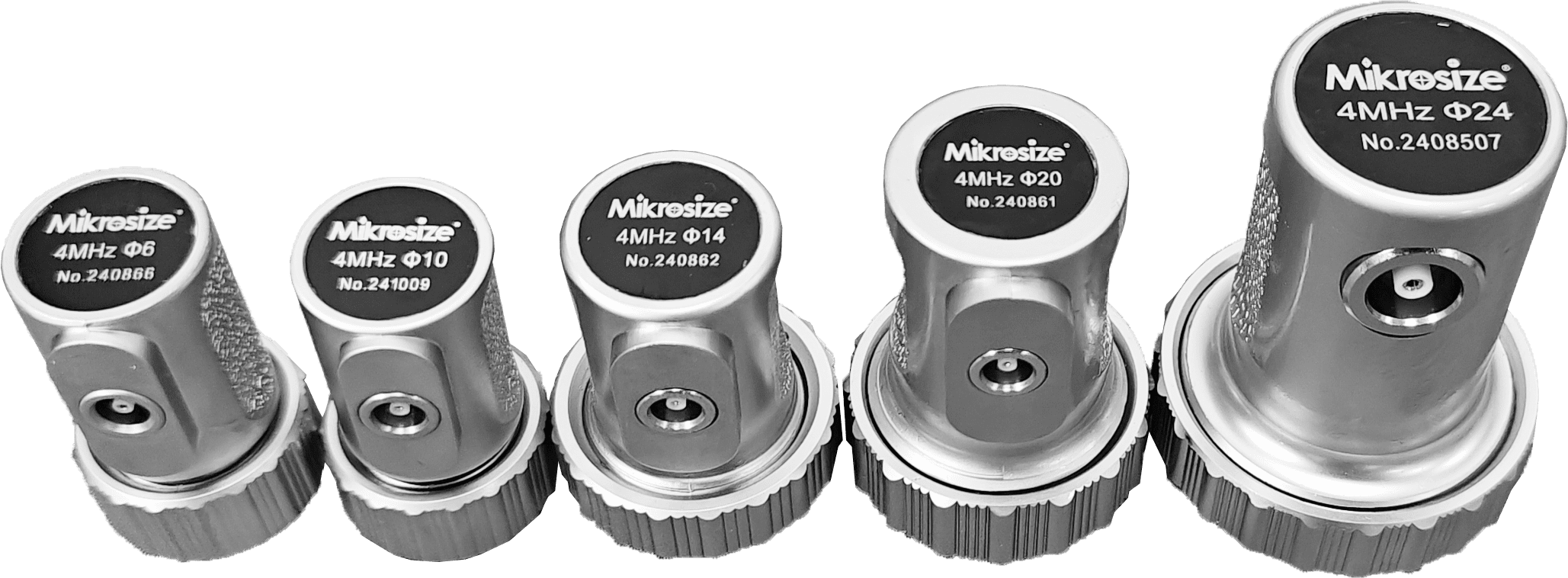

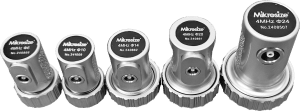

6.Normal Straight Probe 4MHz

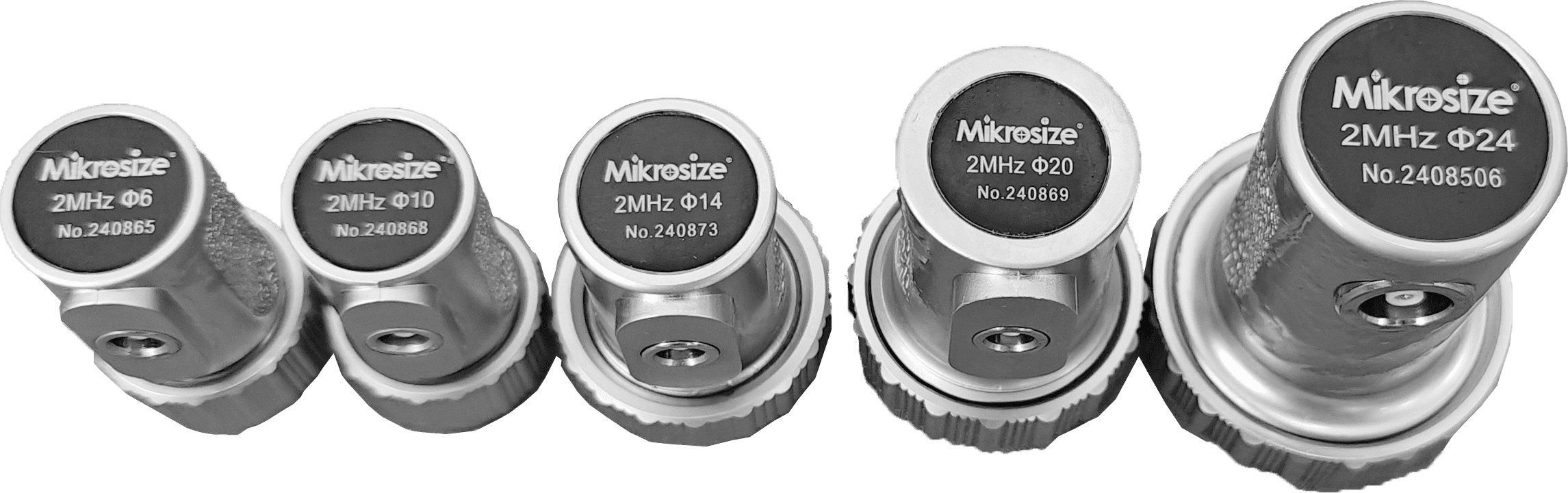

5.Normal Straight Probe 2MHz

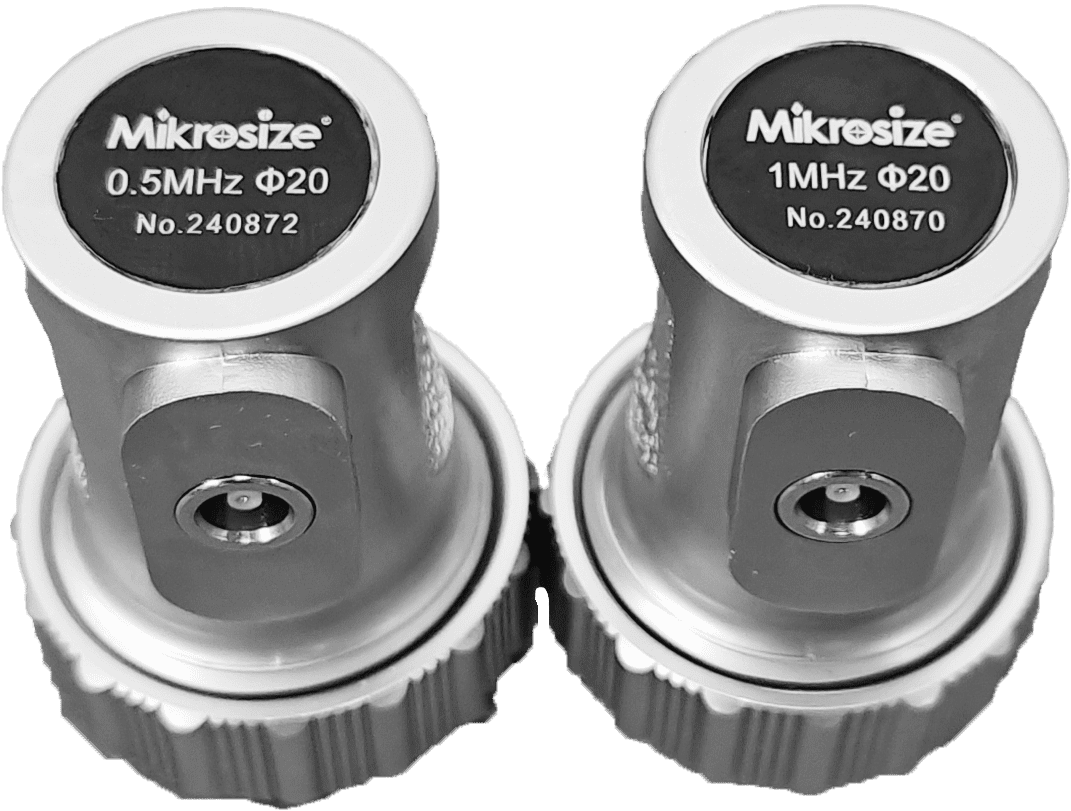

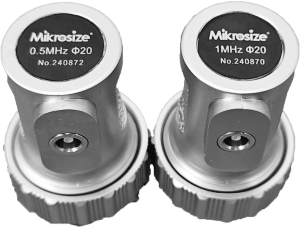

4.Normal Straight Probe Φ20 0.5MHz、1MHz

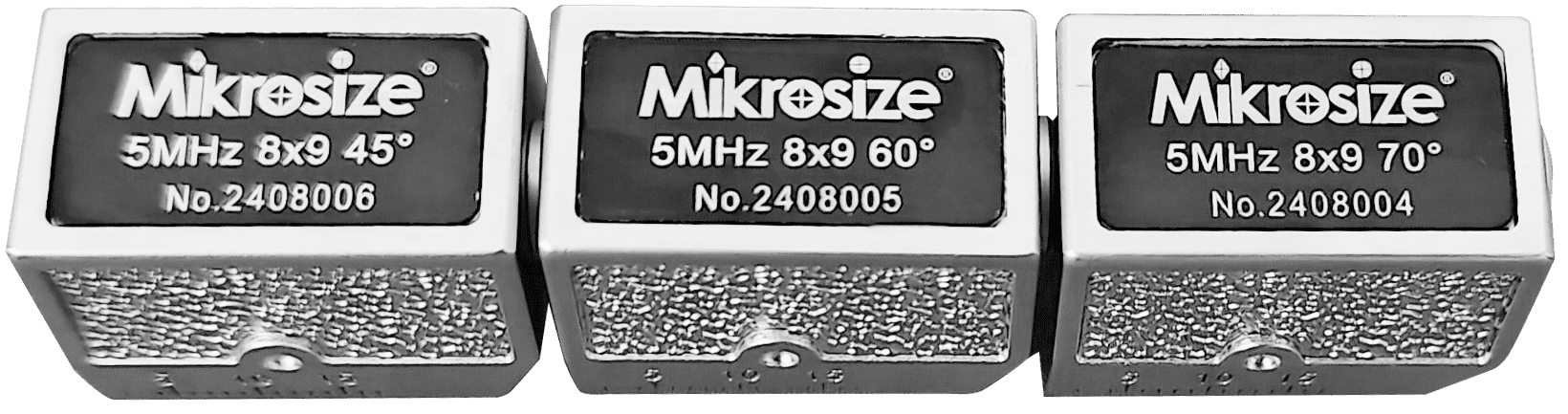

3.Angle Probe 5MHz

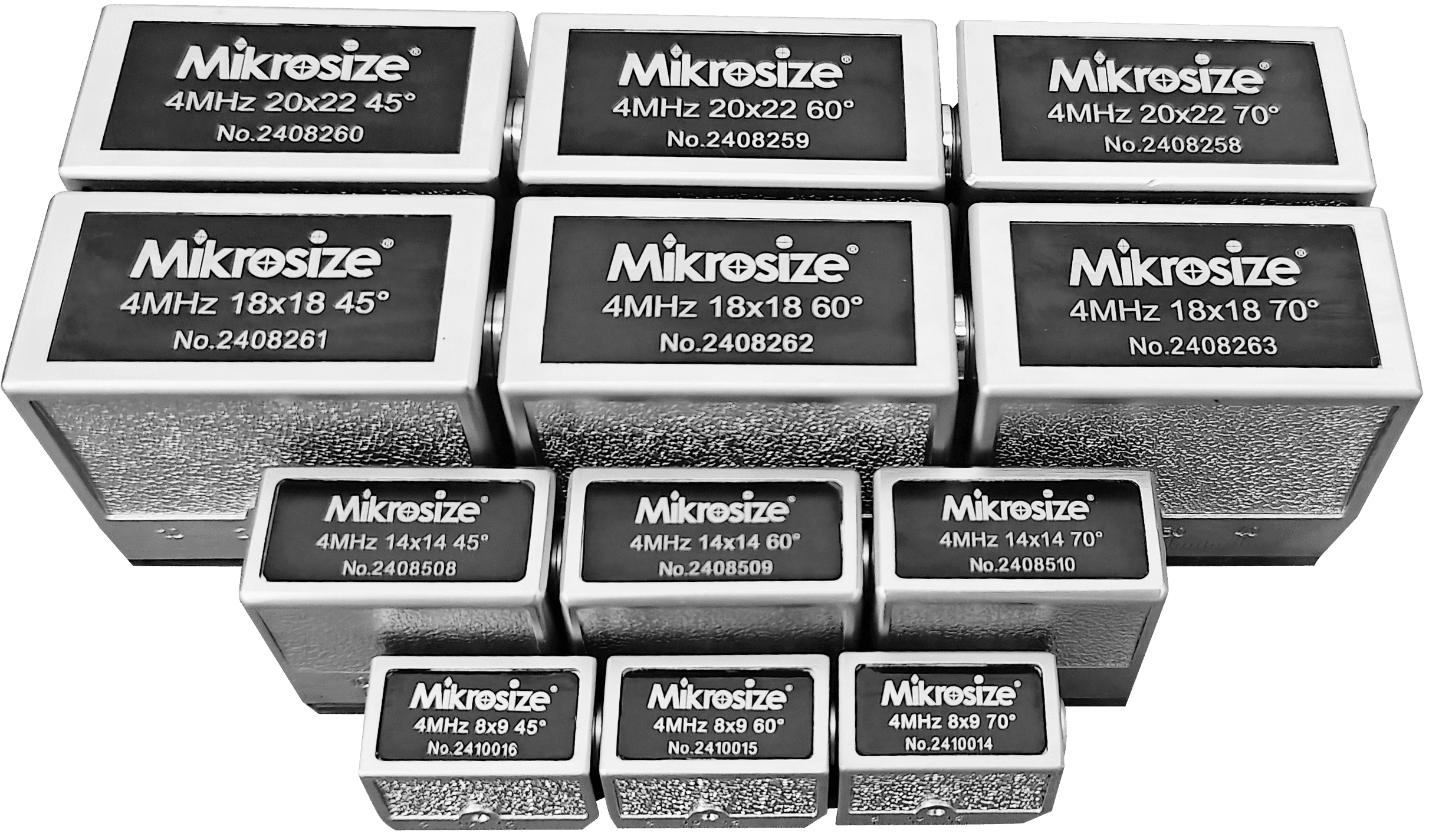

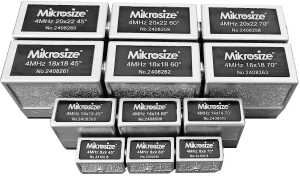

2.Angle Probe 4MHz
Technical Specifications
Angle Probe
| Frequency | 2MHz | |||||||||||
| Crystal Size (mm) | 8x9 | 14x14 | 18x18 | 20x22 | ||||||||
| Angle | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° |
| Wave Freq.Errors | ≤ 10% | |||||||||||
| Surplus Sensitivity(dB) | ≥ 70 | ≥ 68 | ≥ 64 | ≥ 70 | ≥ 66 | ≥ 62 | ≥ 72 | ≥ 70 | ≥ 64 | ≥ 72 | ≥ 68 | ≥ 66 |
| Initial Wave of Wide(mm) | ≤ 22 | ≤ 22 | ≤ 21 | ≤ 22 | ≤ 22 | ≤ 21 | ≤ 22 | ≤ 22 | ≤ 22 | ≤ 22 | ≤ 22 | ≤ 22 |
| Resolution(dB) | ≥ 34 | ≥ 32 | ≥ 32 | ≥ 32 | ≥30 | ≥ 30 | ≥ 34 | ≥ 32 | ≥ 32 | ≥ 34 | ≥ 32 | ≥ 28 |
| Beam Deflection | ≤ ±1° | |||||||||||
| Forefront Distance(mm) | ≤ 11.5 | ≤ 12.5 | ≤ 21 | ≤ 22 | ≤ 18.5 | ≤ 21 | ≤ 20.5 | ≤ 19.5 | ||||
| Measured K Value | ±0.5° | |||||||||||
| Standard | EN12668-2 | |||||||||||
Angle Probe
| Frequency | 4MHz | |||||||||||
| Crystal Size (mm) | 8x9 | 14x14 | 18x18 | 20x22 | ||||||||
| Angle | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° |
| Wave Freq.Errors | ≤ 10% | |||||||||||
| Surplus Sensitivity(dB) | ≥ 64 | ≥ 66 | ≥ 64 | ≥ 67 | ≥ 66 | ≥ 64 | ≥ 64 | ≥ 64 | ≥ 60 | ≥ 64 | ≥ 64 | ≥ 60 |
| Initial Wave of Wide(mm) | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 12 | ≤ 14 | ≤ 14 | ≤ 12 | ≤ 14 | ≤ 14 |
| Resolution(dB) | ≥ 32 | ≥ 35 | ≥ 32 | ≥ 34 | ≥32 | ≥ 32 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 |
| Beam Deflection | ≤ ±1° | |||||||||||
| Forefront Distance(mm) | ≤ 11.5 | ≤ 13 | ≤ 12 | ≤ 12 | ≤ 25 | ≤ 23 | ≤ 23 | ≤ 25 | ≤ 23 | ≤ 23 | ||
| Measured K Value | ±0.5° | |||||||||||
| Standard | EN12668-2 | |||||||||||
Angle Probe
| Frequency | 5MHz | ||
| Crystal Size (mm) | 8x9 | ||
| Angle | 45° | 60° | 70° |
| Wave Freq.Errors | ≤ 10% | ||
| Surplus Sensitivity(dB) | ≥ 68 | ≥ 66 | ≥ 62 |
| Initial Wave of Wide(mm) | ≤ 12 | ≤ 12 | ≤ 12 |
| Resolution(dB) | ≥ 32 | ≥ 32 | ≥ 32 |
| Beam Deflection | ≤ ±1° | ||
| Forefront Distance(mm) | ≤ 11.5 | ||
| Measured K Value | ±0.5° | ||
| Standard | EN12668-2 | ||
Normal Straight Probe
| Frequency | 0.5MHz | 1MHz | |
| Crystal Size (mm) | Φ20 | ||
| Wave Freq.Errors | ≤ 10% | ||
| Surplus Sensitivity(dB) | ≥ 32 | ≥ 38 | |
| Initial Wave of Wide(mm) | ≤ 30 | ≤ 26 | |
| Resolution(dB) | ≥ 28 | ≥ 22 | |
| Beam Deflection | ≤ ±1° | ||
| Standard | EN12668-2 | ||
Normal Straight Probe
| Frequency | 2MHz | ||||
| Crystal Size (mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 |
| Wave Freq.Errors | ≤ 10% | ||||
| Surplus Sensitivity(dB) | ≥ 18 | ≥ 34 | ≥ 44 | ≥ 54 | ≥ 54 |
| Initial Wave of Wide(mm) | ≤ 21 | ≤ 21 | ≤ 21 | ≤ 21 | ≤ 21 |
| Resolution(dB) | ≥ 18 | ≥ 18 | ≥ 22 | ≥ 26 | ≥ 26 |
| Beam Deflection | ≤ ±1° | ||||
| Standard | EN12668-2 | ||||
Normal Straight Probe
| Frequency | 4MHz | ||||
| Crystal Size (mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 |
| Wave Freq.Errors | ≤ 10% | ||||
| Surplus Sensitivity(dB) | ≥ 26 | ≥ 42 | ≥ 50 | ≥ 54 | ≥ 56 |
| Initial Wave of Wide(mm) | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 |
| Resolution(dB) | ≥ 26 | ≥ 26 | ≥ 28 | ≥ 26 | ≥ 30 |
| Beam Deflection | ≤ ±1° | ||||
| Standard | EN12668-2 | ||||
Double-crystal Normal Probe
| Frequency | 2MHz | ||||||
| Crystal Size (mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 | Φ10 | Φ24 |
| Focus Distance | 10mm | 20mm | |||||
| Wave Freq.Errors | ≤ 10% | ||||||
| Surplus Sensitivity(dB) | ≥ 42 | ≥ 60 | ≥ 60 | ≥ 64 | ≥ 66 | ≥ 54 | ≥ 64 |
| Initial Wave of Wide(mm) | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 |
| Resolution(dB) | ≥ 26 | ≥ 32 | ≥ 28 | ≥ 32 | ≥ 30 | ≥ 32 | ≥ 32 |
| Beam Deflection | ≤ ±1° | ||||||
| Standard | EN12668-2 | ||||||
Double-crystal Normal Probe
| Frequency | 4MHz | ||||||
| Crystal Size (mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 | Φ10 | Φ24 |
| Focus Distance | 10mm | 20mm | |||||
| Wave Freq.Errors | ≤ 10% | ||||||
| Surplus Sensitivity(dB) | ≥ 40 | ≥ 58 | ≥ 56 | ≥ 60 | ≥ 60 | ≥ 56 | ≥ 60 |
| Initial Wave of Wide(mm) | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 |
| Resolution(dB) | ≥ 32 | ≥ 32 | ≥ 32 | ≥ 34 | ≥ 32 | ≥ 32 | ≥ 34 |
| Beam Deflection | ≤ ±1° | ||||||
| Standard | EN12668-2 | ||||||
Ultrasonic Flaw Detector Probe
 |  |  |  |
| TP0212200 | TP0506060 | TP0508225 | TP0510250 |
 |  |  | |
| TP0706060 | TP1004030 | HTP0510250 HTP0510350 HTP0510500 |
| Code | Thickness Measurement Range | Crystal Diameter | Frequency | Operating Temperature |
| TP0212200 | 1-200mm | Φ12mm | 2MHz | -10℃~60℃ |
| TP0506060 | 1-60mm | Φ6mm | 5MHz | -10℃~60℃ |
| TP0508225 | 1-225mm | Φ10mm | 5MHz | -10℃~60℃ |
| TP0510250 | 1-250mm | Φ10mm | 5MHz | -10℃~60℃ |
| TP0706060 | 0.8-60mm | Φ6mm | 7MHz | -10℃~60℃ |
| TP1004030 | 0.75-30mm | Φ4mm | 10MHz | -10℃~60℃ |
| HTP0510250 | 2-220mm | Φ10mm | 5MHz | -10℃~250℃ |
| HTP0510350 | 2-220mm | Φ10mm | 5MHz | -10℃~350℃ |
| HTP0510500 | 2-220mm | Φ10mm | 5MHz | -10℃~500℃ |
